Antilock Brake System Schematics
>>
Stability Control
Stability Control

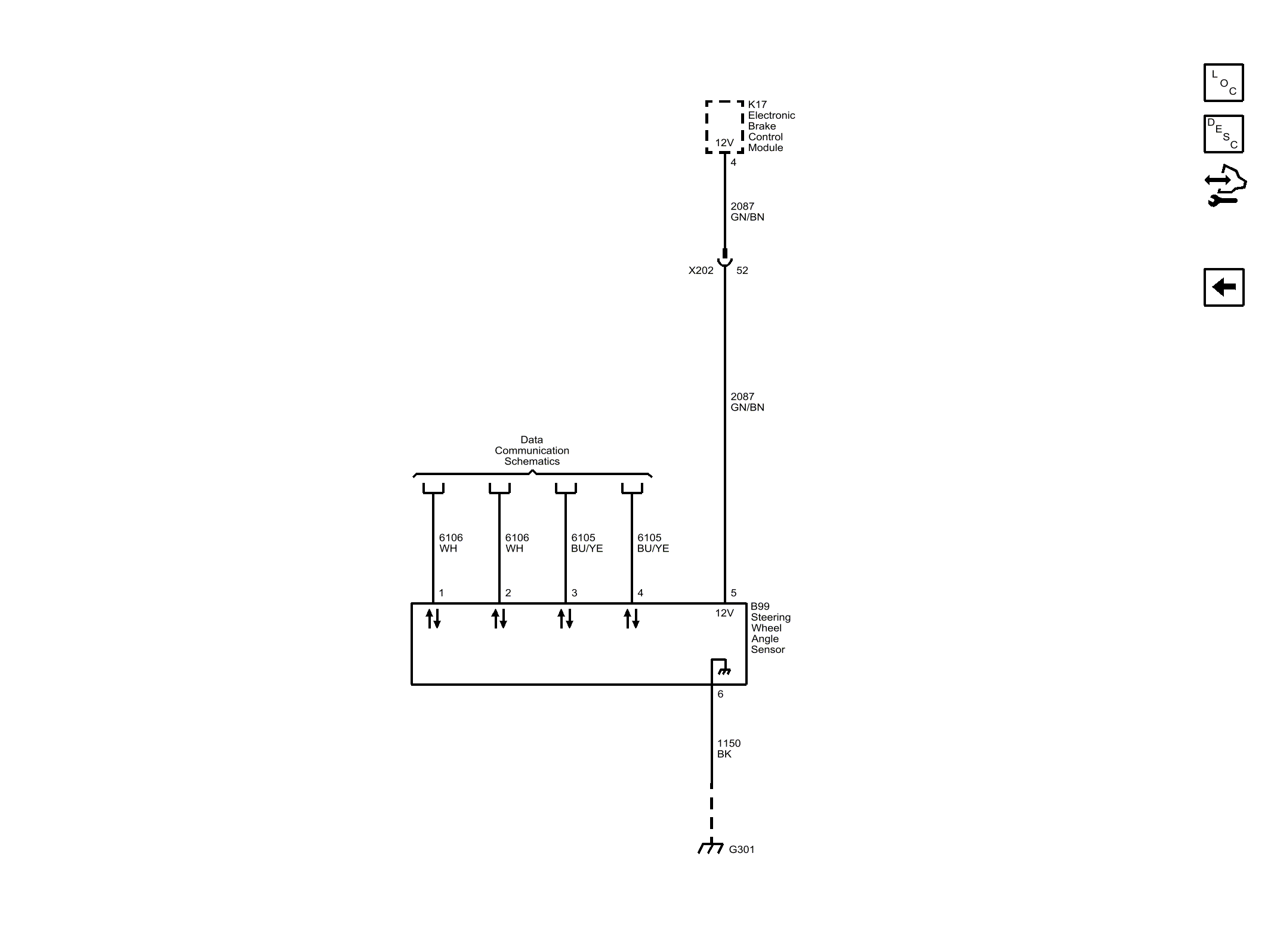

Fig 1: Stability Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
