Module Power, Ground, and Subsystem References

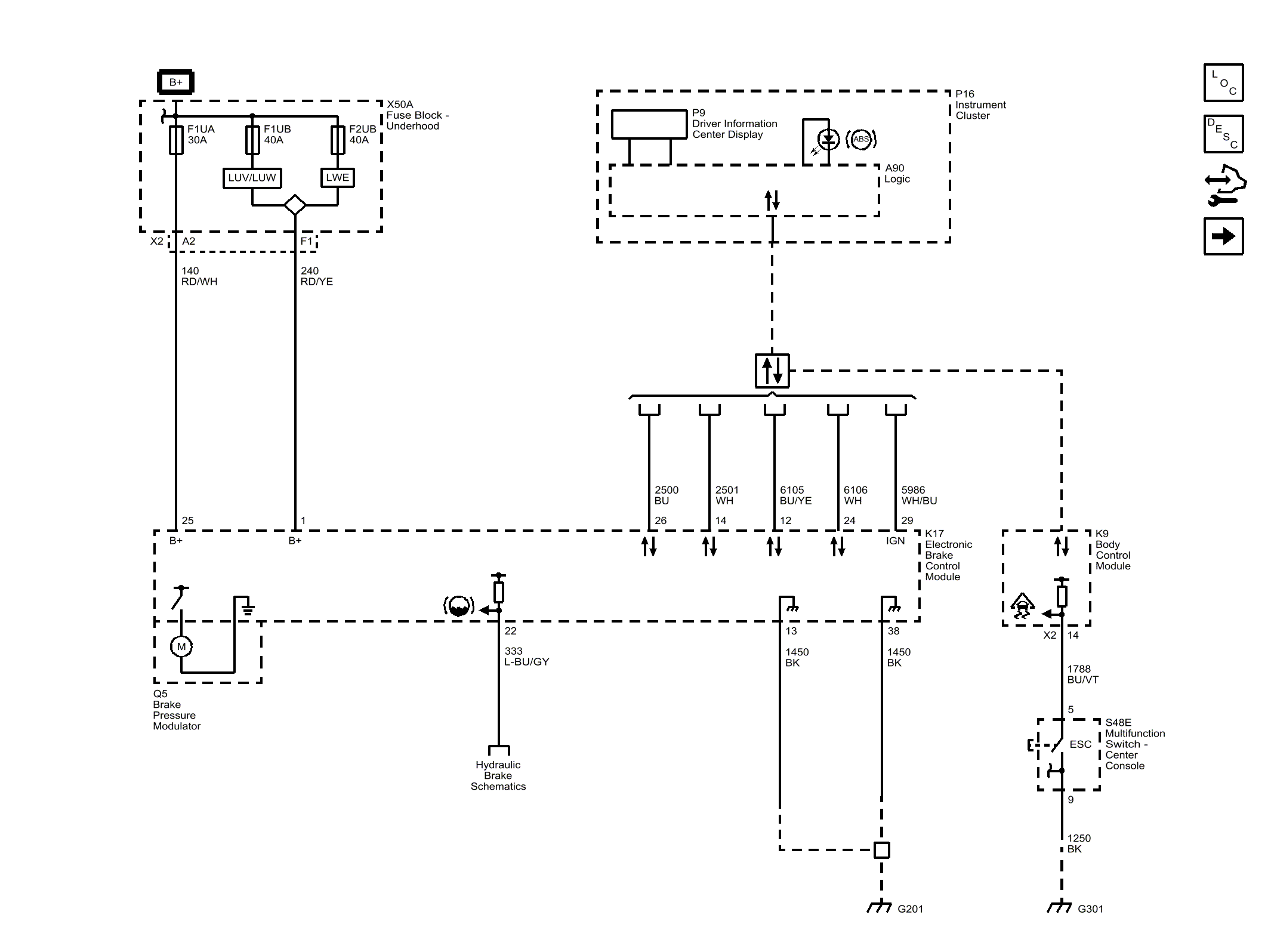

Fig 1: Module Power, Ground, and Subsystem References

GM4427154

Courtesy of GENERAL MOTORS COMPANY
