Defogger Wiring Schematics: Defogger

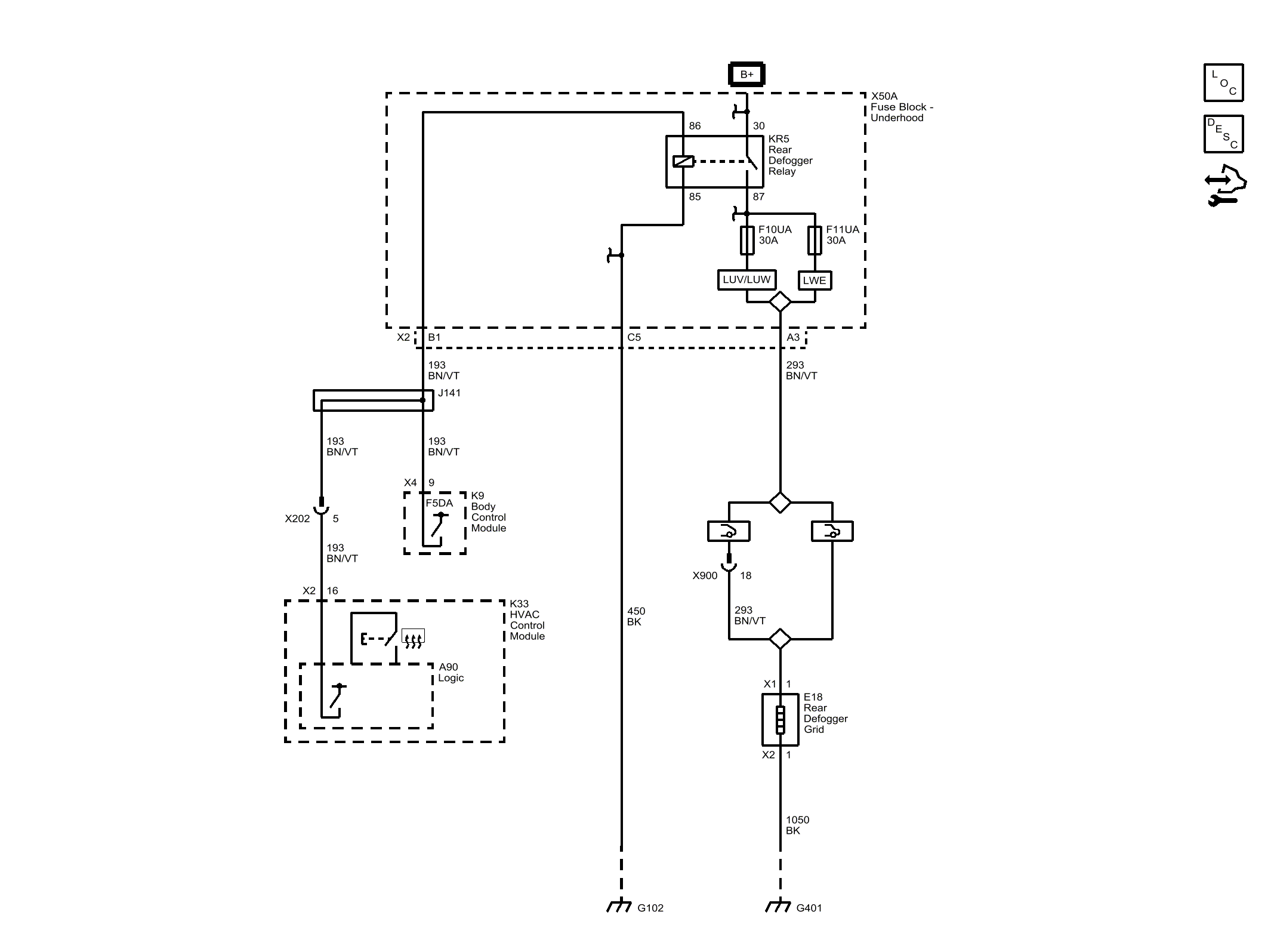

Fig 1: Defogger Wiring Schematic

GM4427113

Courtesy of GENERAL MOTORS COMPANY
