Shift Lock Control (M5U, MW7, MYC or MYD)

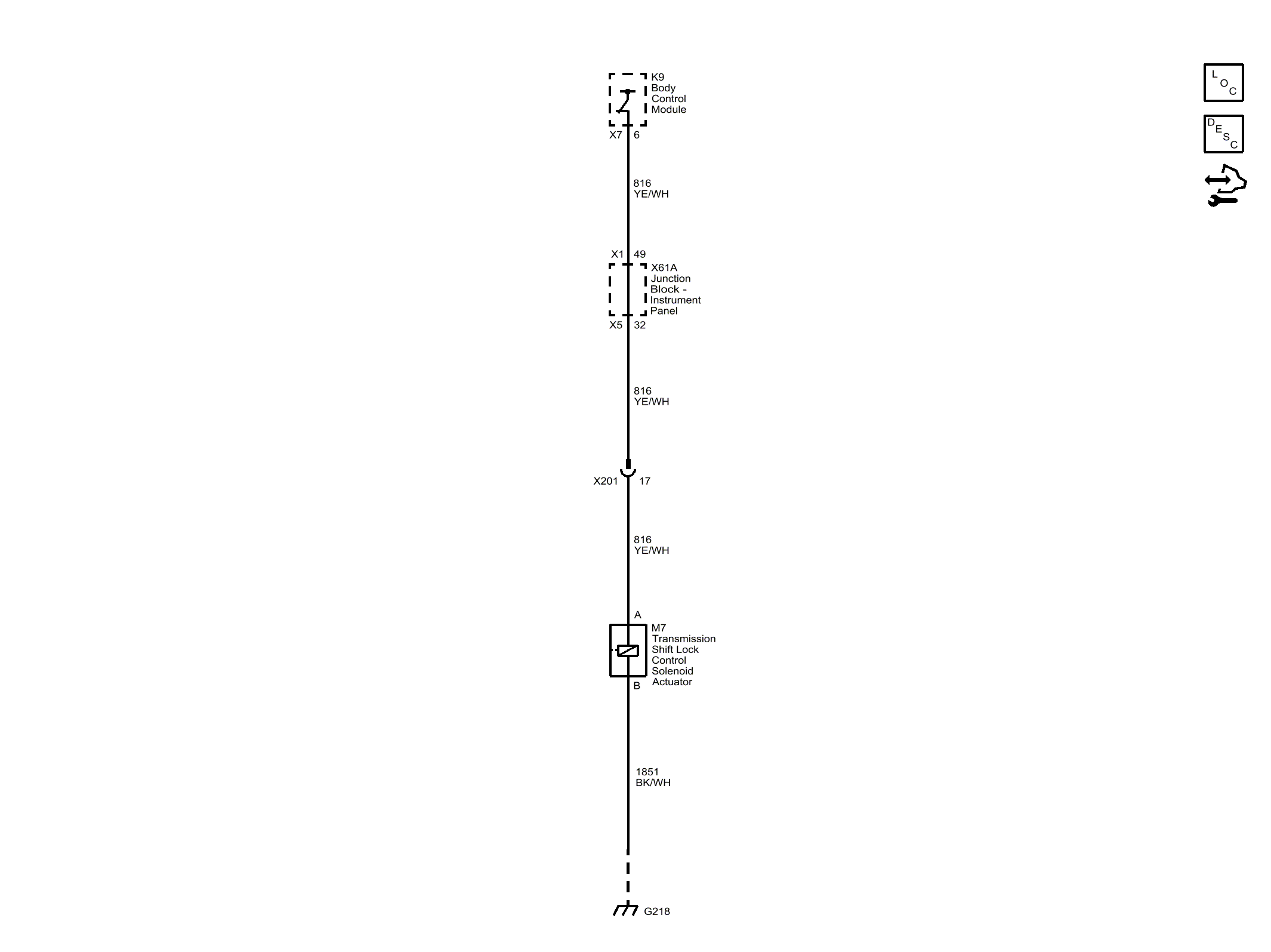

Fig 1: Shift Lock Control (M5U, MW7, MYC or MYD)

GM4492167

Courtesy of GENERAL MOTORS COMPANY
