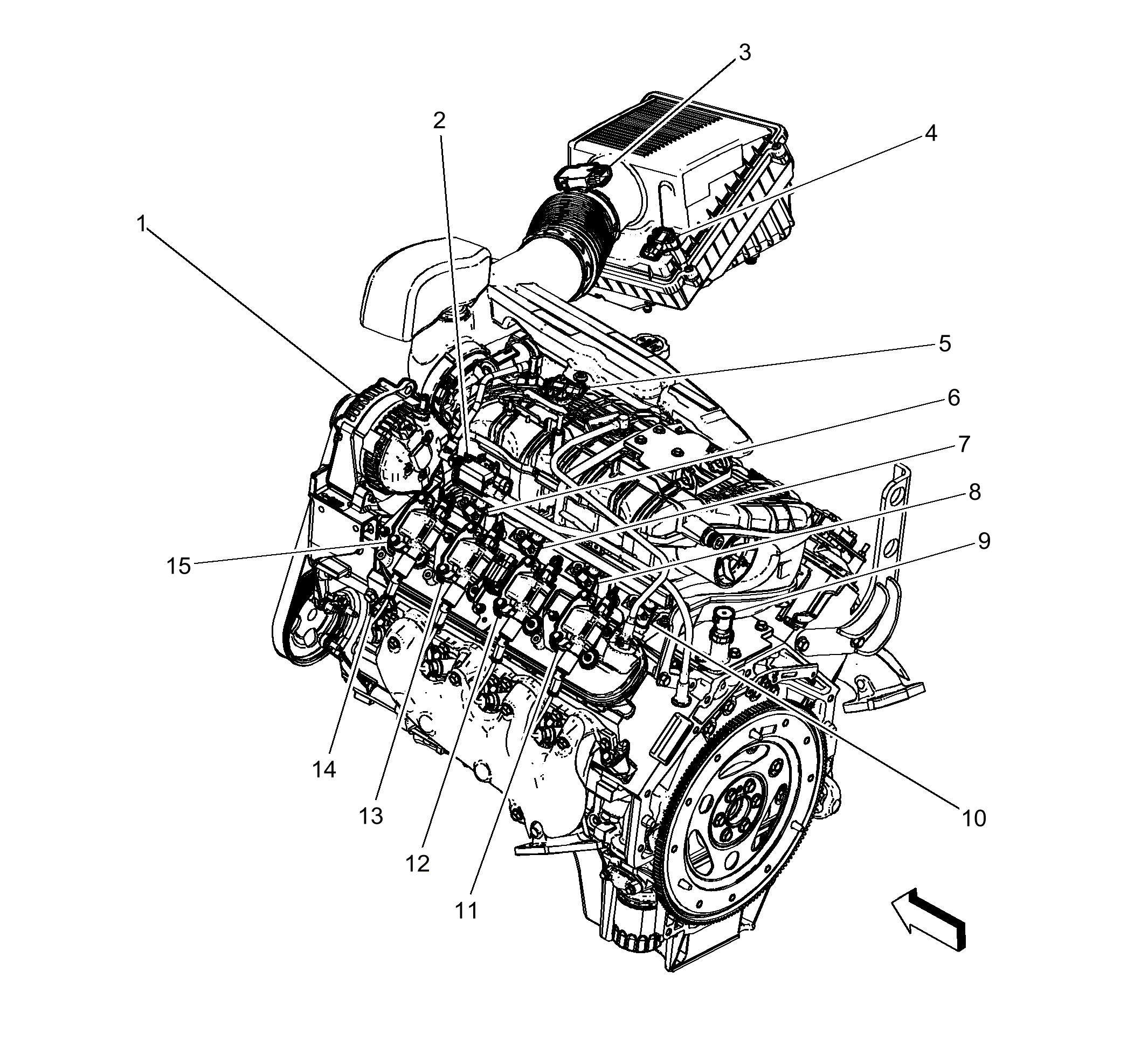

Left Side of Engine Components (L96)
Left Side of Engine Components (L96)
| Items |
|---|
| 1. G13 Generator G13 Generator X1 |
| 2. Q12 Evaporative Emission Purge Solenoid Valve (except L5P) Q12 Evaporative Emission Purge Solenoid Valve (L96/LC8) |
| 3. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (L96/LC8) |
| 4. B192 Throttle Inlet Absolute Pressure Sensor (L96 or LC8) |
| 5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (L96/LC8) |
| 6. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L96/LC8) |
| 7. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L96/LC8) |
| 8. Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L96/LC8) |
| 9. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L96/LC8) |
| 10. Q17G Fuel Injector 7 Q17G Fuel Injector 7 (L96/LC8) |
| 11. T8G Ignition Coil 7 (L83, L86, L96 or LC8) T8G Ignition Coil 7 (L96/LC8) |
| 12. T8E Ignition Coil 5 (except L5P) T8E Ignition Coil 5 (L96/LC8) |
| 13. T8C Ignition Coil 3 (except L5P) T8C Ignition Coil 3 (L96/LC8) |
| 14. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L96/LC8) |
| 15. T8A Ignition Coil 1 (except L5P) T8A Ignition Coil 1 (L96/LC8) |
