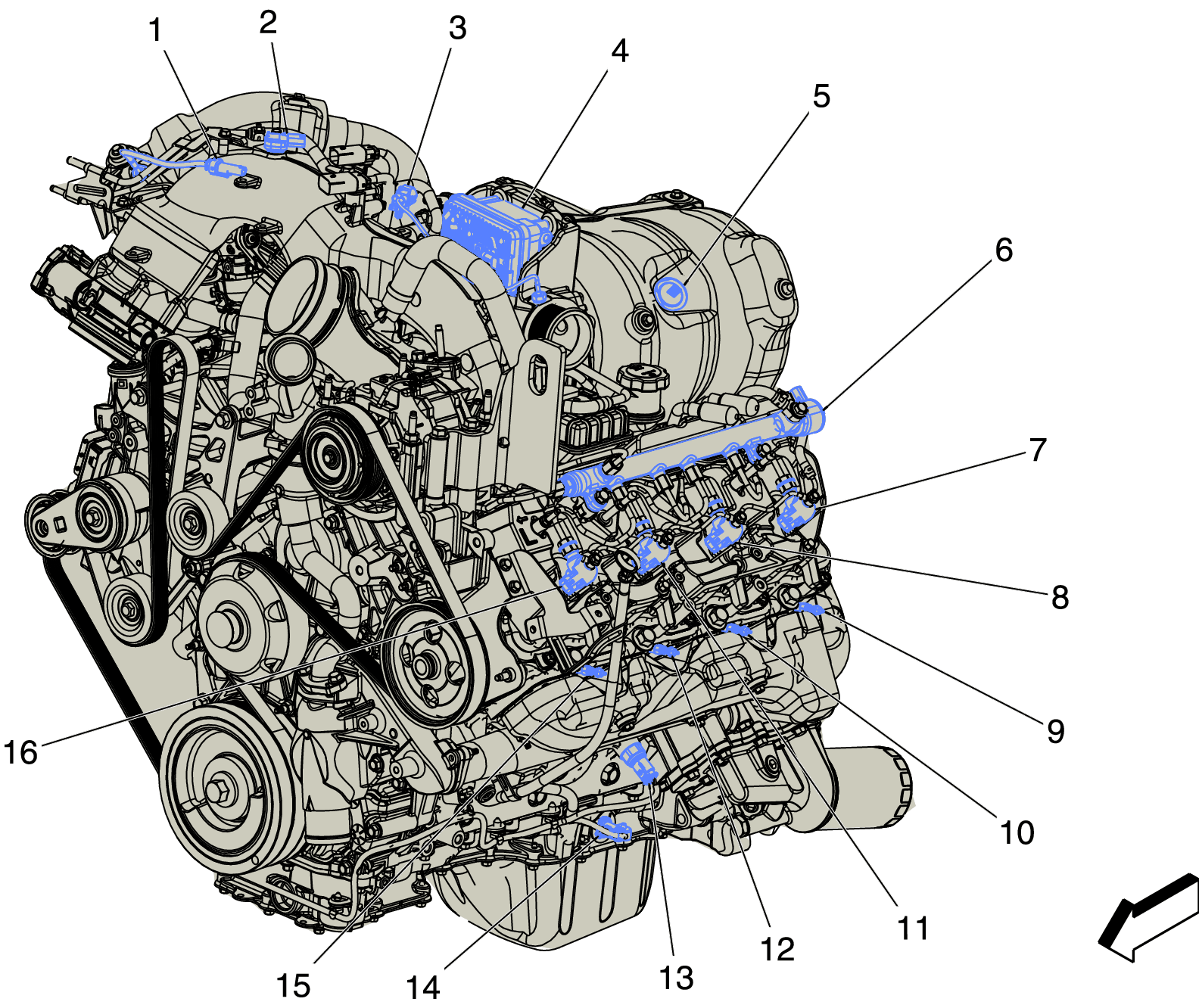

Left Side of Engine Components (L5P)
Left Side of Engine Components (L5P)
| Items |
|---|
| (1) B131A Exhaust Temperature Sensor 1 |
| (2) B65 Intake Manifold Pressure and Air Temperature Sensor |
| (3) B193A Charge Air Cooler Inlet Temperature Sensor |
| (4) M103 Turbocharger Vane Position Actuator |
| (5) B195A Nitrogen Oxides Sensor 1 |
| (6) Q18B Fuel Pressure Regulator 2 |
| (7) Q17H Fuel Injector 8 |
| (8) Q17F Fuel Injector 6 |
| (9) E12H Glow Plug 8 |
| (10) E12F Glow Plug 6 |
| (11) Q17D Fuel Injector 4 (LV7) |
| (12) E12D Glow Plug 4 |
| (13) B37B Engine Oil Pressure Sensor |
| (14) B35 Engine Oil Level Switch |
| (15) E12B Glow Plug 2 |
| (16) Q17B Fuel Injector 2 |
