Front of Engine Components (L5P)

Front of Engine Components (L5P)

(1) G13E Generator - Auxiliary
(2) G1 A/C Compressor
(3) Q46 A/C Compressor Solenoid Valve
(4) G13 Generator
(5) B23 Camshaft Position Sensor
(6) Q2 A/C Compressor Clutch

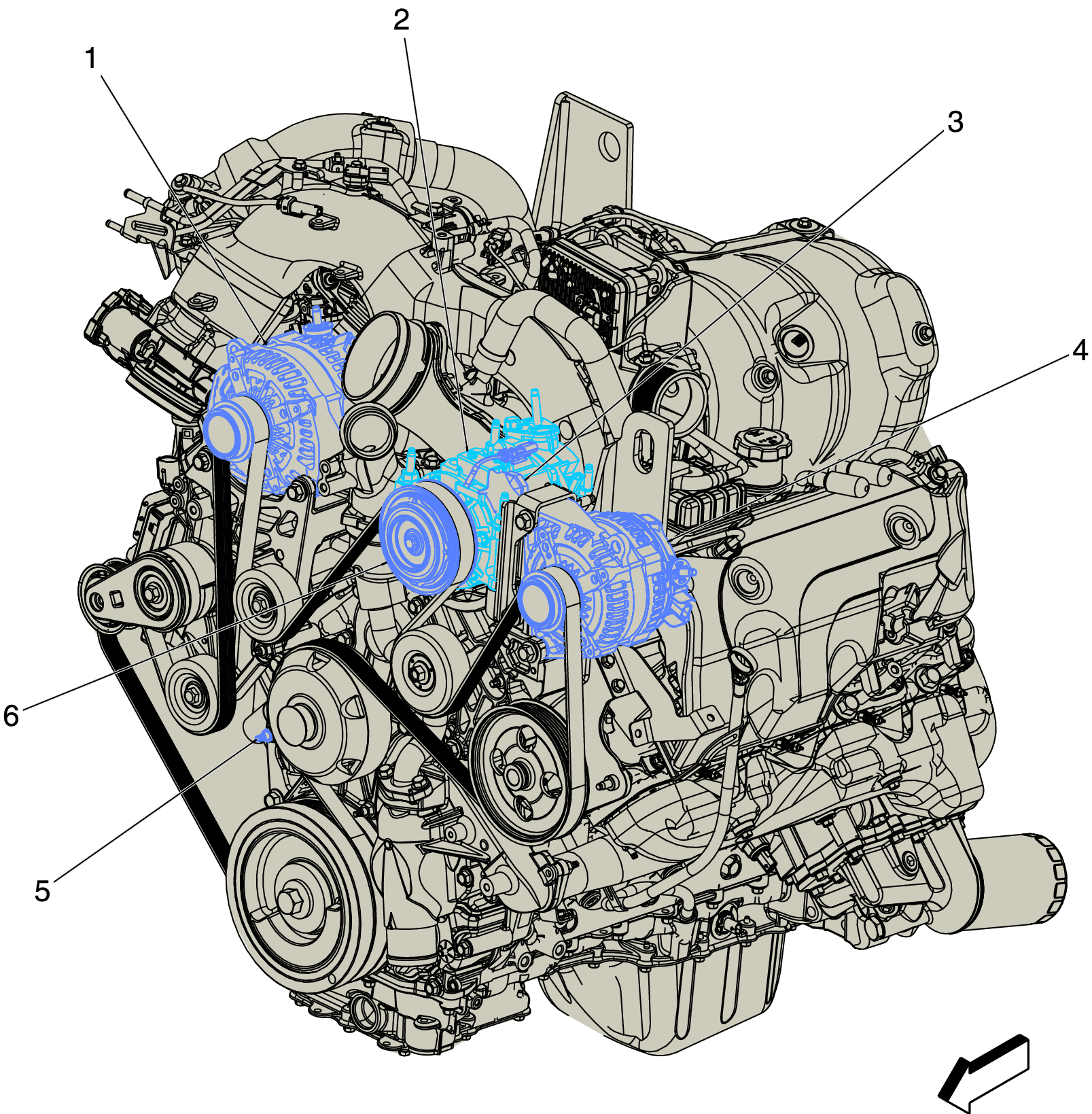

Fig 1: Front of Engine Components (L5P)
GM4778838Courtesy of GENERAL MOTORS COMPANY
