Installation Procedure
WARNING: This page is about a different variant/trim than selected.

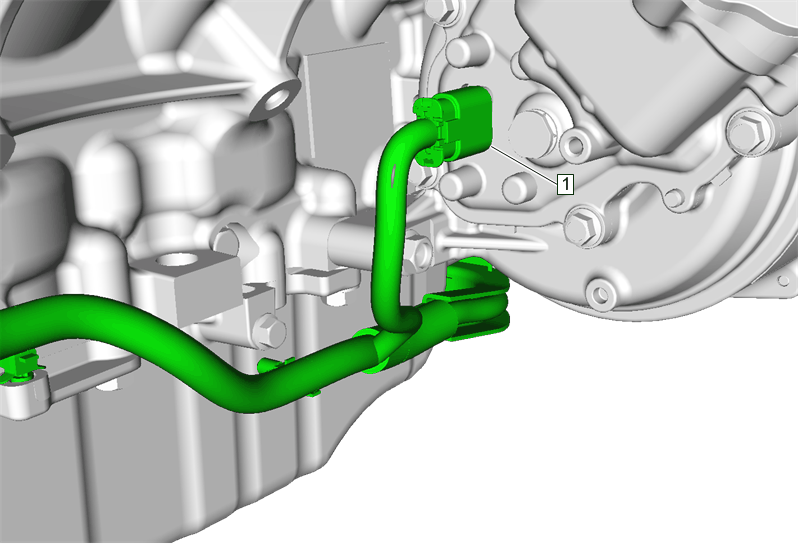

- Generator Control Module 3-Phase Cable 1 -Install - Generator Control Module 3-Phase Cable Assembly Replacement
- Generator 1 -Install

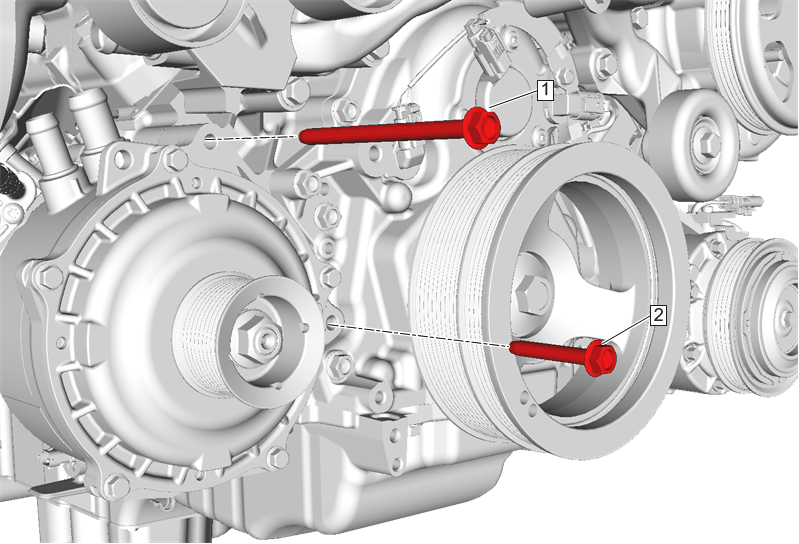

- Generator Bolt (1, 2) -Install NEW

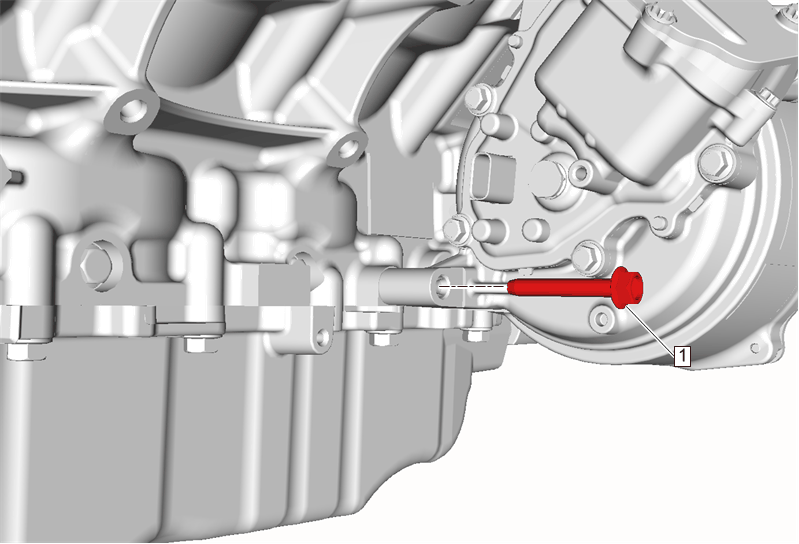

- Generator Bolt 1 -Install NEW
- Generator Bolt-Tighten 36 N.m (27 lb ft)
- Steering Gear Skid Shield-Install - Steering Gear Skid Shield Replacement

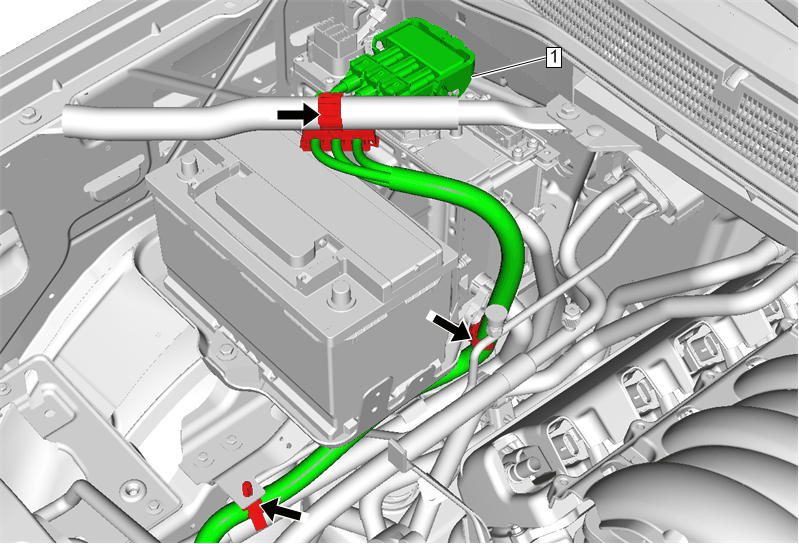

- Harness Connector 1 -Connect

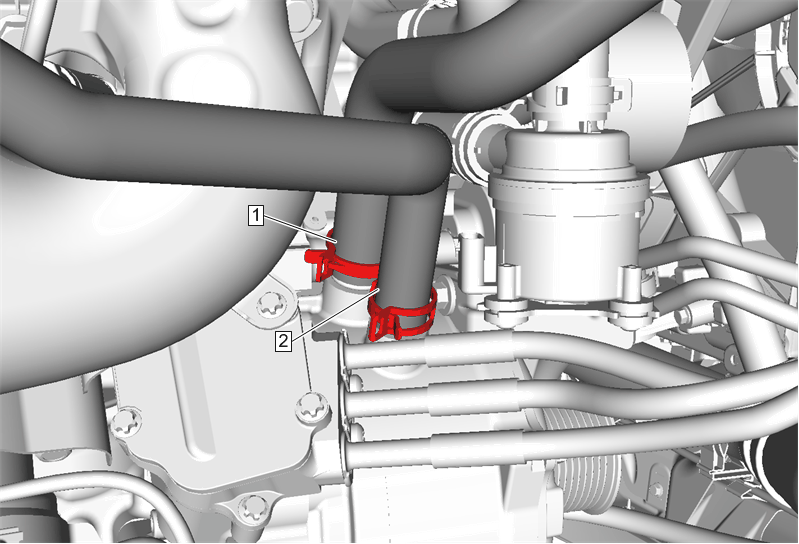

- Coolant Hose (1, 2) -Install @Generator - Hose Clamp Replacement Guidelines - Spring Type
- Front Wheelhouse Liner - Right Side-Install - Front Wheelhouse Liner Replacement - Right Side

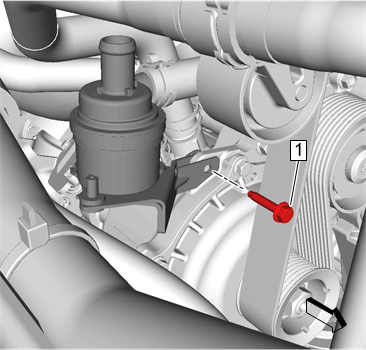

- Engine Coolant Heater Pump Bracket Bolt 1 -Install - Auxiliary Water Pump Replacement (L8B)
- Drive Belt Tensioner-Install - Drive Belt Tensioner Replacement - Accessory (L8B Lower)Drive Belt Tensioner Replacement - Accessory (L8B Upper)
- Attach the harness retainers where indicated.
- Harness Connector 1 -Connect
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Vac N Fill L8B)
- Enable the high voltage system. High Voltage Enabling
CAUTION:
Refer to Fastener Caution
