Left Front of Engine Components (LV3)

Left Front of Engine Components (LV3)

Items
1. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LV3)
2. Q43 Valve Lifter Oil Manifold Assembly (1500) Q43 Valve Lifter Oil Manifold Assembly (LV3)
3. Q12 Evaporative Emission Purge Solenoid Valve (except L5P) Q12 Evaporative Emission Purge Solenoid Valve (LV3)
4. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LV3/L8B/L83/L86)
5. B68A Knock Sensor 1 (except L5P) B68A Knock Sensor 1
6. Q6 Camshaft Position Actuator Solenoid Valve (except L5P) Q6 Camshaft Position Actuator Solenoid Valve
7. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LV3)

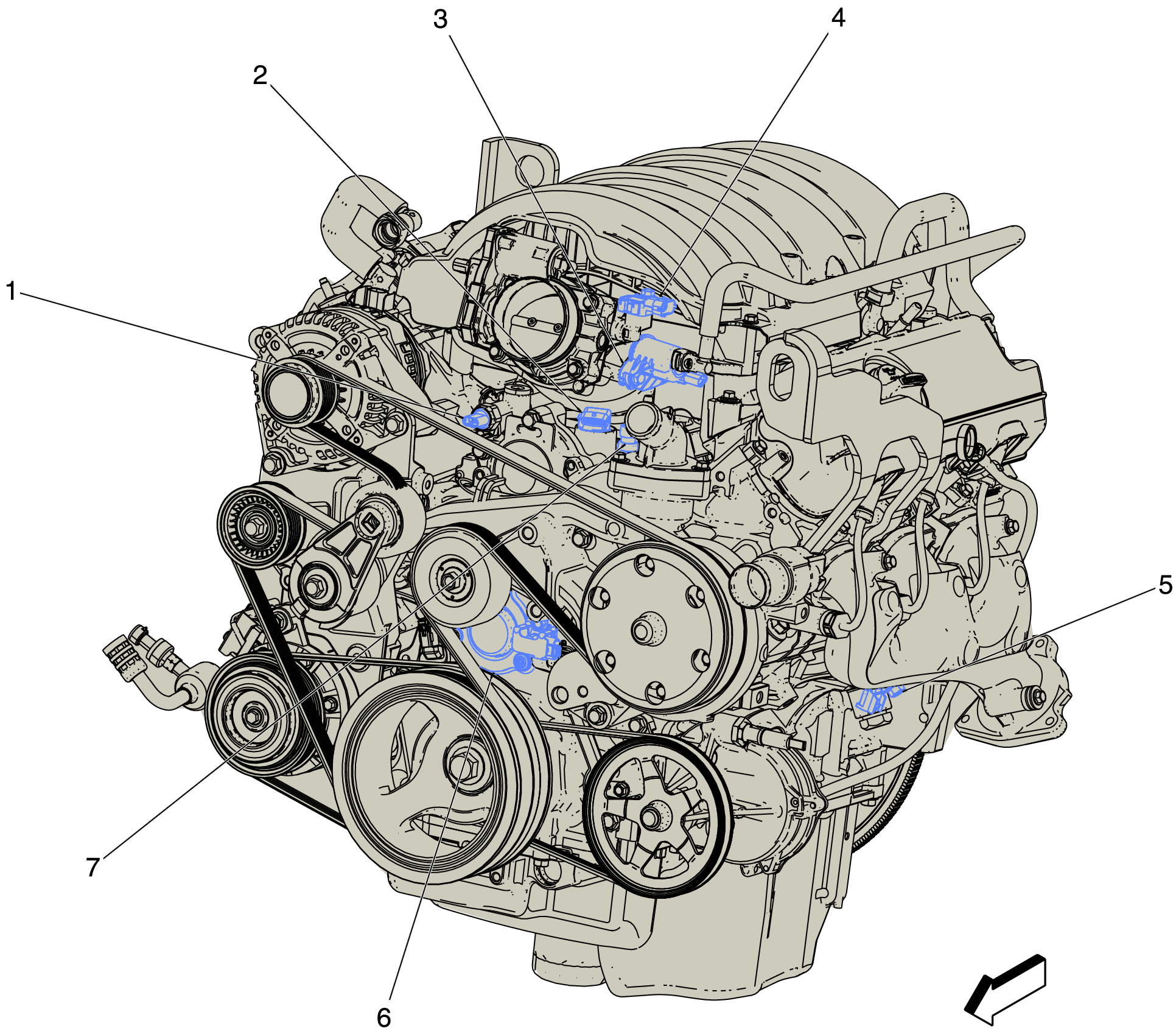

Fig 1: Left Front of Engine Components (LV3)
GM3274866Courtesy of GENERAL MOTORS COMPANY
