Installation Procedure

  1. Install the rear sliding window module assembly to the vehicle.

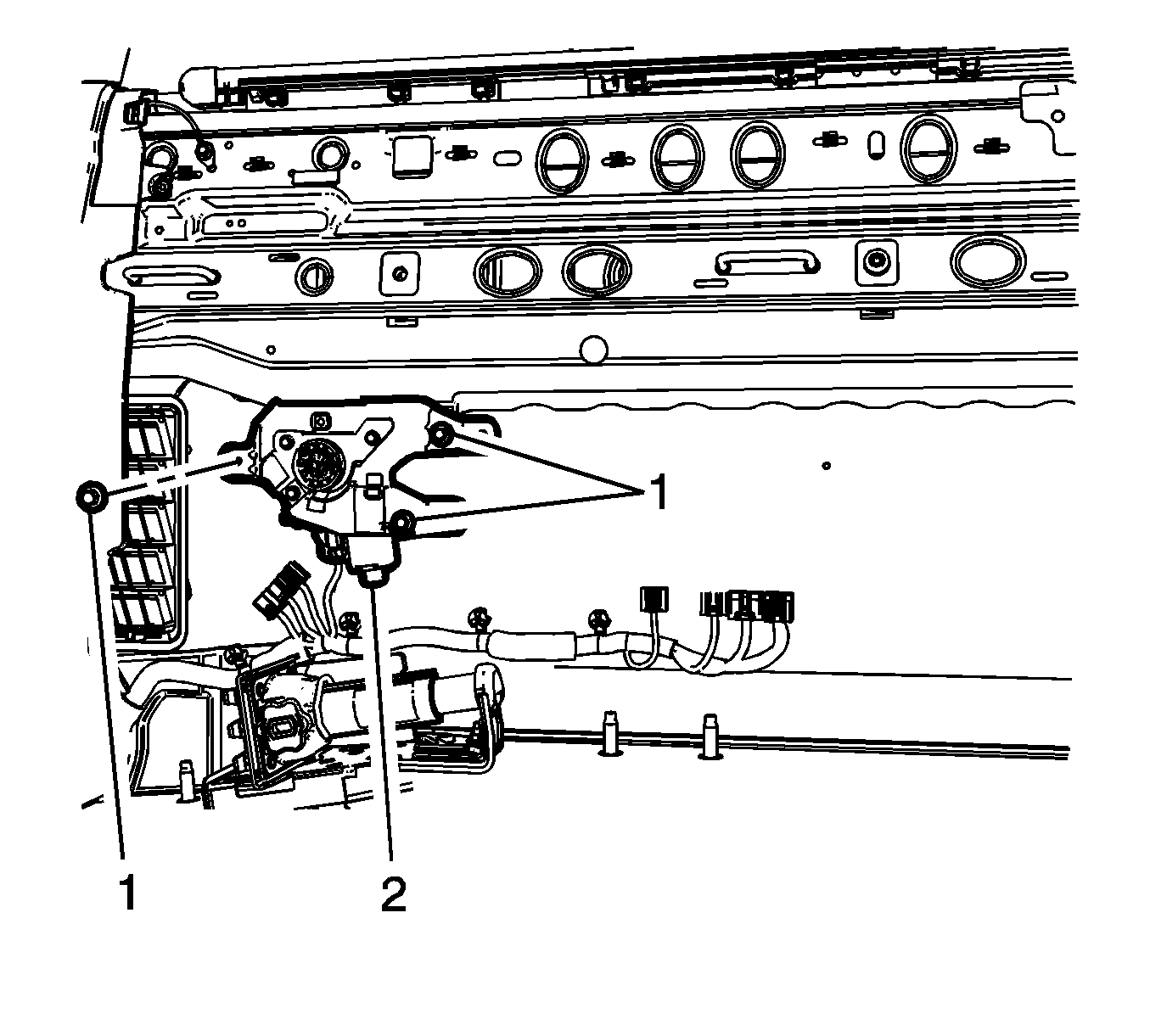

    2. Fig 1: Rear Sliding Window Module Nuts
    GM3346338Courtesy of GENERAL MOTORS COMPANY
  2. Connect the rear sliding window electrical connector to the module (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the rear sliding window module nuts (1).

    Tighten

    Tighten nuts to 9 N.m (80 lb in).

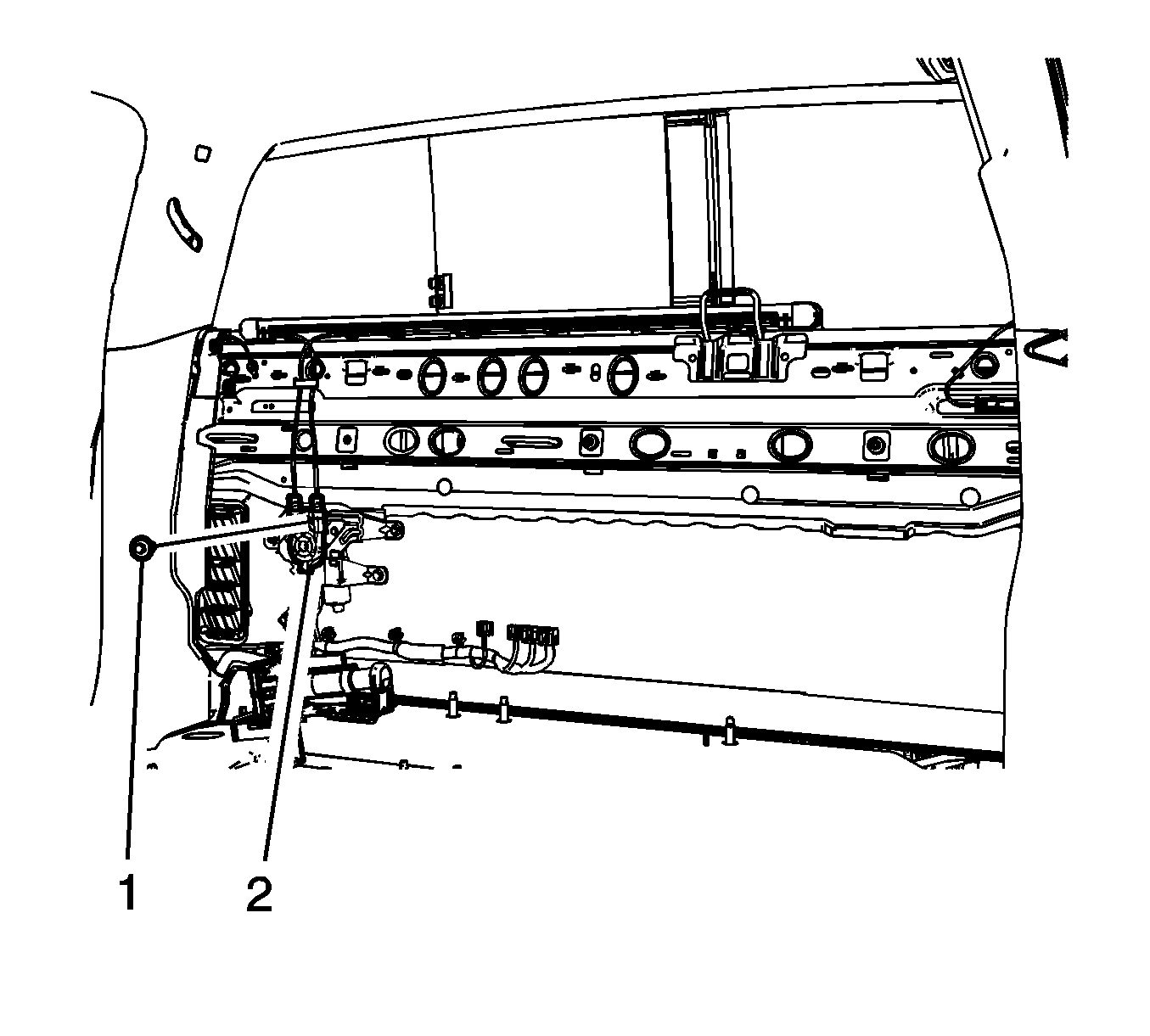

    4. Fig 2: Bolt And Regulator
    GM3346336Courtesy of GENERAL MOTORS COMPANY
  4. Install the rear sliding window regulator and cables (2) to the module.
  5. Install the bolt (1) to the rear sliding window regulator and cables (2).

    Tighten

    Tighten bolt to 9 N.m (80 lb in).

  6. Install the body rear panel insulator. Refer to Body Rear Panel Insulator Replacement .
  7. Inspect the rear sliding window for proper operation.
