Outside Rearview Mirror Replacement (DPN)

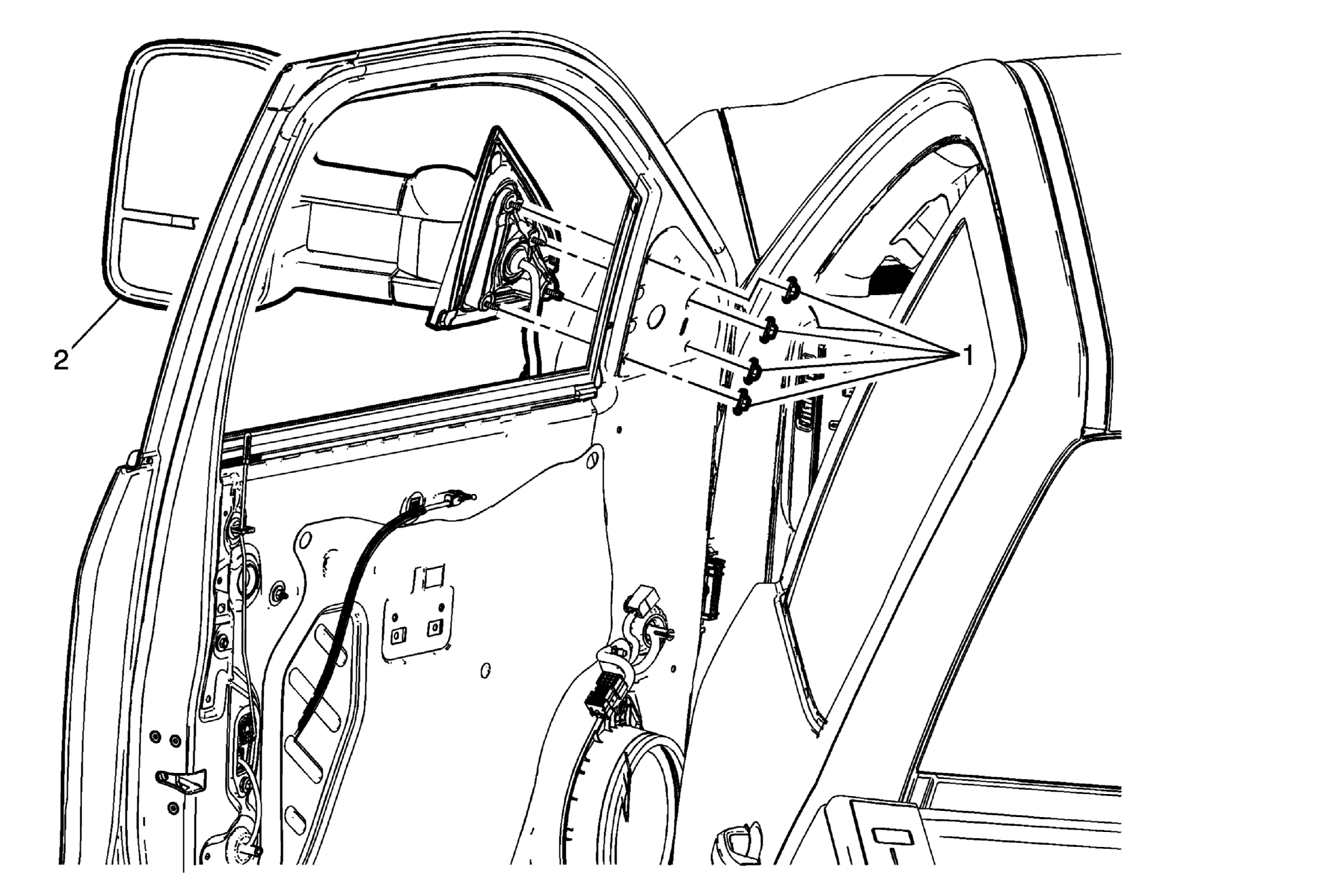

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front side door window garnish trim. Refer to Front Side Door Window Garnish Molding Replacement (Crew Cab, Extended Cab)Front Side Door Window Garnish Molding Replacement (Regular Cab) . |
|
| 1 | Outside Rearview Mirror Nuts (Qty: 4)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 9 N.m (80 lb in) |
| 2 | Outside Rearview Mirror
NOTE:
Inspect the outside mirror for proper operation before installing the door trim. |
