Outside Rearview Mirror Inner Actuator Replacement (DPN)

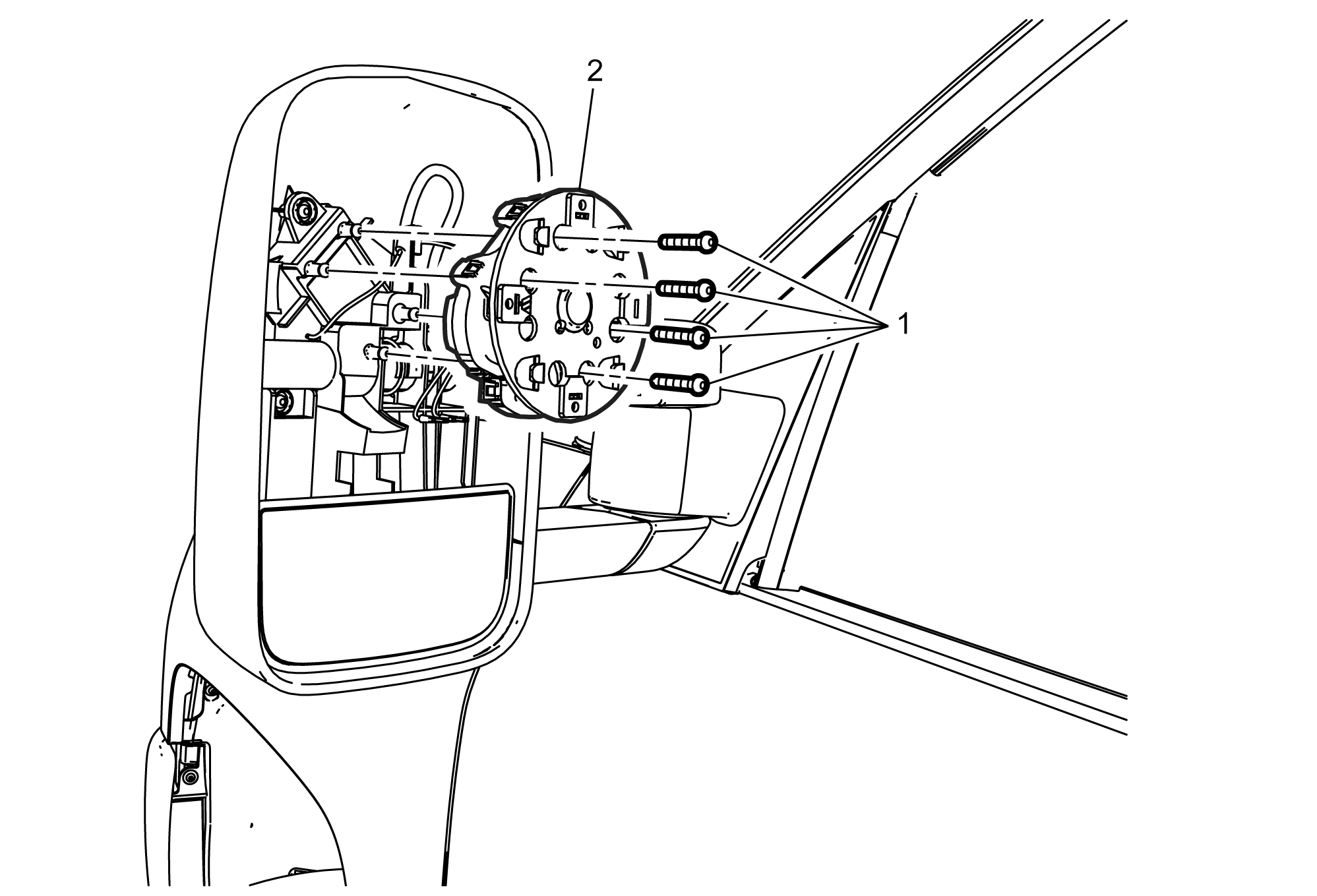

Fig 1: Outside Rearview Mirror Motor (DPN)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement - Upper (DPN) .
1	Outside Rearview Mirror Inner Actuator Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 2 N.m (18 lb in)
2	Outside Rearview Mirror Inner Actuator NOTE: Inspect the outside rearview mirror for proper operation.
