Outside Rearview Mirror Glass Replacement - Lower (DPN)

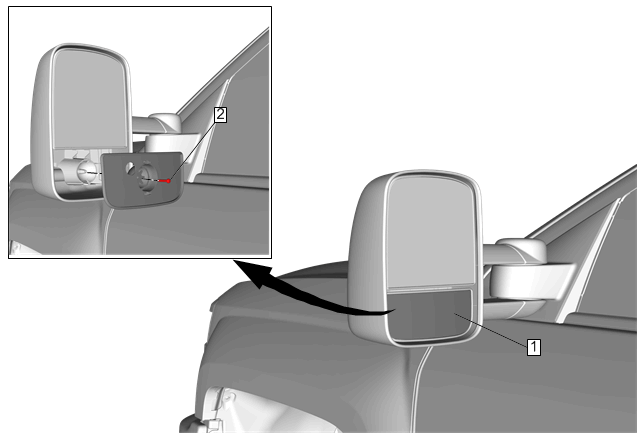

Fig 1: Outside Rearview Mirror Glass Replacement - Lower (DPN)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Lower Glass WARNING: Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury. Procedure Apply several layers of masking tape to the bottom of the outside rearview mirror housing in order to protect the painted finish. Apply several layers of masking tape to the outside lower rearview mirror glass. Using the appropriate tool, break the mirror glass.
2	Outside Rearview Mirror Lower Glass Retainer Screw CAUTION: Refer to Fastener Caution . NOTE: Install retainer and retainer screw before installing 2 sided tape with new mirror. Tighten 17 N.m (12 lb ft)

Callout

Component Name

Outside Rearview Mirror Lower Glass

WARNING:

Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.

Procedure

Apply several layers of masking tape to the bottom of the outside rearview mirror housing in order to protect the painted finish.
Apply several layers of masking tape to the outside lower rearview mirror glass.
Using the appropriate tool, break the mirror glass.

Outside Rearview Mirror Lower Glass Retainer Screw

CAUTION:

NOTE:

Install retainer and retainer screw before installing 2 sided tape with new mirror.

Tighten
17 N.m (12 lb ft)
