Front Parking Assist Alarm Sensor Bracket Replacement (Chevrolet)

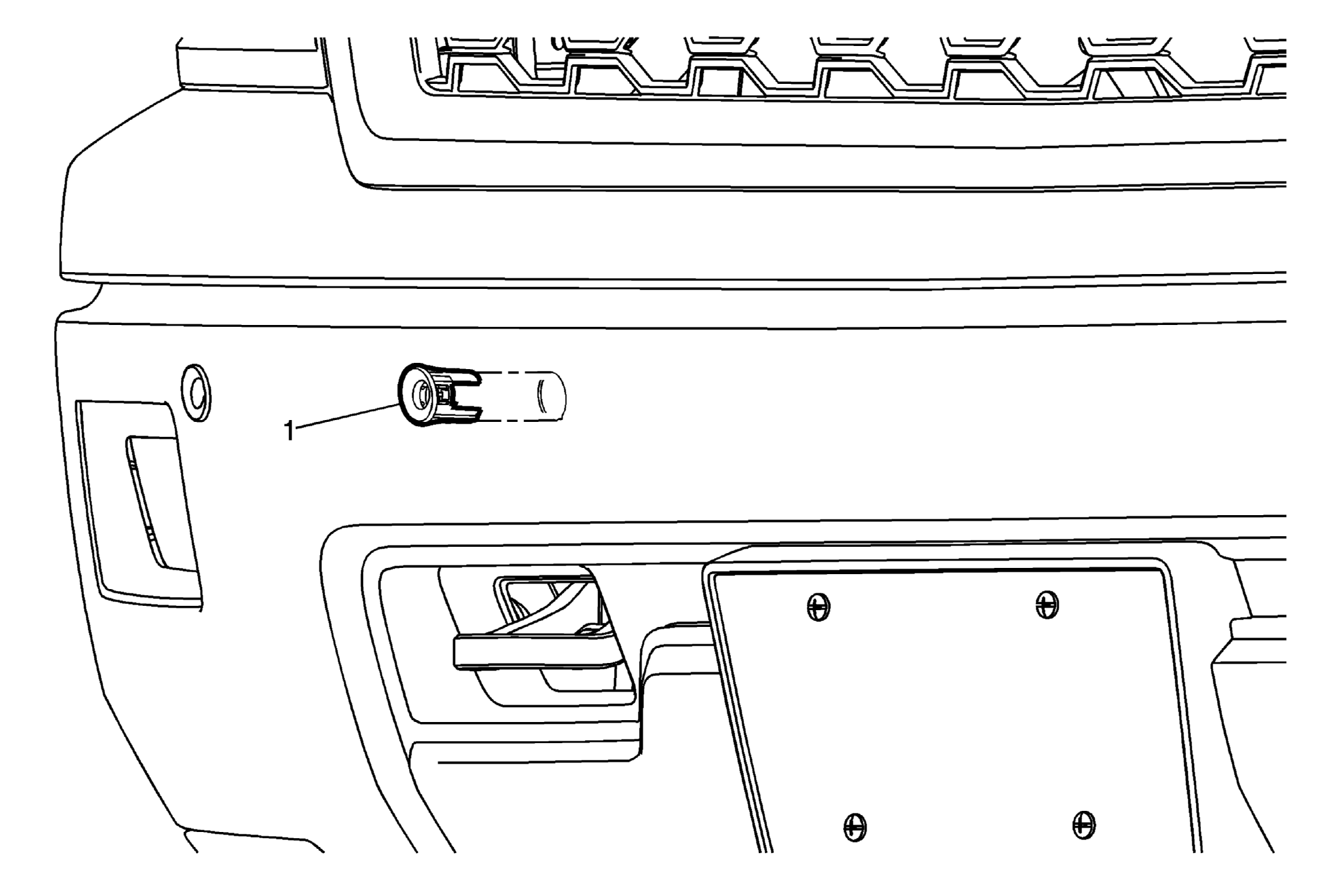

Fig 1: Front Parking Assist Alarm Sensor Bracket (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front parking assist alarm sensor. Refer to Front Parking Assist Alarm Sensor Replacement (Chevrolet Outer) Front Parking Assist Alarm Sensor Replacement (Center) .
1	Front Parking Assist Alarm Sensor Bracket Procedure  Release the 2 tabs behind the rear parking assist alarm sensor bracket to remove.
