Front Seat Belt Front Trim Cover Replacement

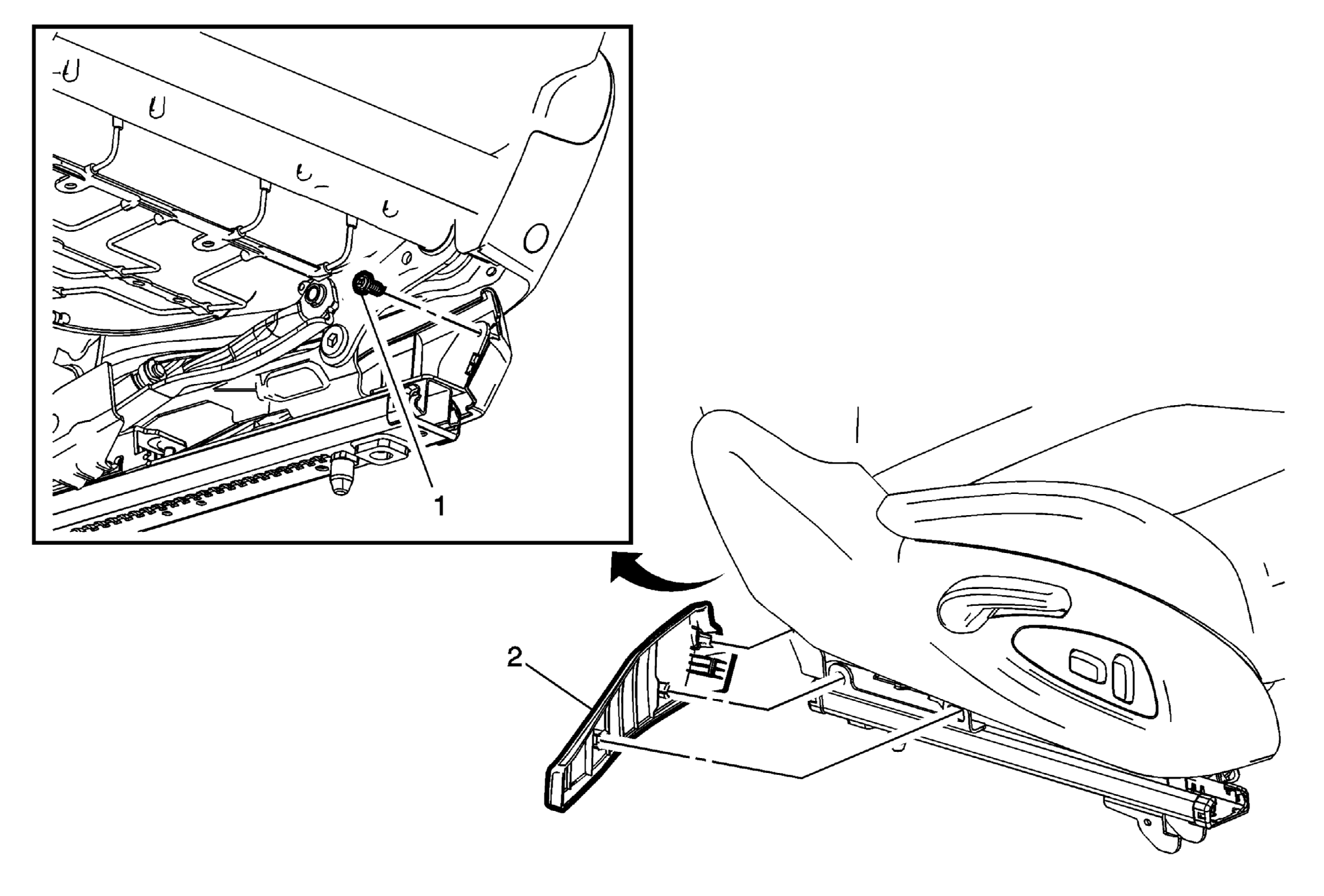

Fig 1: Front Seat Belt Front Trim Cover
GM3137369Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Belt Front Trim Cover Fastener
CAUTION:

Refer to Fastener Caution .
2 Front Seat Belt Front Trim Cover

Procedure

  1. Raise the seat to the highest seat position.
  2. Disengage the rear tab of the cover from the seat track.
  3. Remove the trim cover by pulling outboard.
