Airbag Front Passenger Presence Module Replacement

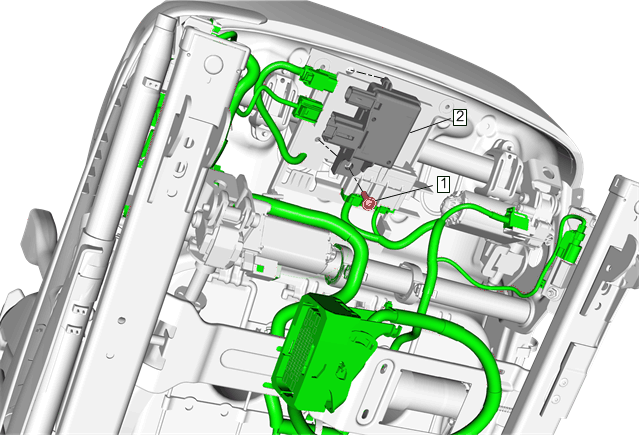

Fig 1: Airbag Front Passenger Presence Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Procedure Disable the SIR system. Refer to SIR Disabling and Enabling
1	Inflatable Restraint Passenger Presence Module Screw CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Inflatable Restraint Passenger Presence Module Procedure Disconnect the electrical connectors. Refer to Passenger Presence System Rezeroing . NOTE: The inflatable restraint passenger presence module and sensor are serviced separately. Replacing the sensor does not require replacement of the module.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Procedure Disable the SIR system. Refer to SIR Disabling and Enabling

Inflatable Restraint Passenger Presence Module Screw

CAUTION:

Refer to Fastener Caution .

Tighten:
2.5 N.m (22 lb in)

Inflatable Restraint Passenger Presence Module

Procedure

Disconnect the electrical connectors.
Refer to Passenger Presence System Rezeroing .

NOTE:

The inflatable restraint passenger presence module and sensor are serviced separately. Replacing the sensor does not require replacement of the module.
