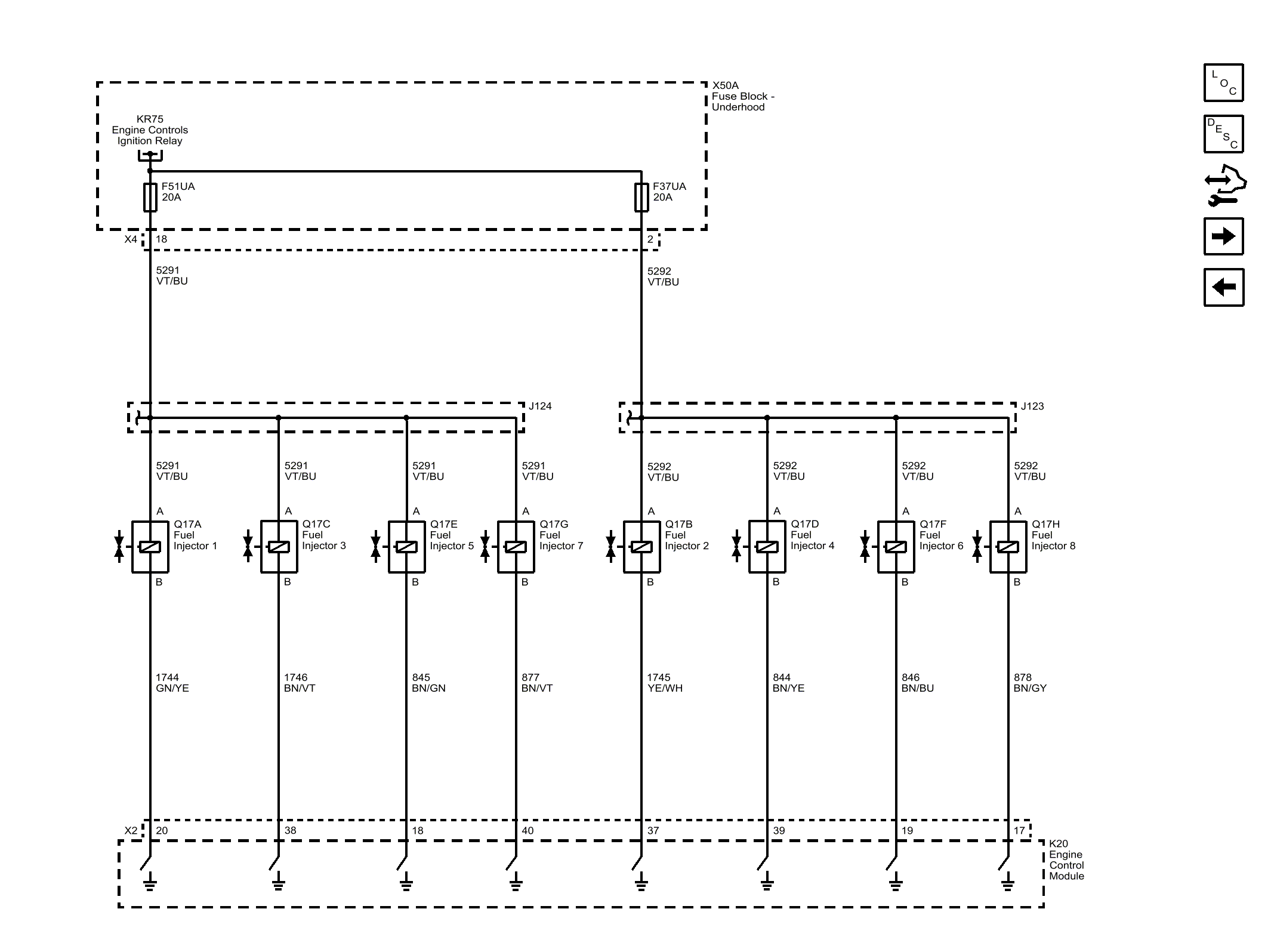

Home >> Chevrolet >> 2017 >> SS Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 6.2L (LS3) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Fuel Controls - Fuel Injectors
