Installation Procedure

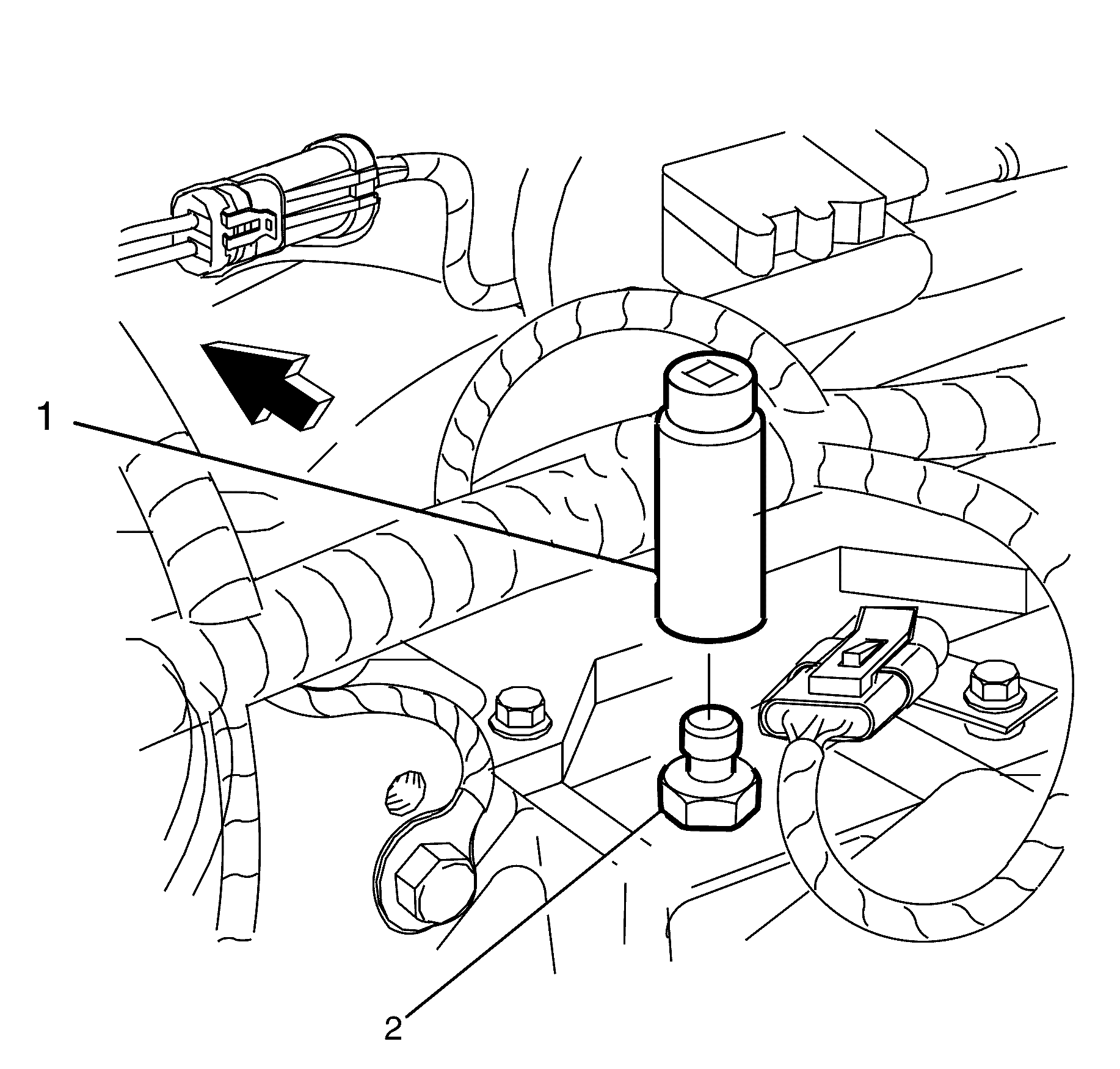

    Fig 1: Oil Pressure Sensor & Switch Socket
    GM1951038Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    If installing the old oil pressure sensor (2), apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the cleaned oil pressure sensor (2) thread.

  1. Install the oil pressure sensor (2) using the J 41712  oil pressure switch socket (1) and tighten to 35 N.m (26 lb ft).

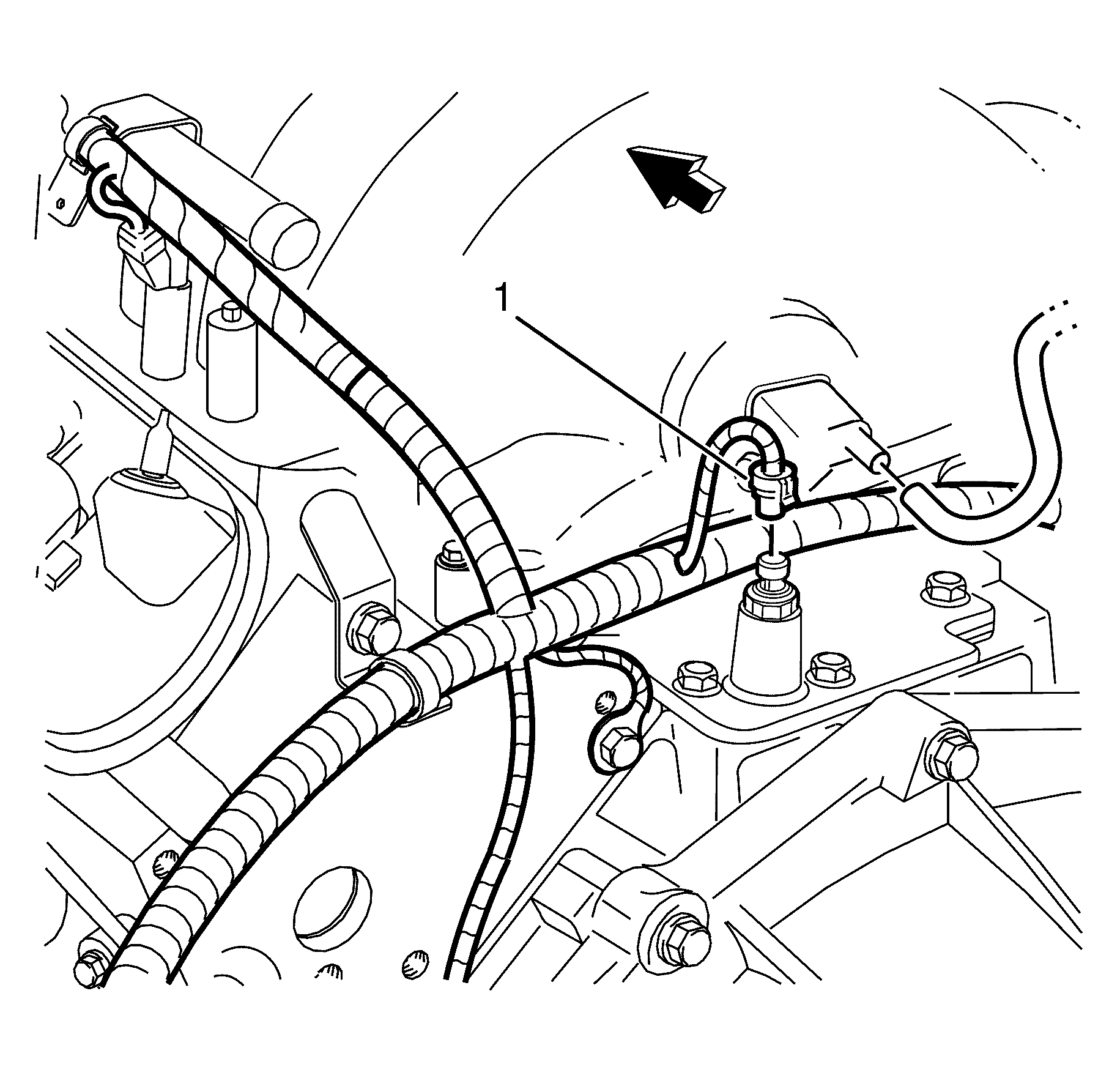

    2. Fig 2: Oil Pressure Sensor Wiring Harness Connector
    GM1951036Courtesy of GENERAL MOTORS COMPANY
  2. Connect the oil pressure sensor electrical connector (1).
  3. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Passenger Side)Air Inlet Grille Panel Replacement (Driver Side) .
