Installation Procedure

    Fig 1: Radiator Outlet Hose & Clamp
    GM3272429Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Installing Hoses without Twists or Bends Caution .

  1. Install the radiator outlet hose (2) to the radiator outlet pipe.
  2. Reposition the radiator outlet hose clamp (1) on the radiator outlet hose (2) using BO-38185  hose clamp pliers.
  3. Install the front bumper fascia extension. Front Bumper Fascia Extension Replacement .
  4. Remove the supports and lower the vehicle.

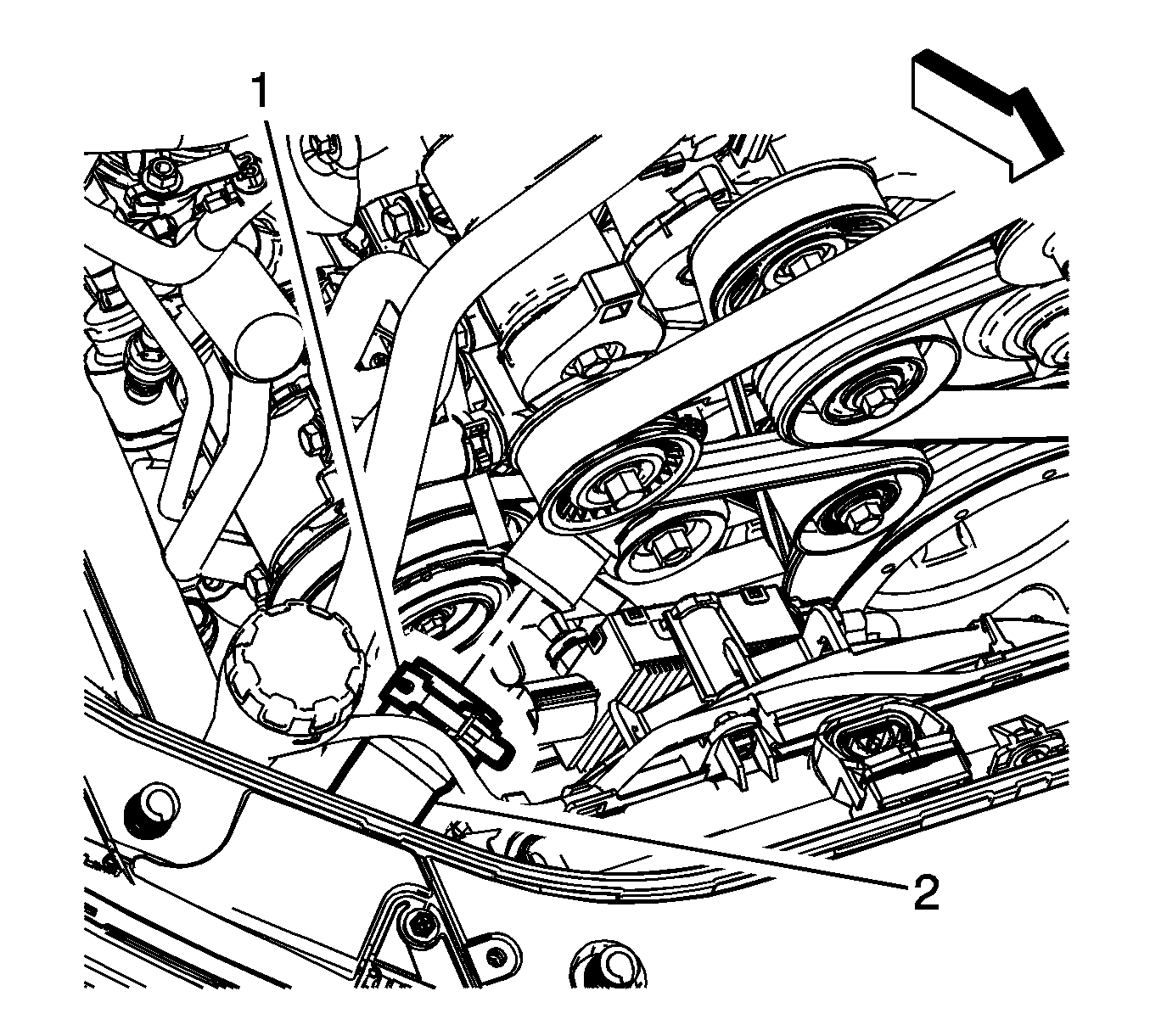

    5. Fig 2: Radiator Outlet Hose & Clamp
    GM3272427Courtesy of GENERAL MOTORS COMPANY
  5. Install the radiator outlet hose (2) to the thermostat housing.
  6. Reposition the radiator outlet hose clamp (1) on the radiator outlet hose (2) using BO-38185  hose clamp pliers.
    7. WARNING:

    Refer to Safety Glasses Warning .

  7. Fill the cooling system to the proper level. Cooling System Draining and Filling .
  8. Start the engine and check for coolant leaks.
