Installation Procedure

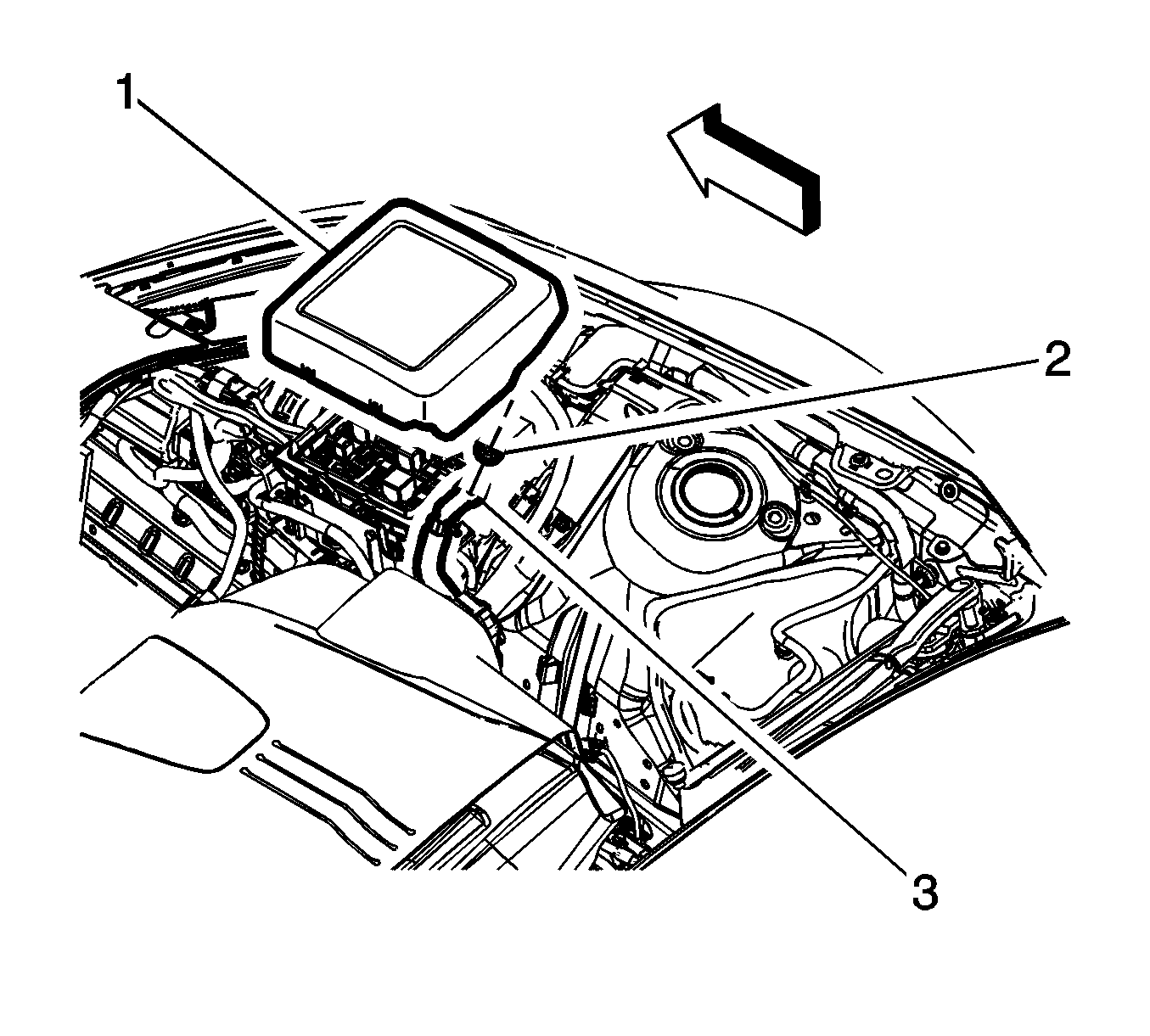

    Fig 1: Battery Positive Cable, Fastener & Junction Block Cover
    GM3218423Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery positive cable (3) to the accessory wiring junction block stud and tighten the fastener (2) to 9 N.m (80 lb in).
  2. Install the accessory wiring junction block cover (1).
    3. Fig 2: Battery Positive Cable, Fasteners & B+ Protective Boot
    GM3273462Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable bracket to the engine block stud and tighten the fastener (3) to 9 N.m (80 lb in).
  4. Install the battery positive cable (4) to the starter B + stud and tighten the fastener (2) to 10 N.m (89 lb in).
  5. Install the protective boot (1).
  6. Install the right catalytic converter. Refer to Catalytic Converter Replacement - Right Side .
    7. Fig 3: Battery Positive Cable Conduit & Fasteners
    GM3273639Courtesy of GENERAL MOTORS COMPANY
  7. Install the engine wiring and battery positive cable conduit (2) below the oil pan and tighten the fasteners (1) to 9 N.m (80 lb in).

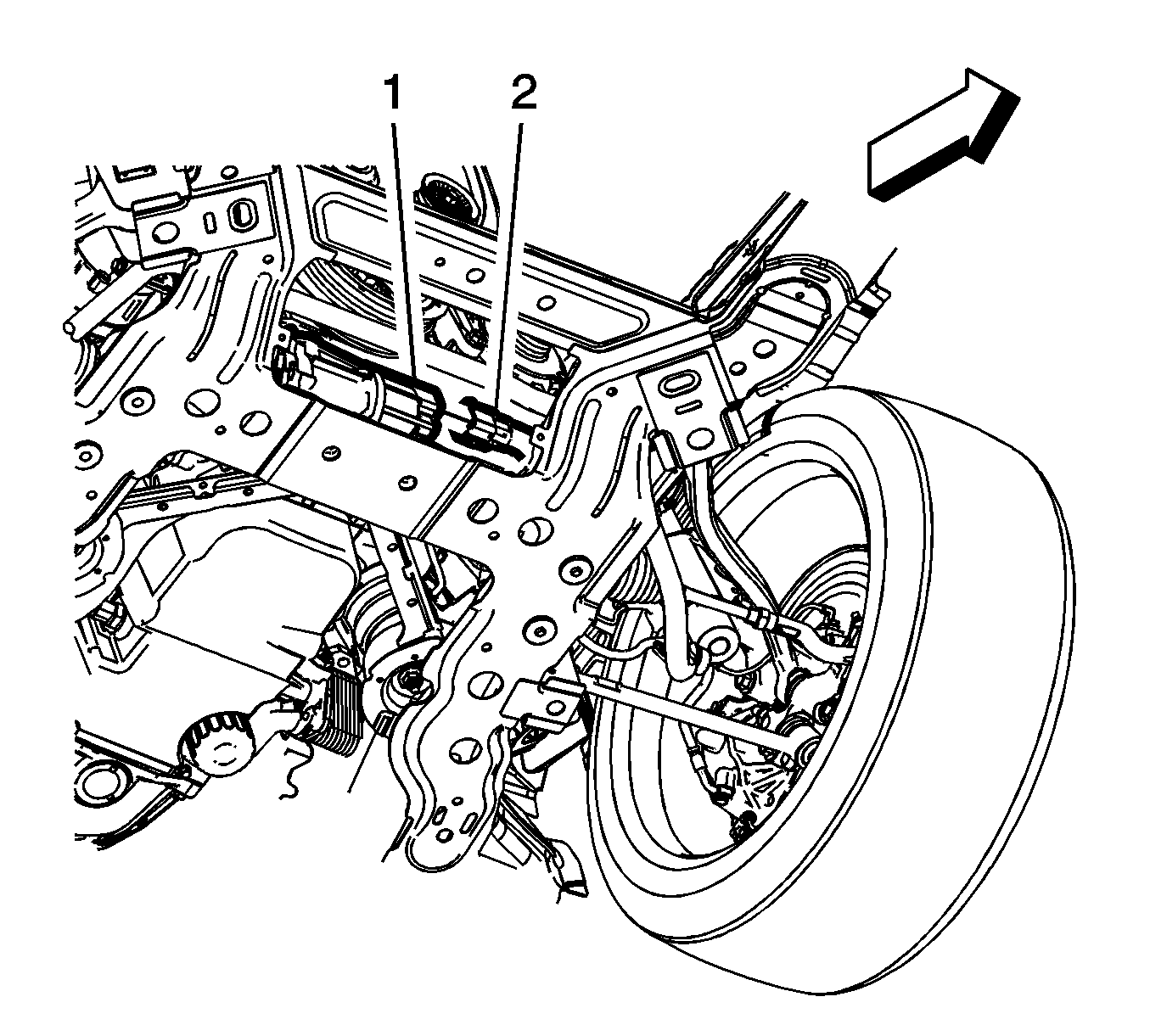

    8. Fig 4: Steering Motor & Connector
    GM3556575Courtesy of GENERAL MOTORS COMPANY
  8. Connect the connector (2) to the steering gear motor (1).
    9. Fig 5: B+ Stud, Protective Boot, Battery Positive Cable Terminal & Fastener
    GM3273636Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery positive cable terminal (3) to the generator B + stud (4) and tighten the fastener (2) to 10 N.m (89 lb in).
  10. Install the B + stud protective boot (1).

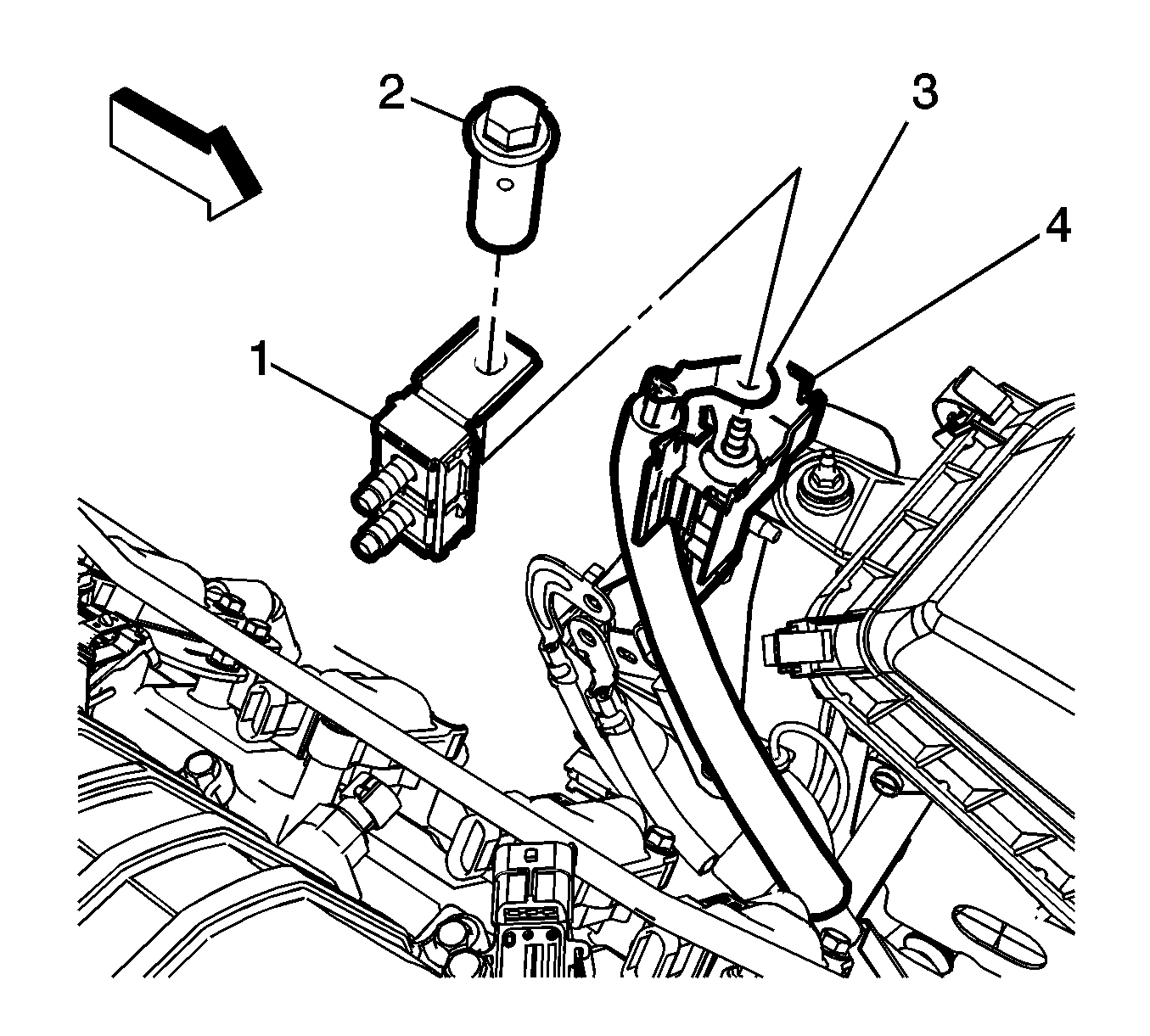

    11. Fig 6: Body Front Wiring Harness Fuse Block, Barrel Fastener, Positive Cable Terminal & Mega Fuse Case
    GM3273640Courtesy of GENERAL MOTORS COMPANY
  11. Install the mega fuse case (1) along with the battery positive cable terminal (3) to the body front wiring harness fuse block (4). Tighten the barrel fastener (2) to 9 N.m (80 lb in).

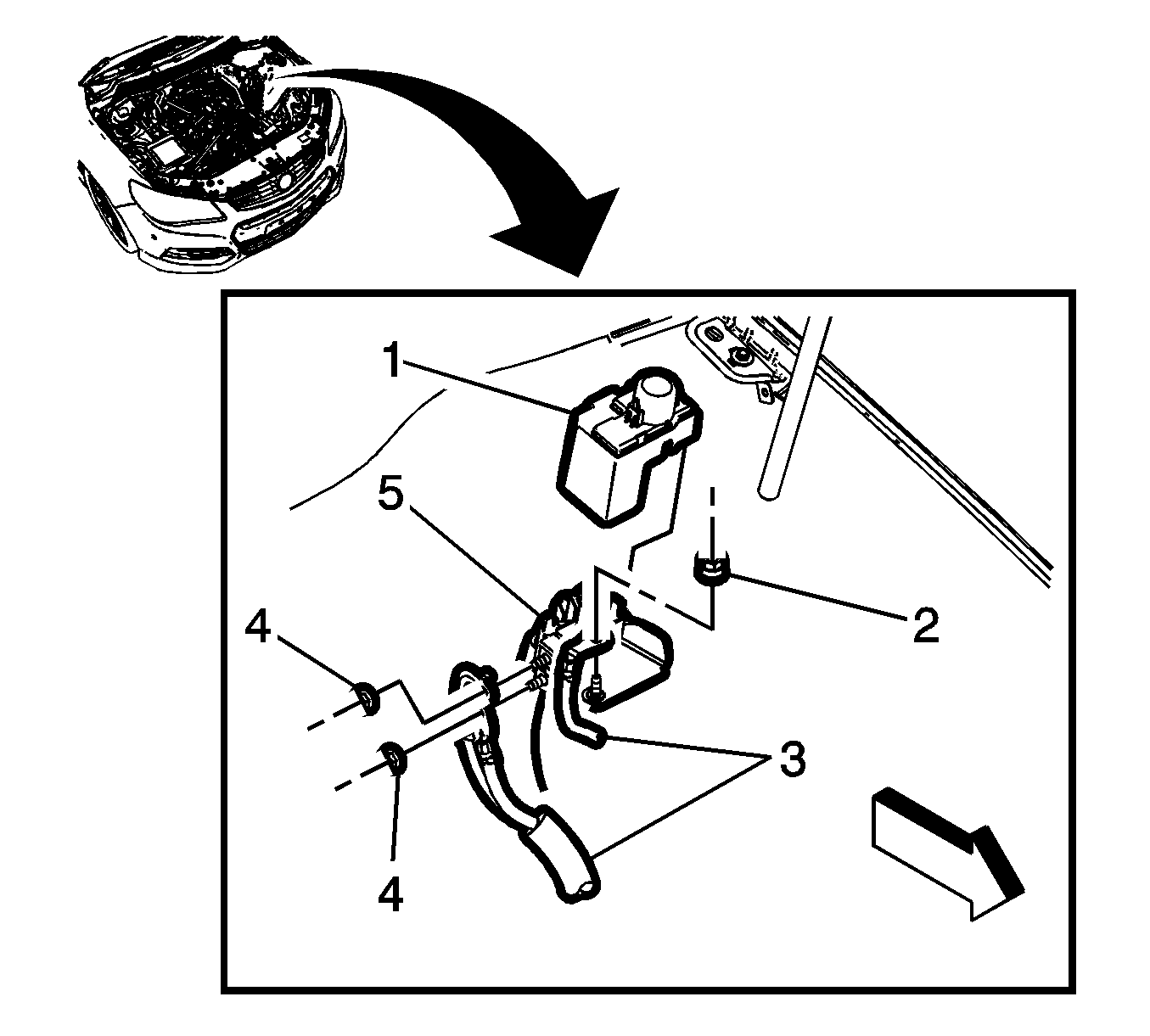

    12. Fig 7: Battery Positive Cables, Junction Block, Covers & Fasteners
    GM3218415Courtesy of GENERAL MOTORS COMPANY
  12. Install the engine wiring harness and battery positive cables (3) to the body front wiring harness fuse block (5).
  13. Install the fasteners (4) and tighten to 9 N.m (80 lb in).
  14. Install the fastener (2) and tighten to 9 N.m (80 lb in).
  15. Install the body front wiring harness fuse block cover (1).
  16. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
