Rear Side Door Stationary Window Replacement

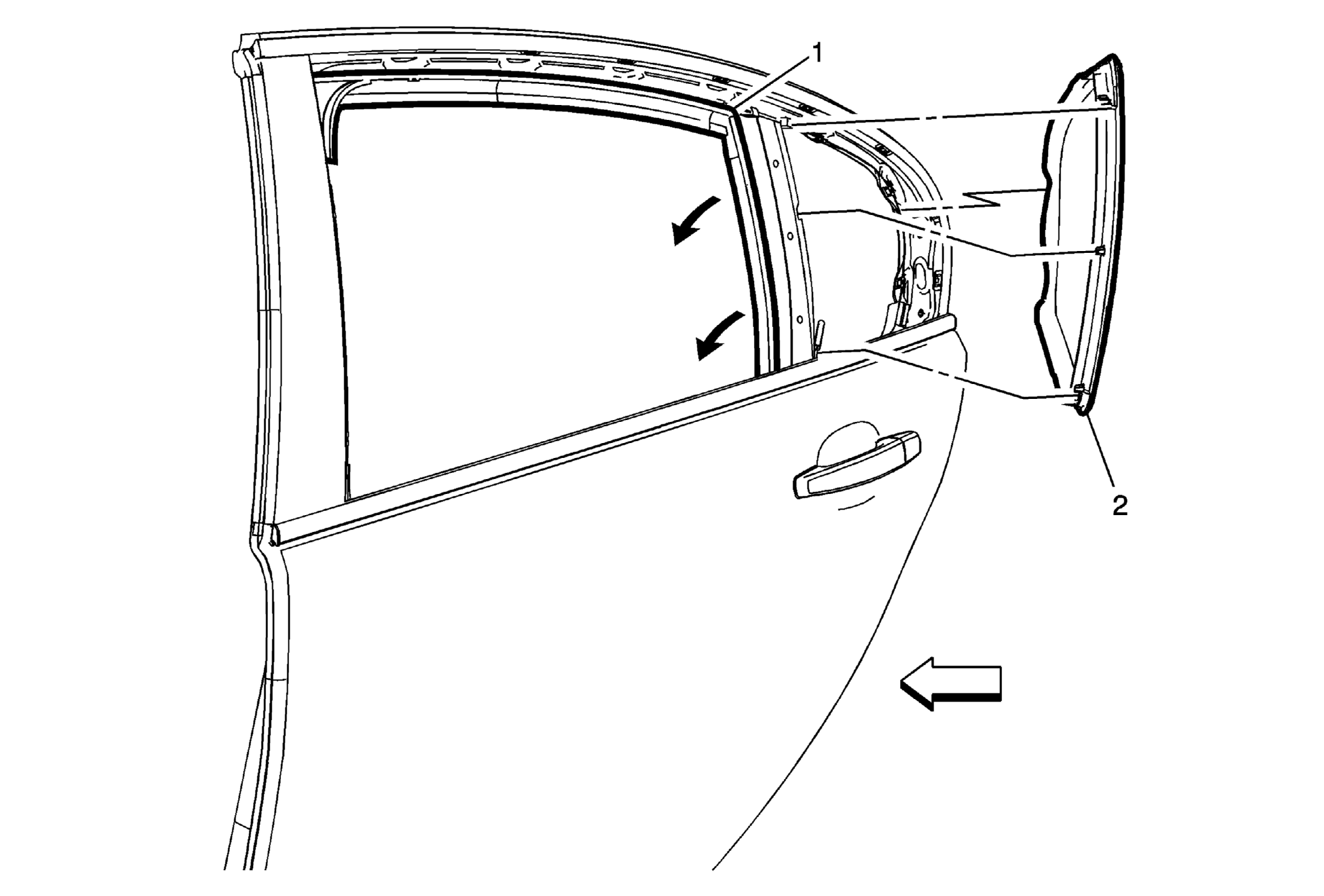

Fig 1: Rear Side Door Stationary Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
1	Rear Side Door Upper Cover Procedure  Remove the rear side door upper cover from the door.
2	Rear Side Door Stationary Window Procedure  Remove the rear side door stationary window from the door.
