Rear Compartment Lid Latch Replacement

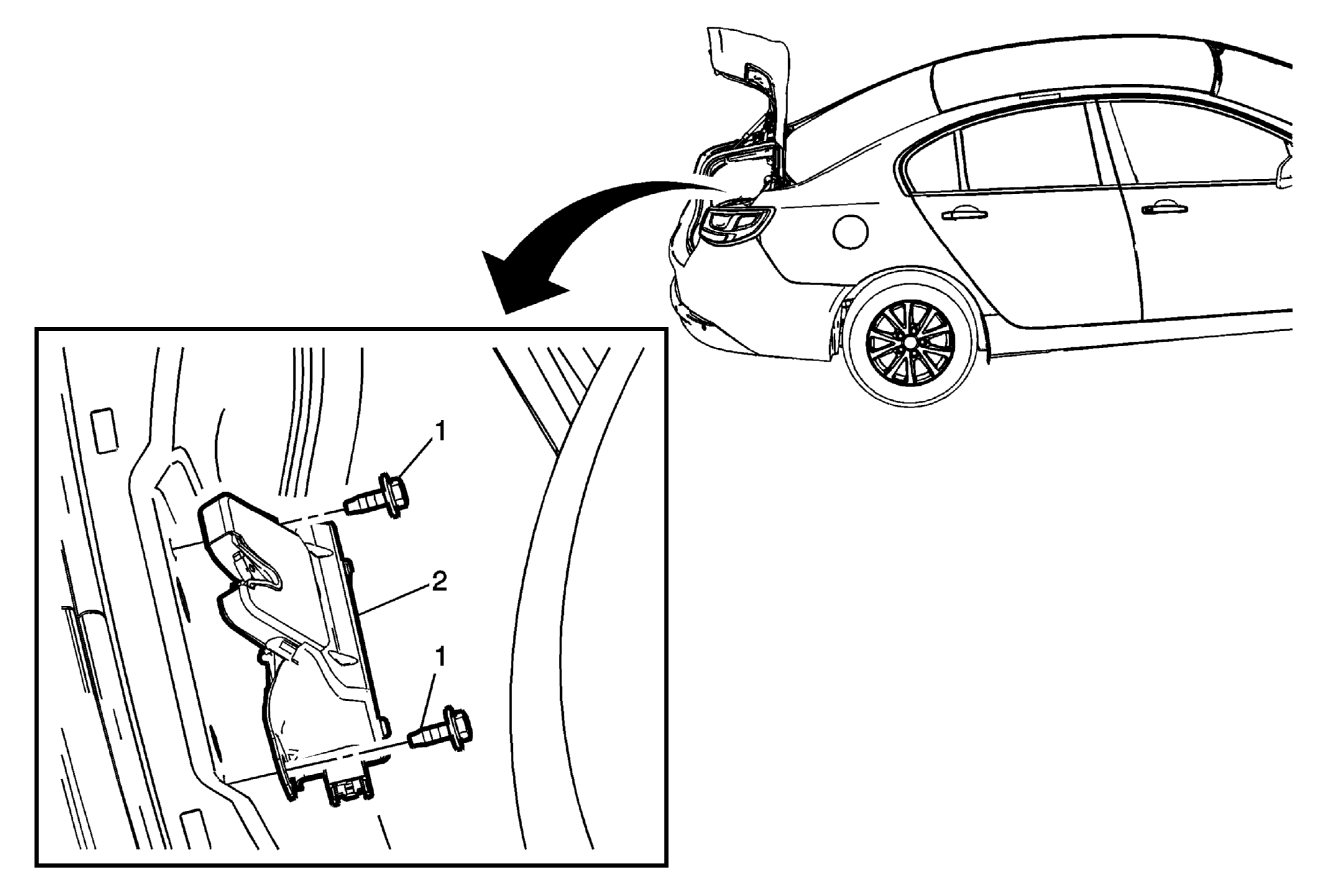

Fig 1: Rear Compartment Lid Latch

GM3020288

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement
Remove the liftgate sill garnish molding. Liftgate Sill Garnish Molding Replacement

1

Rear Compartment Lid Latch Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Rear Compartment Lid Latch

Procedure

Disconnect the electrical connector if equipped.
Disconnect the rear compartment lid latch release cable if equipped.
