Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement . |
| 1 |

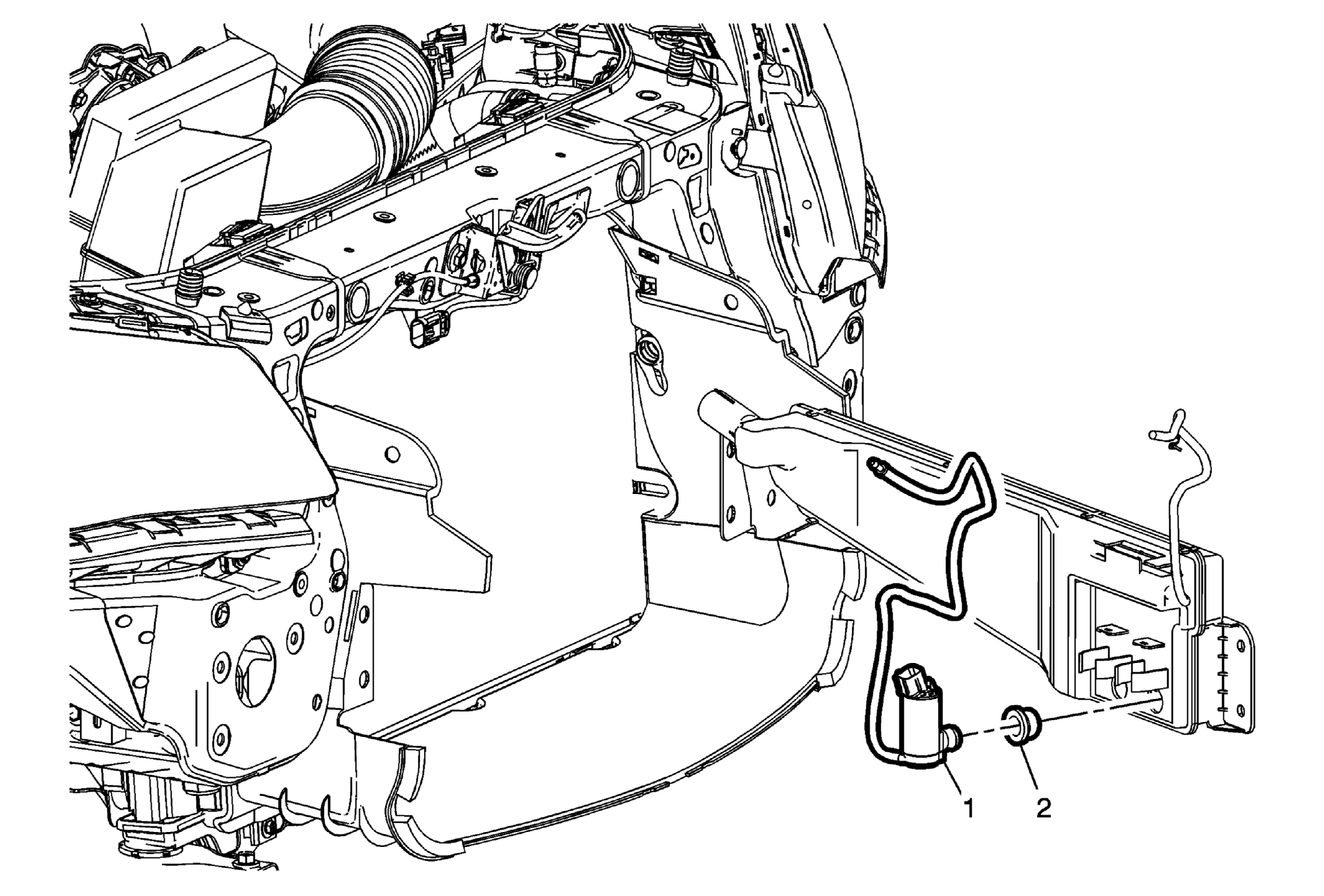

Windshield Washer Pump Procedure
- Disconnect the washer solvent jumper hose from the washer pump to the container.
- Use two medium sized flat-bladed tools, insert the blades under the lip edge of the washer pump.
- Use a twisting motion in opposite directions, gently pry the washer pump from the washer solvent container grommet and windshield washer solvent container.
|
| 2 |
Windshield Washer Pump Grommet Procedure
- Remove and discard the windshield washer pump grommet.
- Use full strength windshield washer solvent when installing a new washer pump grommet into the windshield washer solvent container.
- Use full strength washer solvent when installing the washer pump into the previously installed washer pump grommet.
|
