Radio Front Speaker Grille Replacement

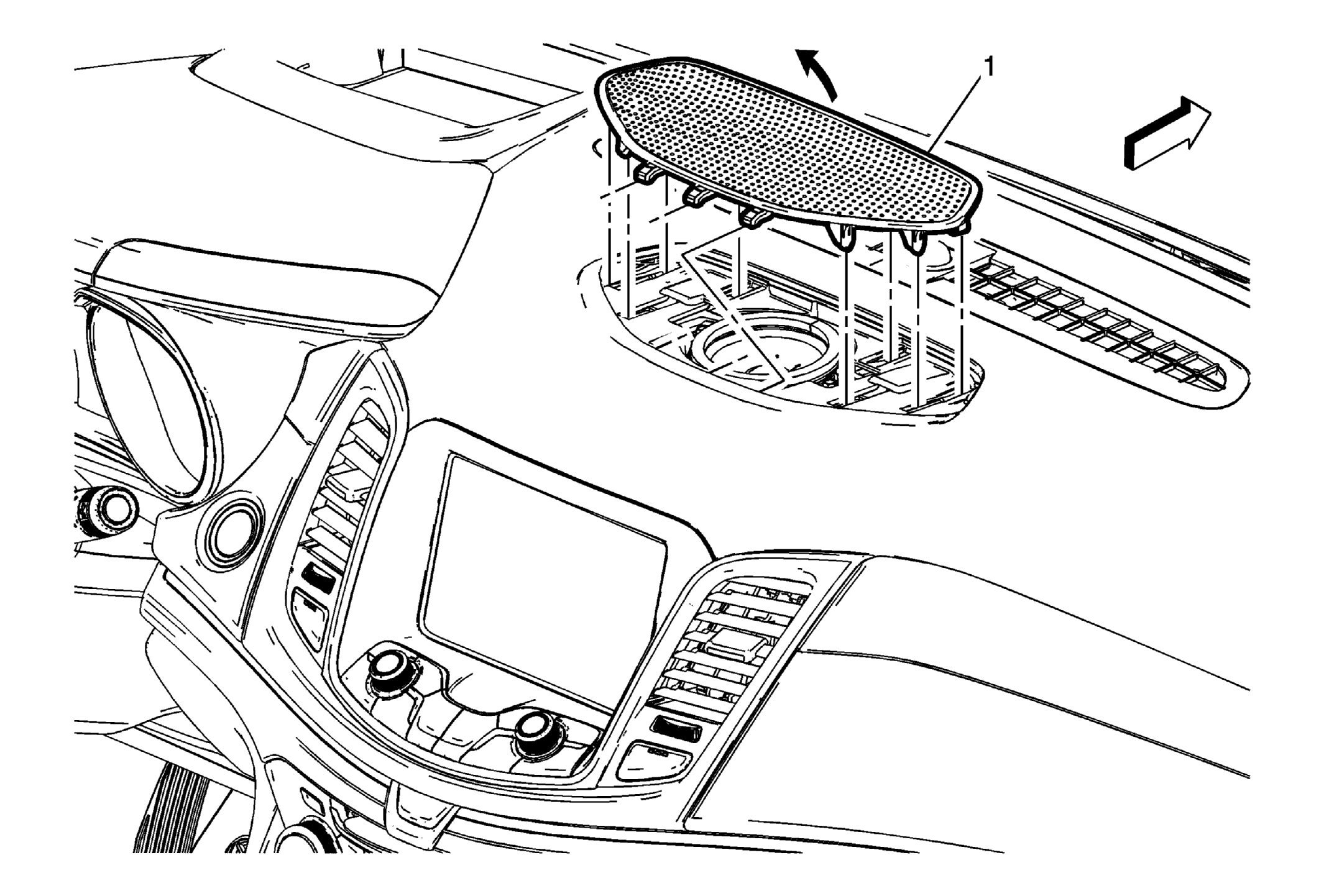

Fig 1: Radio Front Speaker Grille
GM3559714Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Front Speaker Grille
Procedure
Use a plastic flat bladed tool to lever upwards at the windshield side. Tilt rearward to release the rear retainers and remove the grille assembly.
