Radio Rear Speaker Replacement

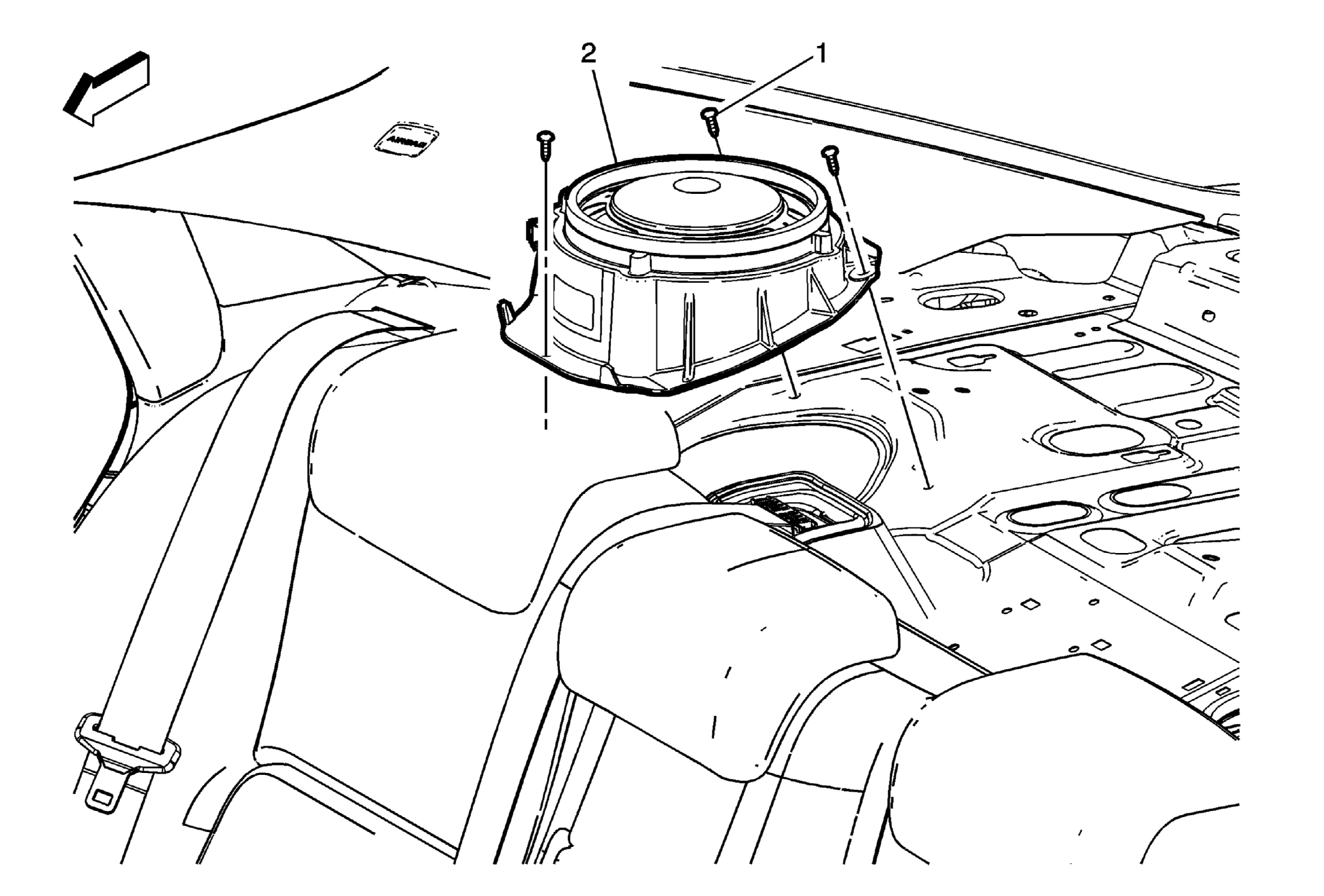

Fig 1: Radio Rear Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Radio Rear Speaker Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Radio Rear Speaker Procedure Disconnect the electrical connector.
