Fuel Tank Vent Pipe Replacement

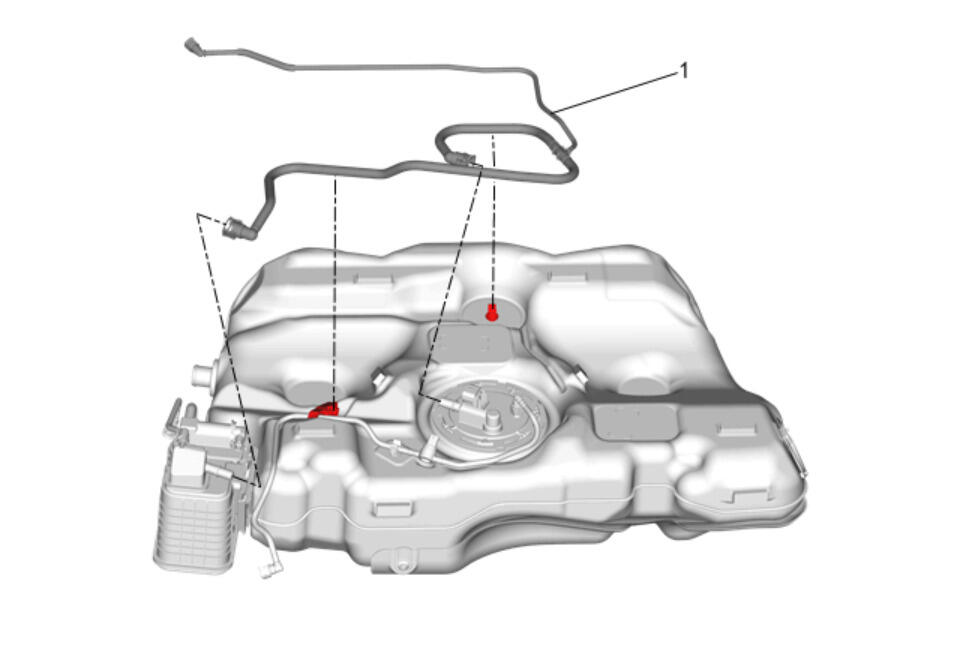

Fig 1: Fuel Tank Vent Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement
1	Fuel Tank Vent Pipe Procedure Disconnect the fuel tank vent pipe from the fuel tank fuel pump module and EVAP canister and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service
