Audio Disc Player and USB Receptacle Replacement

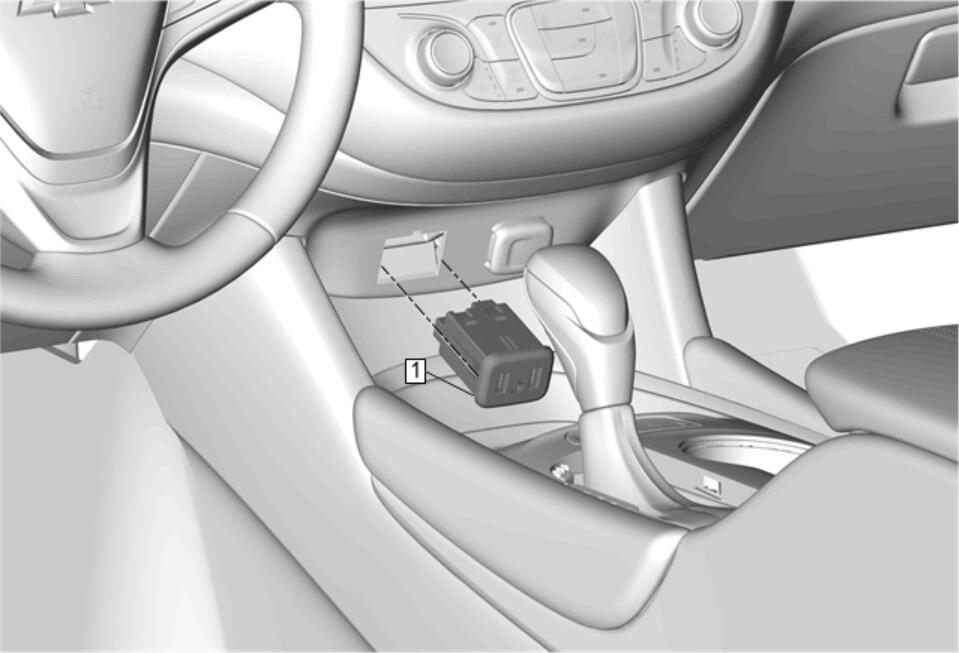

Fig 1: Audio Disc Player and USB Receptacle
GM4180895Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Audio Disc Player and USB Receptacle

Procedure

  1. Depress the tabs on the receptacle to remove.
  2. Disconnect the electrical connector.
