Rear Parking Assist Alarm Sensor Replacement

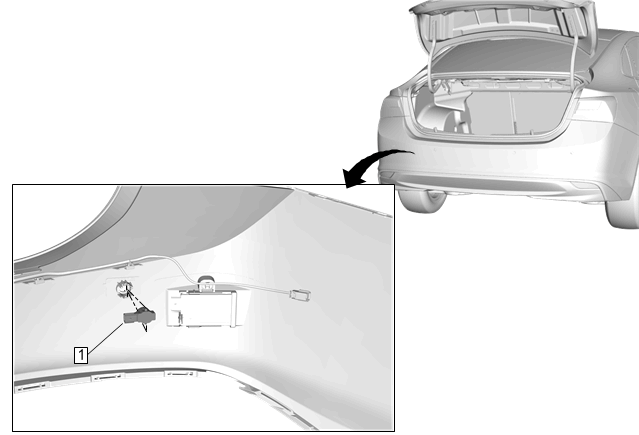

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Energy Absorber Replacement
1	Rear Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the rear object alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.

Callout

Component Name

Rear Parking Assist Alarm Sensor

Procedure

NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.
