Mass Airflow Sensor Replacement

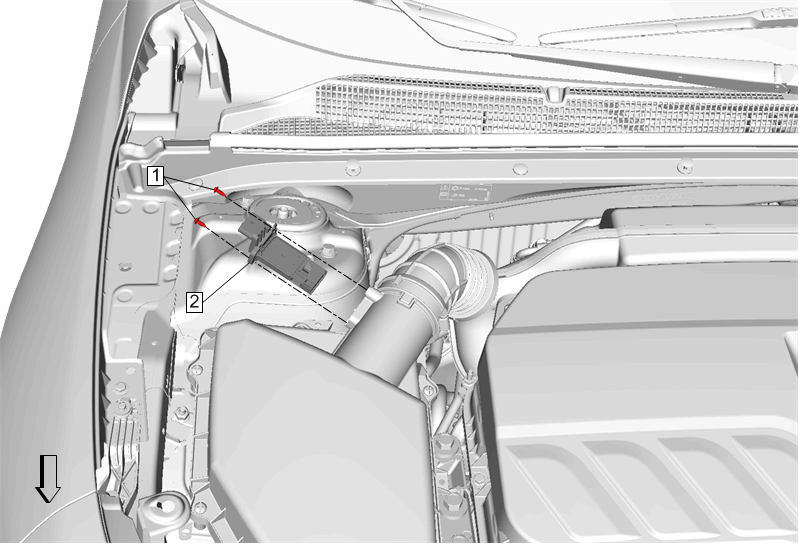

Fig 1: Mass Airflow Sensor
GM4319989Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor Bolt [2x]
CAUTION: Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
