Installation Procedure

  1. Exhaust Gas Recirculation Cooler Temperature Sensor Bracket (2) - Install

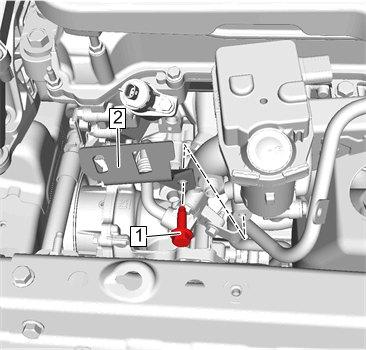

    Fig 1: Exhaust Gas Recirculation Cooler Temperature Sensor Bracket Bolt
    GM4332375Courtesy of GENERAL MOTORS COMPANY
  2. Exhaust Gas Recirculation Cooler Temperature Sensor Bracket Bolt (1) - Install and tighten 10 N.m (89 lb in)
    CAUTION: Refer to Fastener Caution .
  3. Retainer (1) - Install [2x]

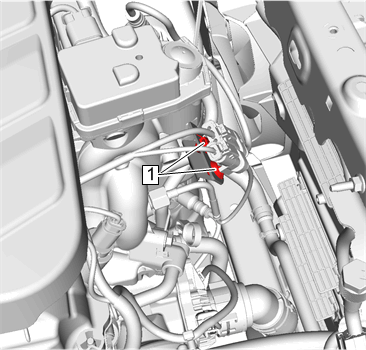

    Fig 2: Retainer
    GM4332372Courtesy of GENERAL MOTORS COMPANY
