MOST Bus and Communications Enable

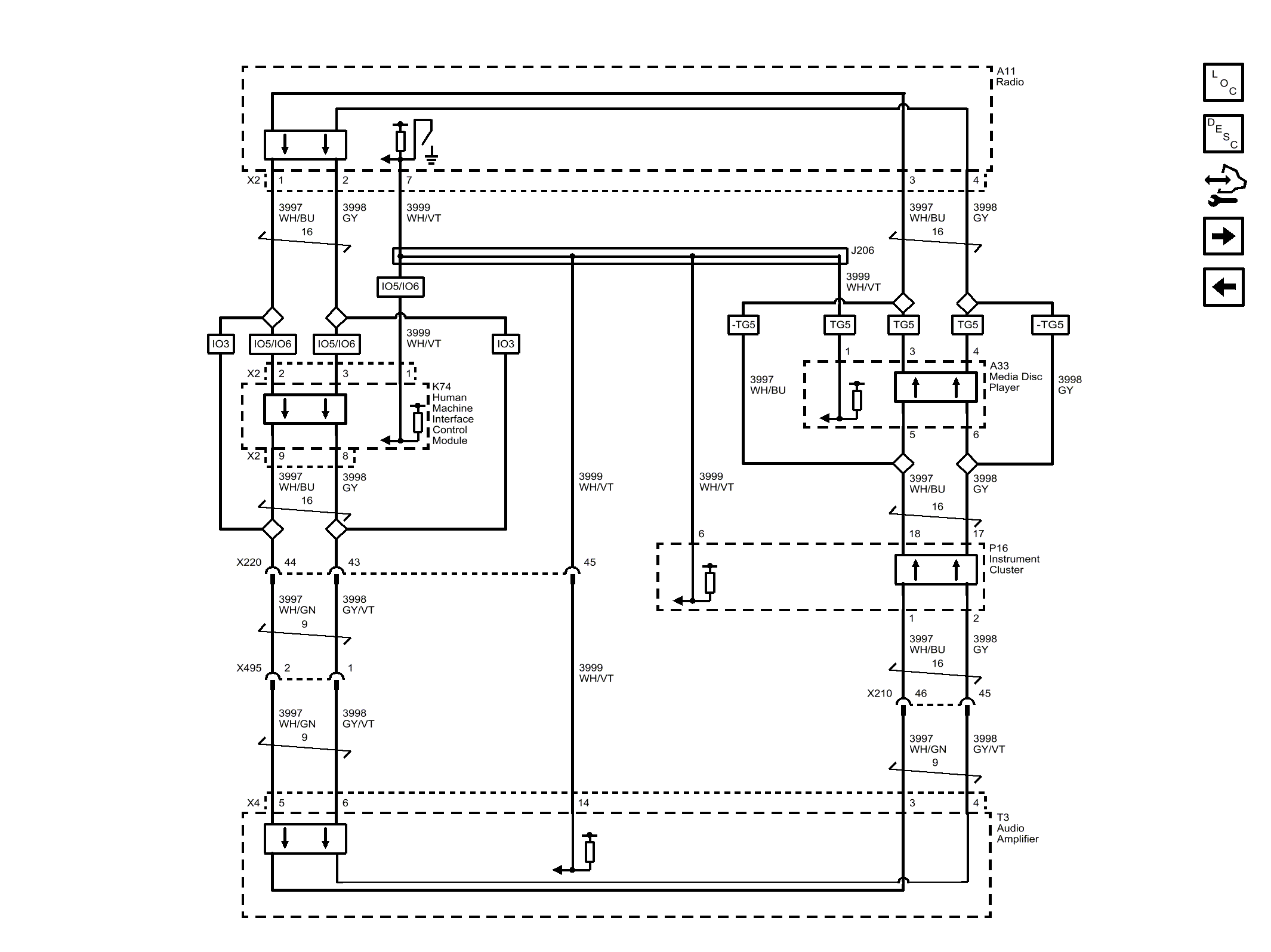

Fig 1: MOST Bus and Communications Enable

GM4355987

Courtesy of GENERAL MOTORS COMPANY
