Power, Ground, Data Communications and Subsystem References (1 of 3)

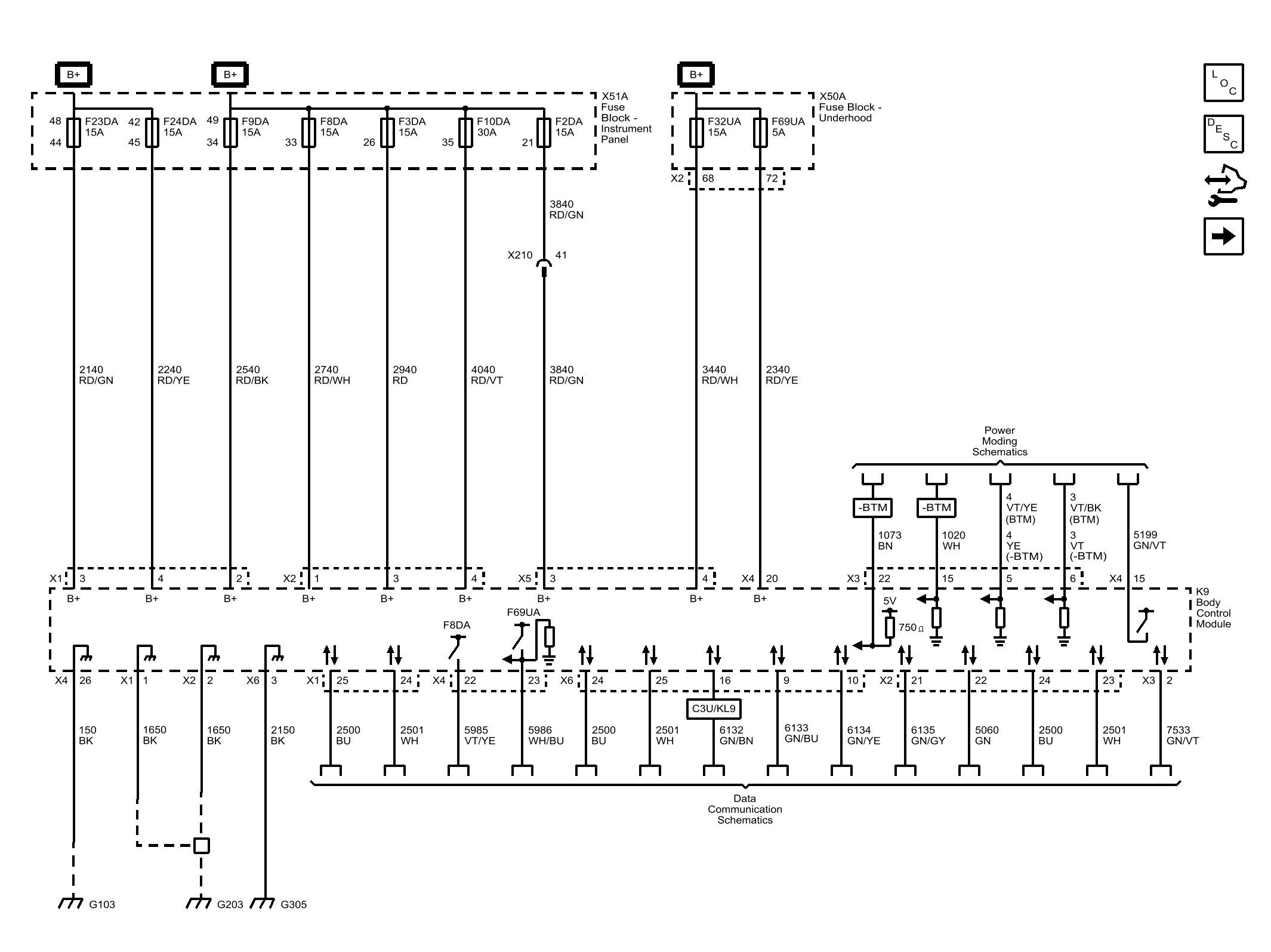

Fig 1: Power, Ground, Data Communications and Subsystem References (1 of 3)

GM4356010

Courtesy of GENERAL MOTORS COMPANY
