Secondary Air Injection Pump Replacement

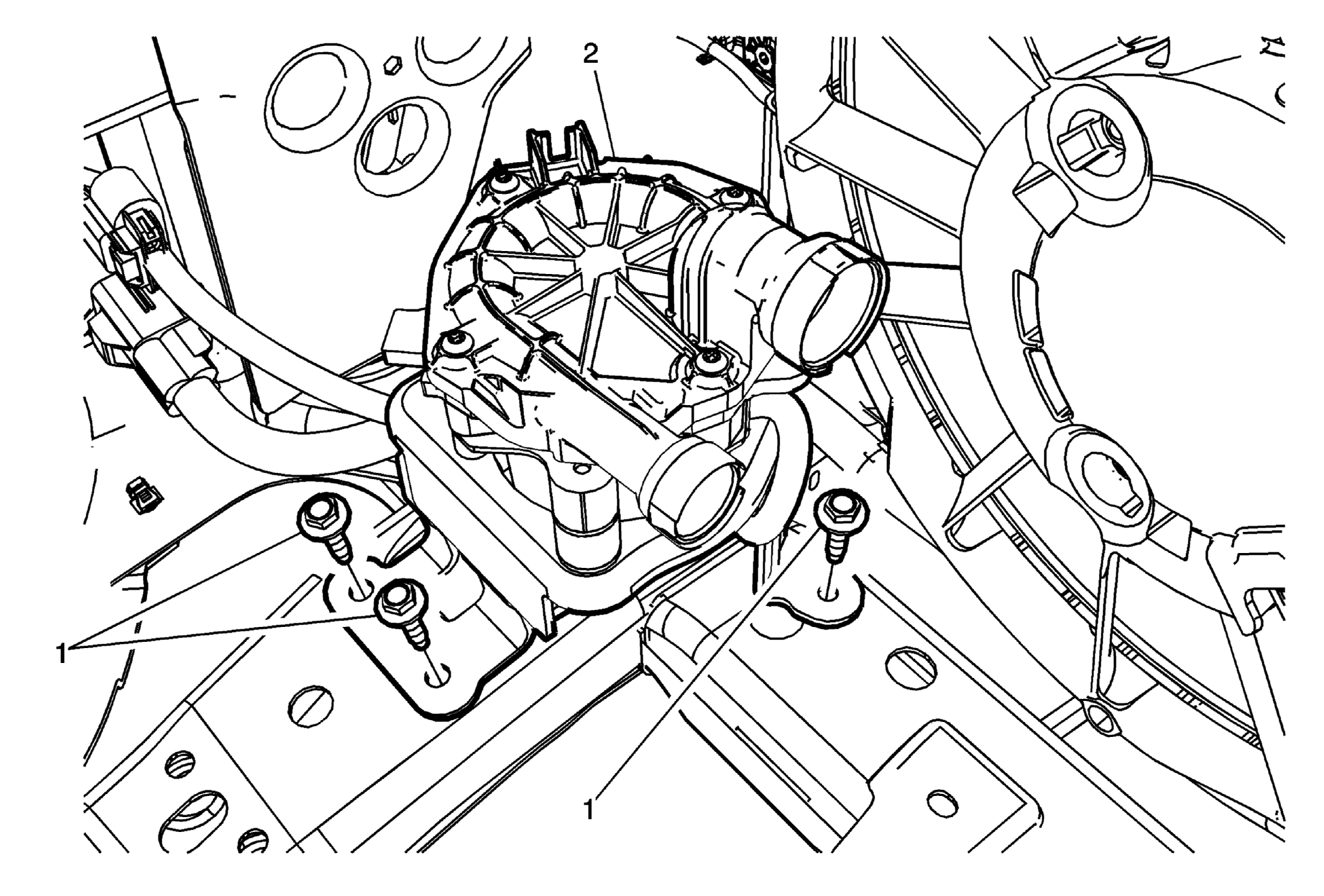

Fig 1: Secondary Air Injection Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) . Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement . Disconnect the secondary air injection pipe. Refer to Secondary Air Injection Pipe Replacement .
1	Secondary Air Injection Pump Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Secondary Air Injection Pump Procedure Disconnect the electrical wiring harness connectors from the secondary air injection pump.

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .
Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement .
Disconnect the secondary air injection pipe. Refer to Secondary Air Injection Pipe Replacement .

Secondary Air Injection Pump Fasteners (Qty: 3)

CAUTION:

Tighten
10 N.m (89 lb in)

Secondary Air Injection Pump
Procedure
Disconnect the electrical wiring harness connectors from the secondary air injection pump.
