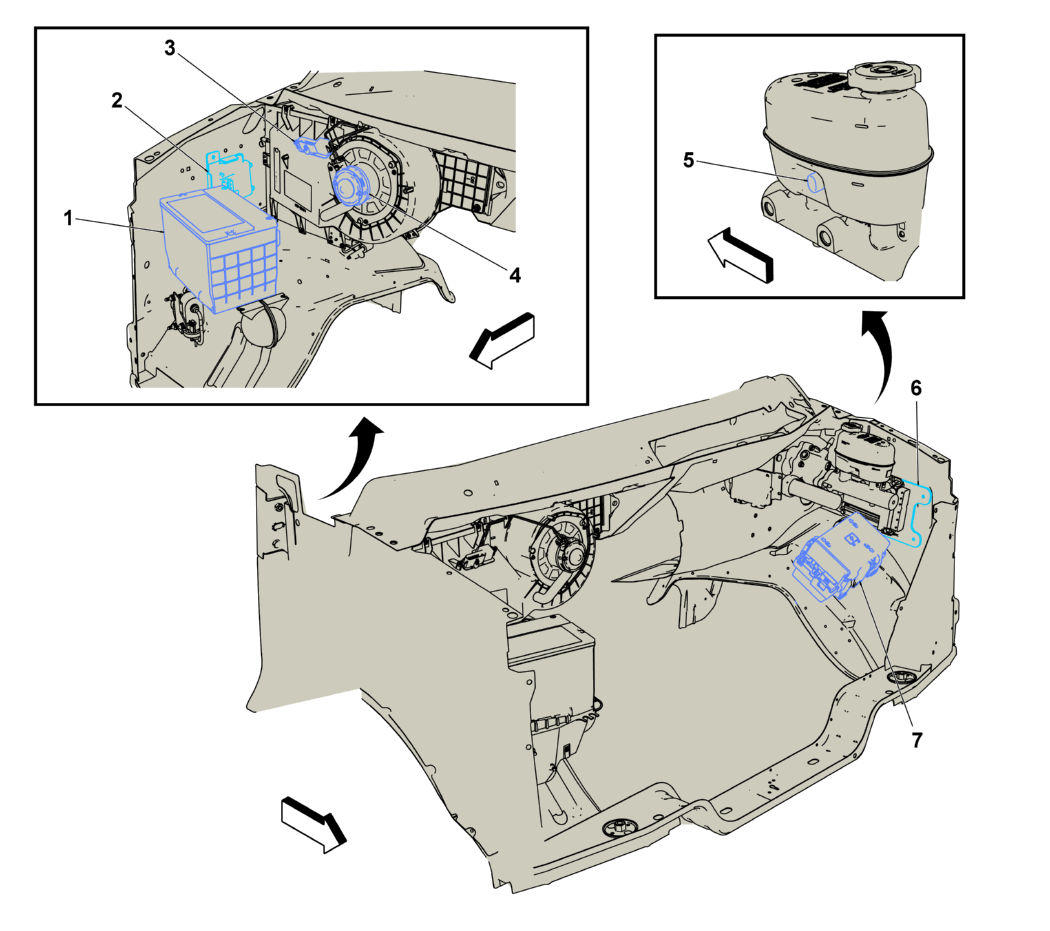

Engine Compartment Components (1 of 2)
Engine Compartment Components (1 of 2)
| Items |
|---|
| 1: G34 Evaporative Emission System Leak Detection Pump (L20/L96/LC8) |
| 2: C1 Battery C1 Battery ((+))C1 Battery ((-)) |
| 3: K71 Transmission Control Module K71 Transmission Control Module |
| 4: R3 Blower Motor Resistor R3 Blower Motor Resistor |
| 5: M8 Blower Motor |
| 6: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 7: K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X1 (L20/L96/LC8)K20 Engine Control Module X1 (LWN)K20 Engine Control Module X2 (L20/L96/LC8)K20 Engine Control Module X2 (LWN)K20 Engine Control Module X3 (L20/L96/LC8)K20 Engine Control Module X3 (LWN) |
| 8: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 |
