Installation Procedure

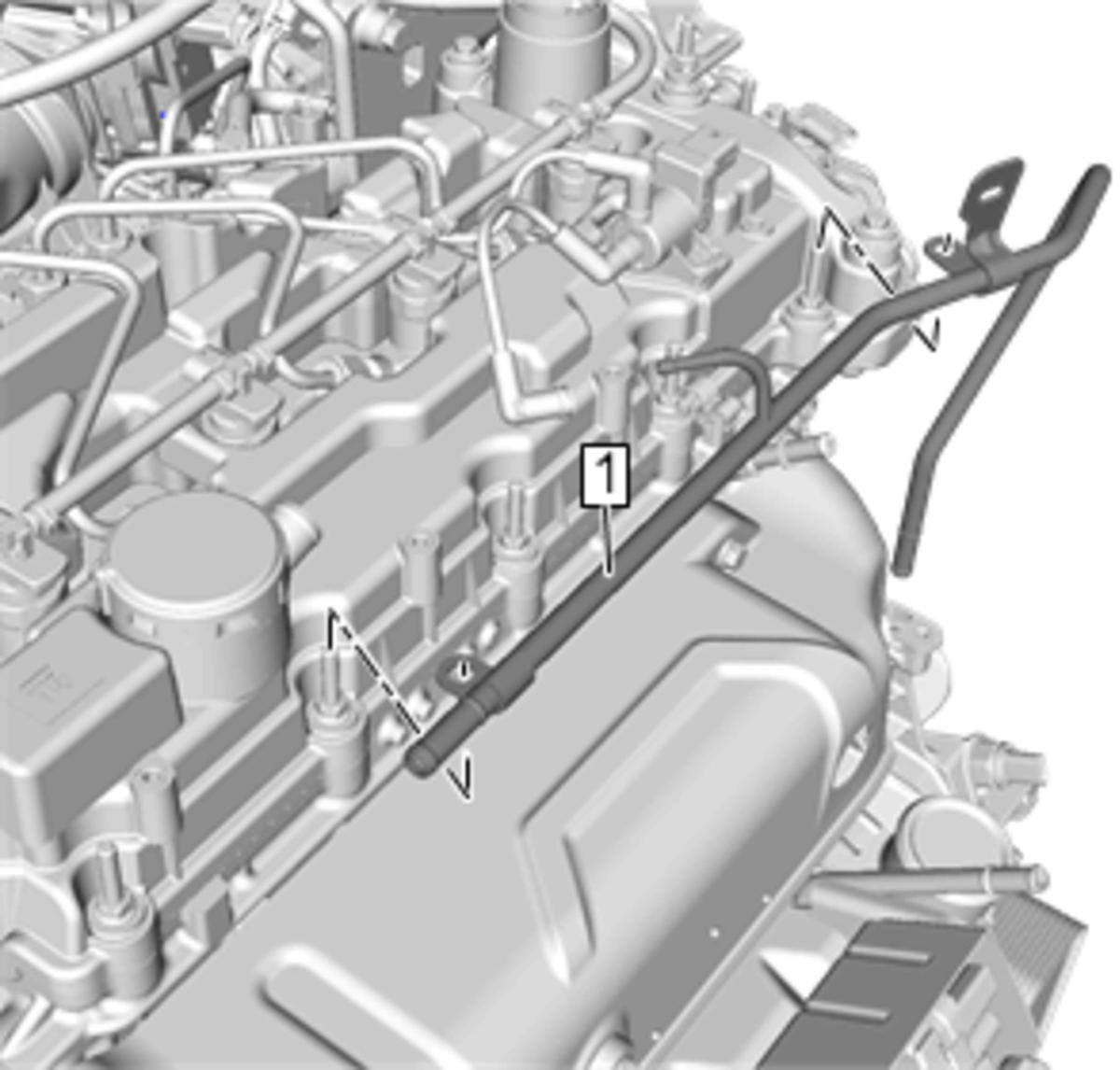

Install Vacuum Pump Pipe

Courtesy of
Position the engine wiring harness at the top of the engine back to its original routing.

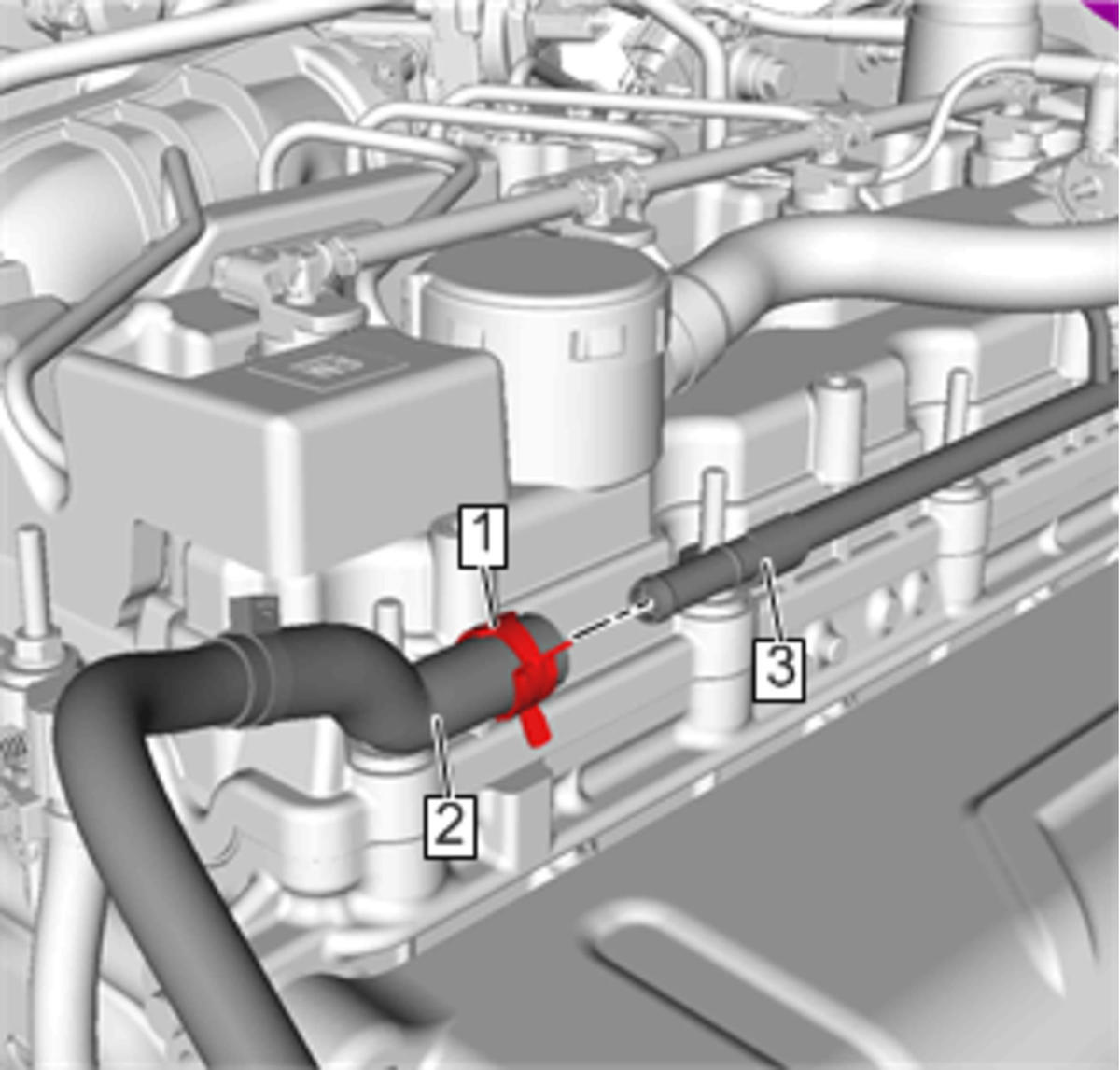

Connect Vacuum Pump Hose @ Vacuum Pump Pipe

Courtesy of
Engage Hose Clamp Refer to Hose Clamp Replacement Guidelines - Spring Type

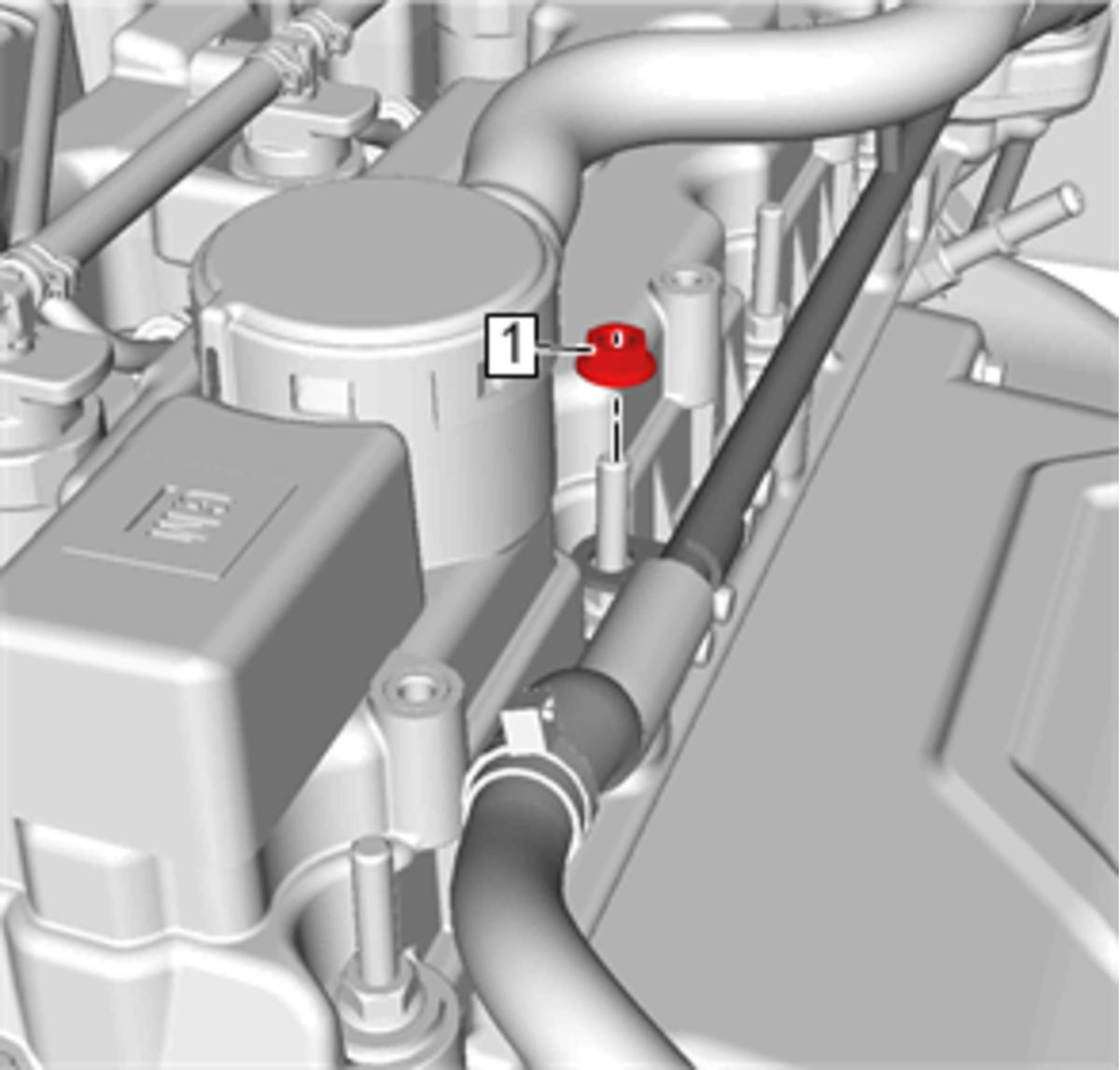

Install Exhaust Pressure Differential Sensor Nut and tighten 9 N.m. (80 lb in)

Courtesy of

CAUTION:
Refer to Fastener Caution .
Install Engine Cover Refer to Engine Cover Replacement

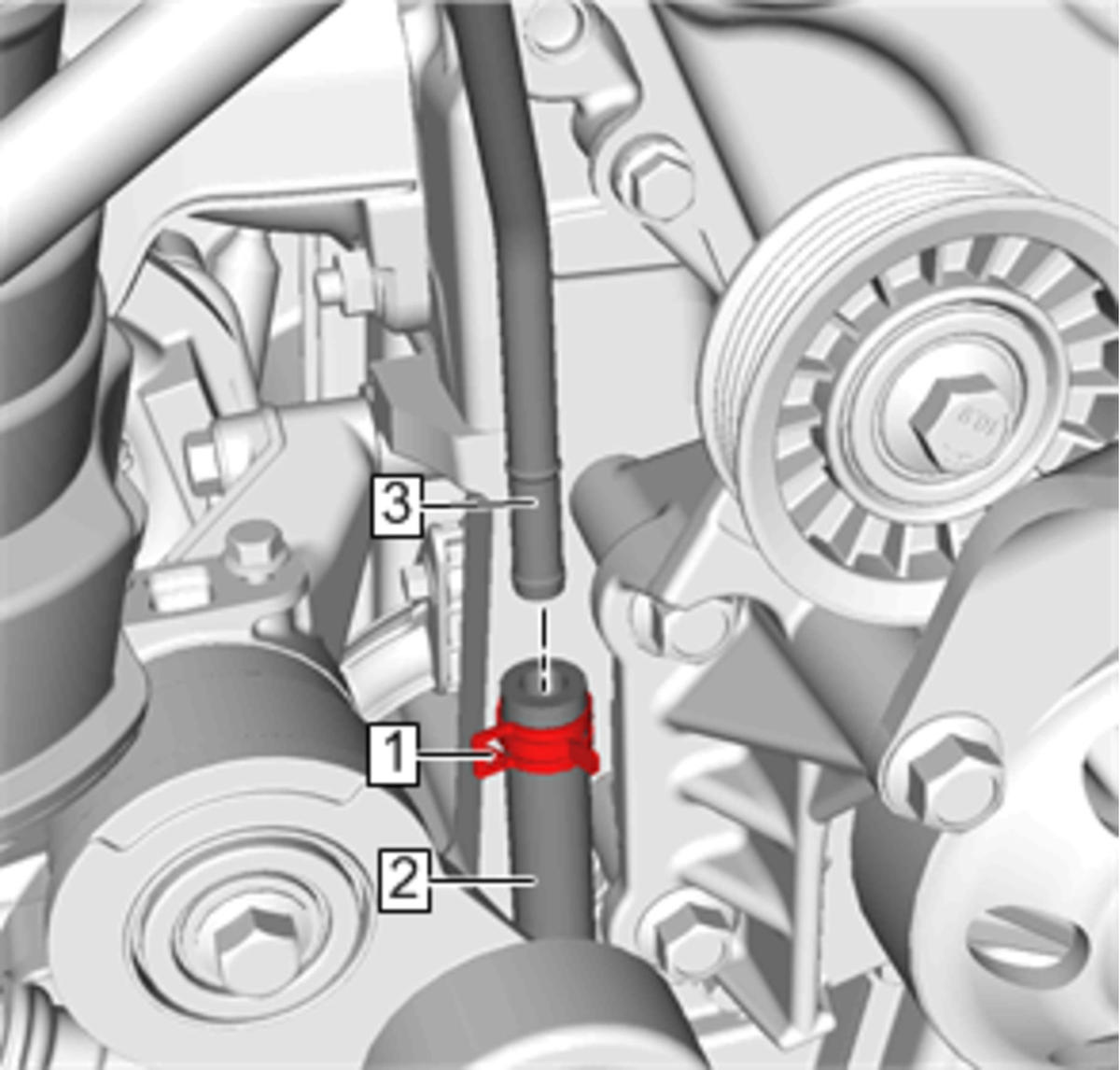

Connect Vacuum Pump Hose @ Vacuum Pump Pipe

Courtesy of
Engage Hose Clamp Refer to Hose Clamp Replacement Guidelines - Spring Type

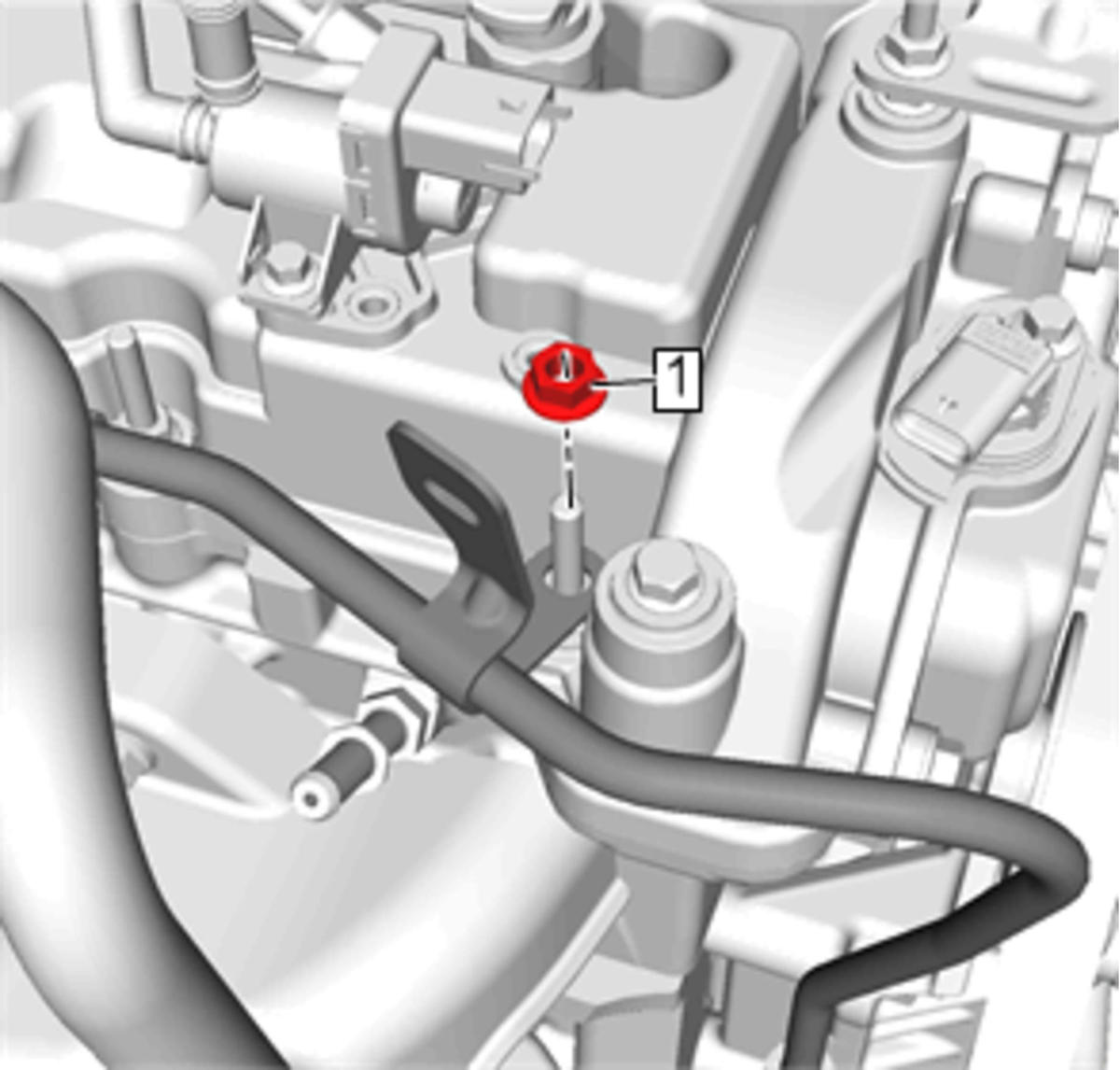

Exhaust Pressure Differential Sensor Nut and tighten 9 N.m. (80 lb in)

Courtesy of

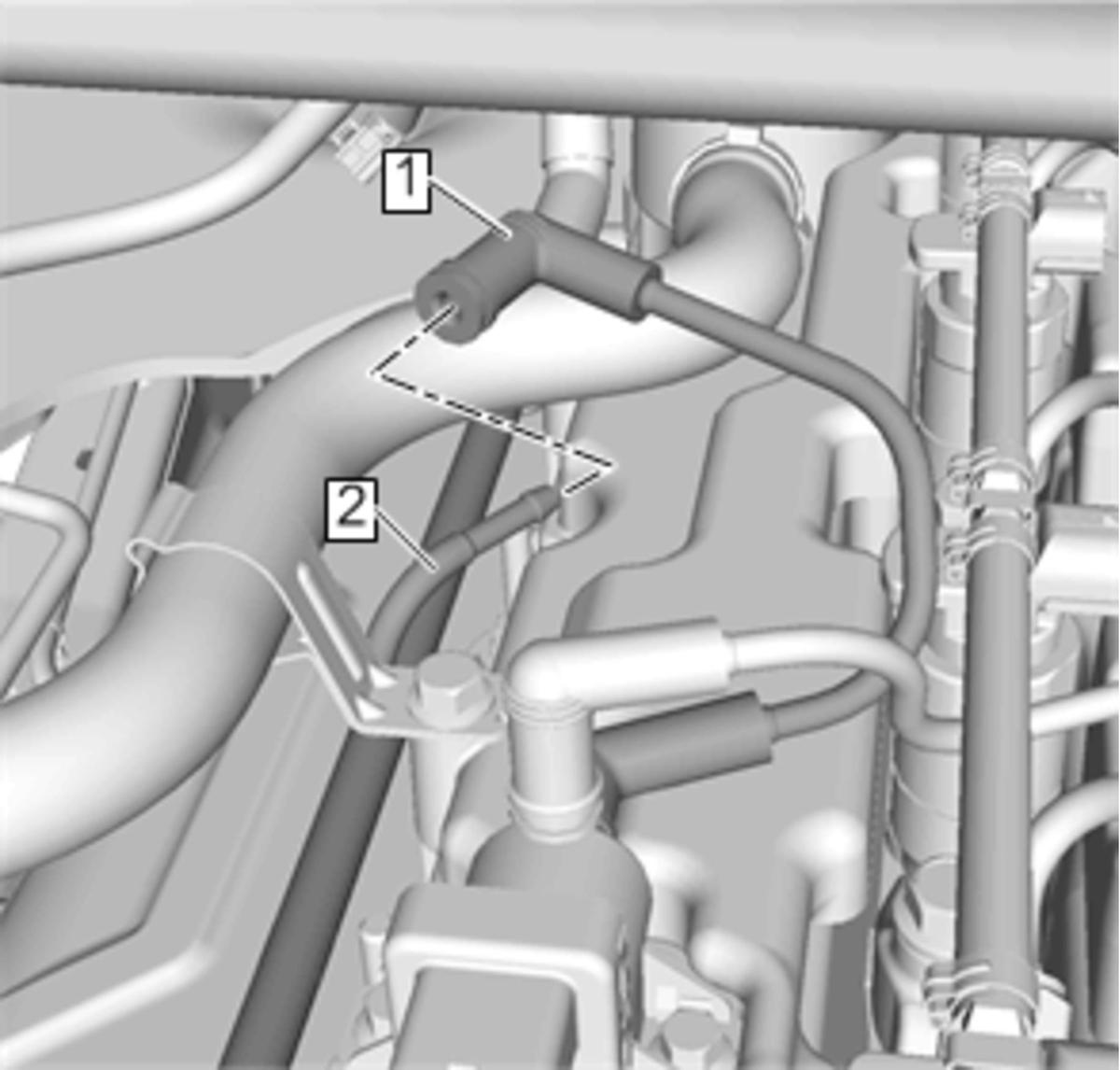

Connect Exhaust Gas Recirculation Valve Vacuum Pipe @ Vacuum Pump Pipe

Courtesy of

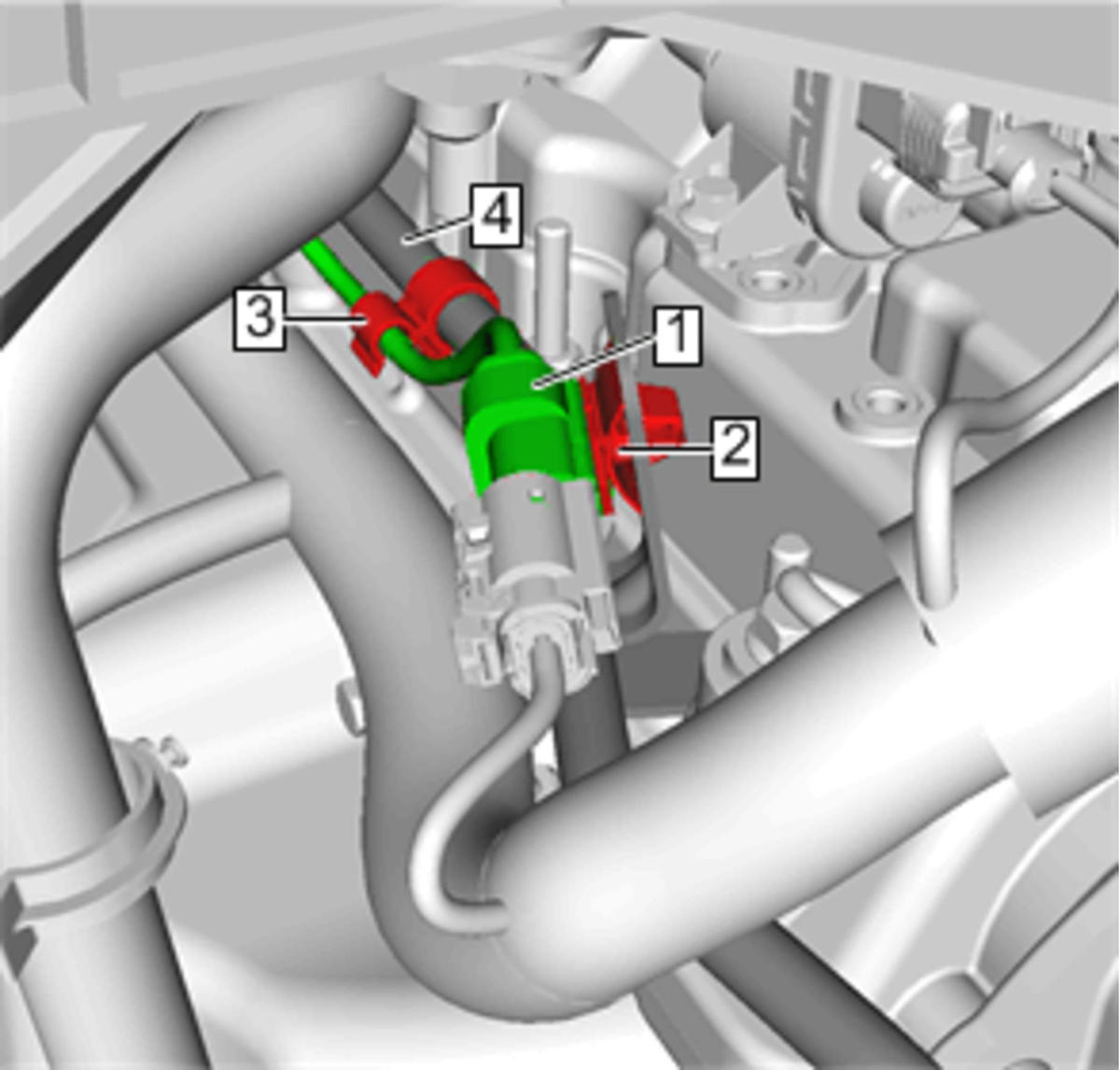

Install Retainer @ Vacuum Pump Pipe -

Courtesy of
Install Electrical Connector @ Retainer
Install Engine Coolant Fan Upper Shroud - Refer to or Engine Coolant Fan Upper Shroud Replacement (LWN)
