Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

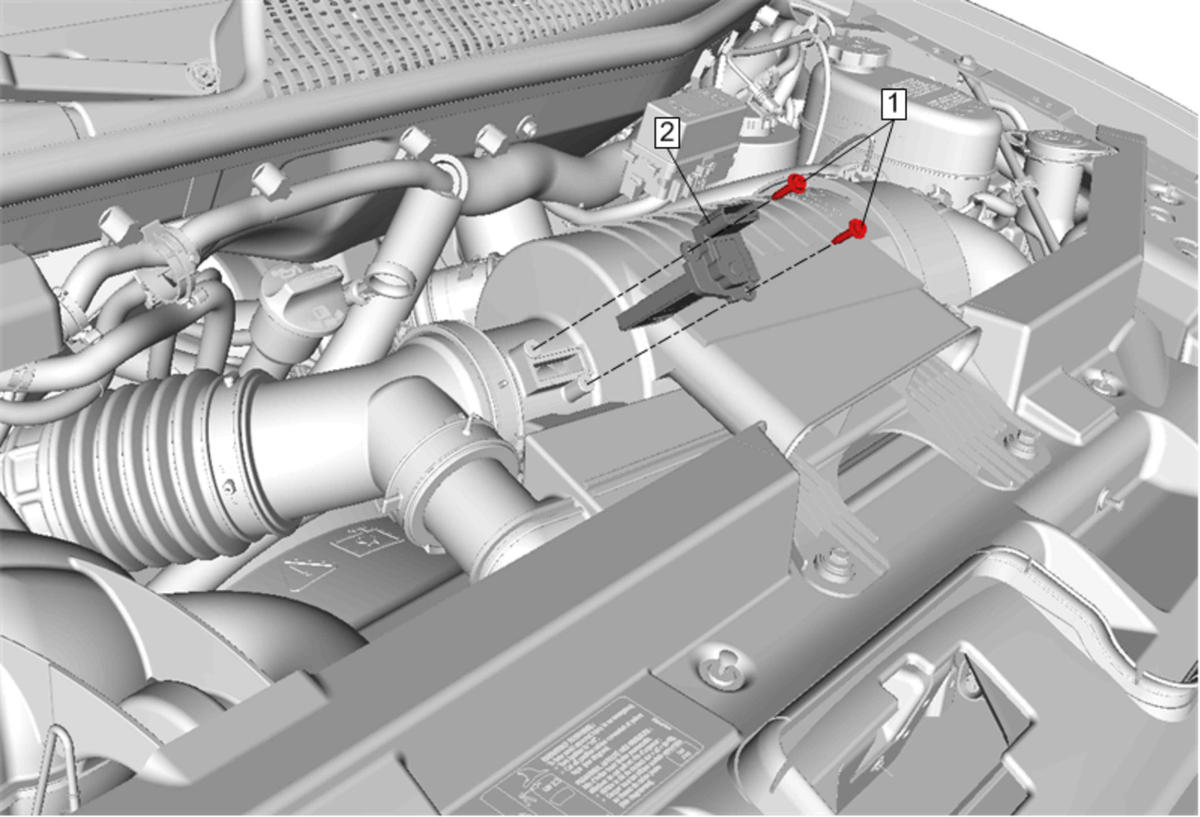

GM4601477Courtesy of
Callout Component Name
1 Mass Airflow Sensor Bolt [2x]
CAUTION:

Refer to Fastener Caution .


tighten
4 N.m. (35 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
