Fuel Tank Heat Shield Replacement

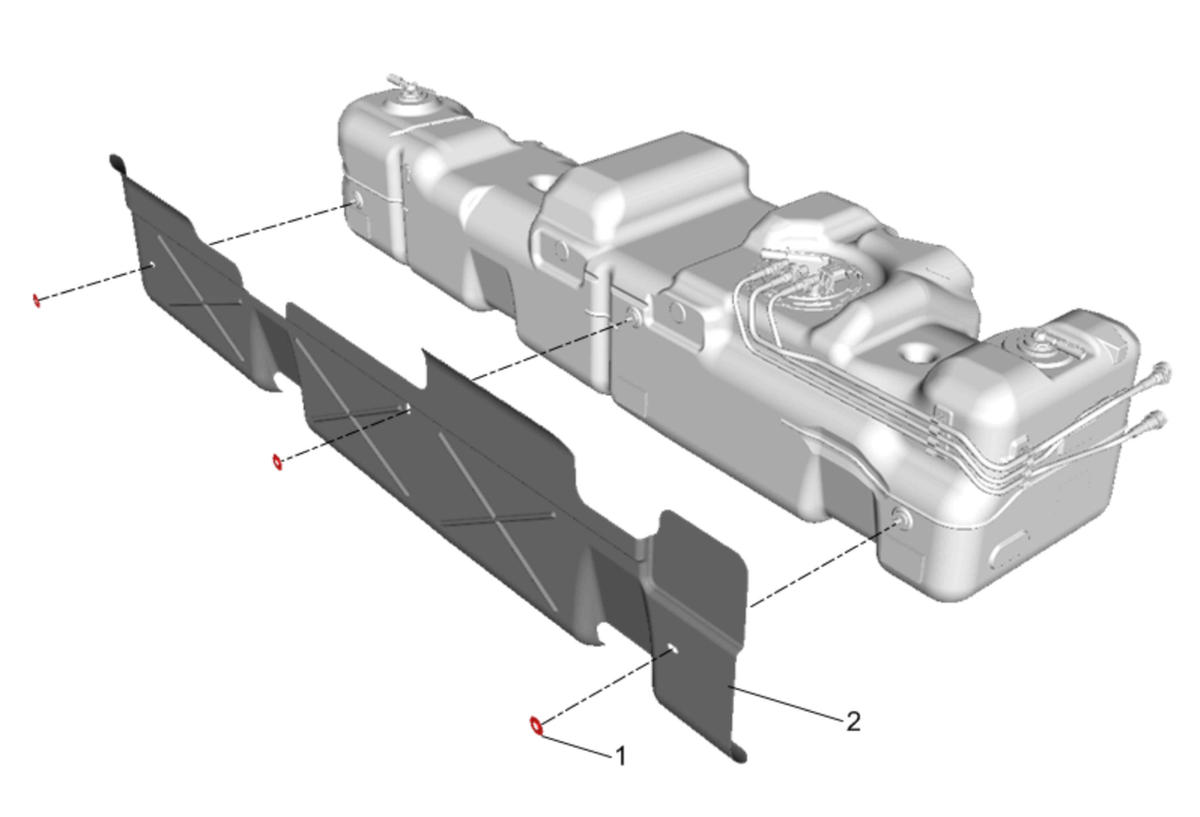

GM4601637Courtesy of
Callout Component Name
Preliminary Procedure
Refer to Fuel Tank Replacement
1 Fuel Tank Heat Shield Retainer [3x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Heat Shield
