Fuel Heater Replacement

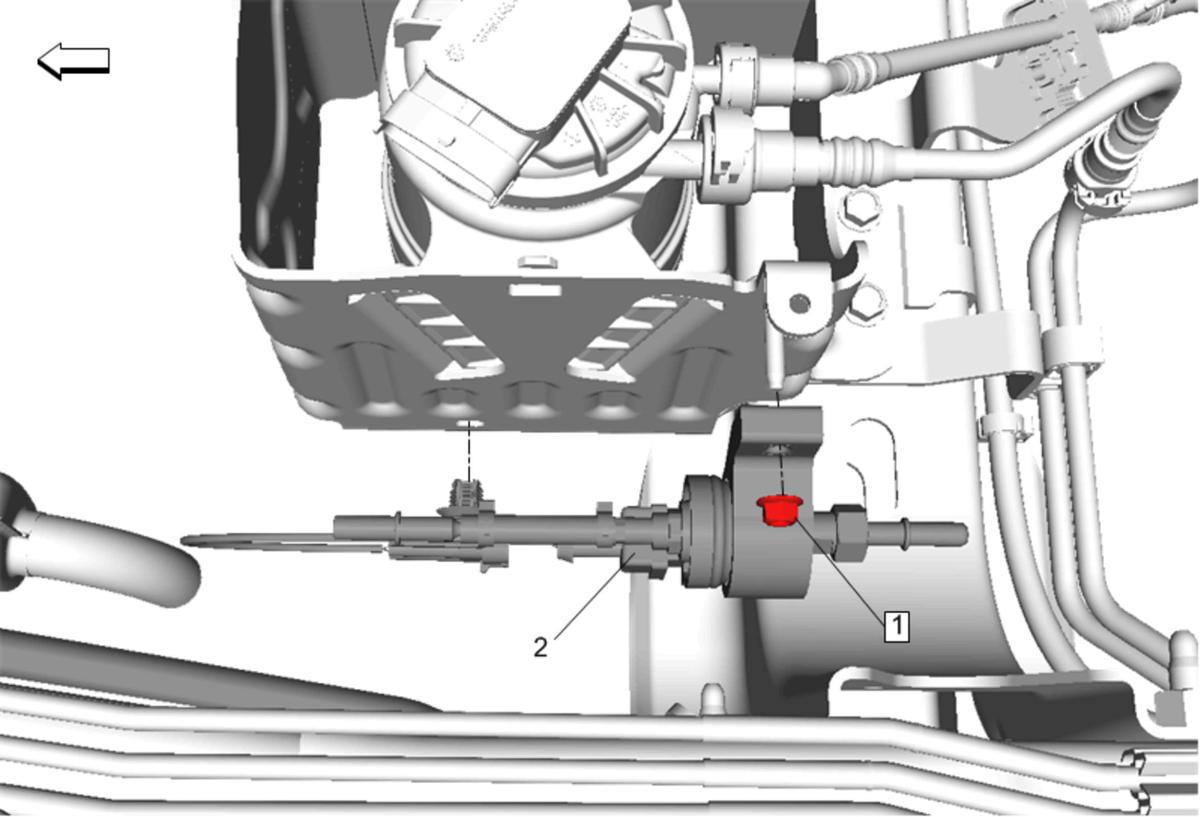

GM4601488Courtesy of
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Fuel Feed Rear Pipe - Refer to Plastic Collar Quick Connect Fitting Service
  3. Fuel Heater Pipe - Refer to Plastic Collar Quick Connect Fitting Service
  4. Disconnect the electrical connector.
1 Fuel Heater Nut
CAUTION:

Refer to Fastener Caution .


tighten
9 N.m. (80 lb in)
2 Fuel Heater
