Fuel Cooler Replacement

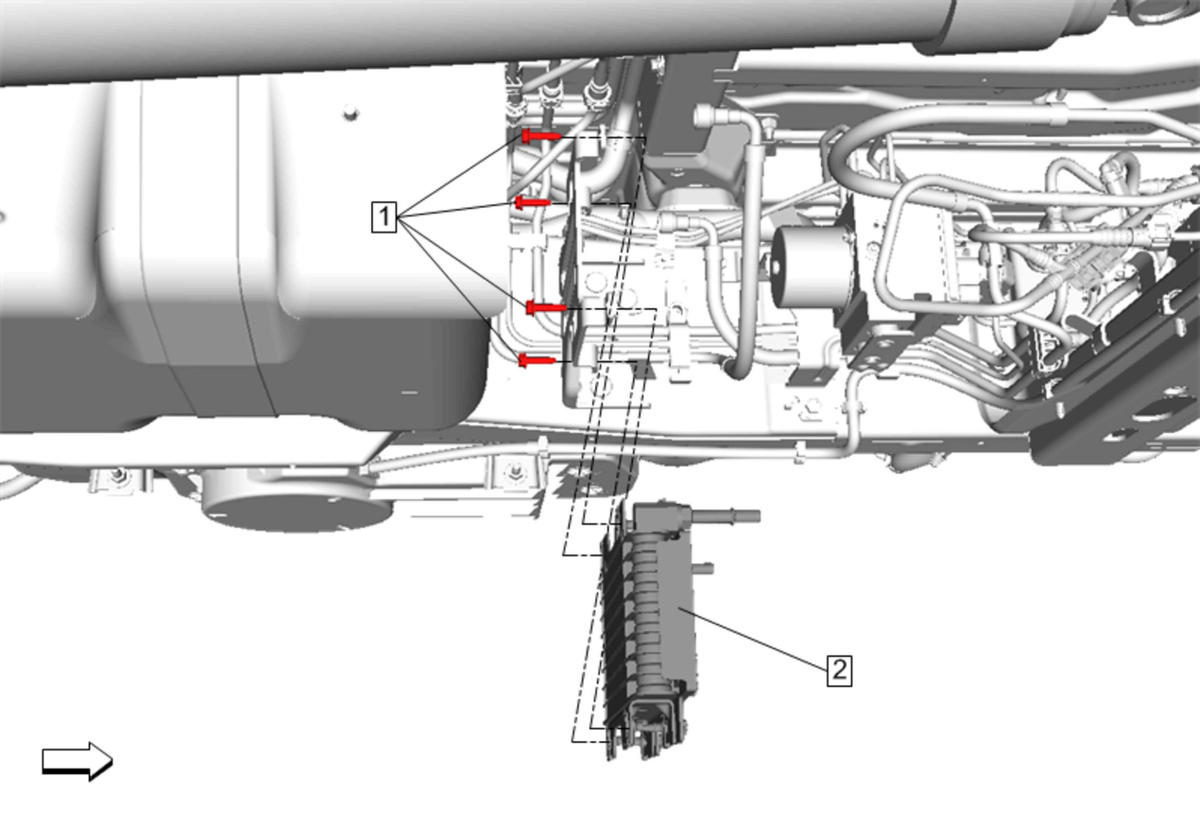

GM4605595Courtesy of
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Fuel Return Rear Pipe @ Fuel Cooler - Refer to Metal Collar Quick Connect Fitting Service  [2x]
1 Fuel Cooler Bolt [4x]
CAUTION:

Refer to Fastener Caution .


tighten
10 N.m. (89 lb in)
2 Fuel Cooler
