Exhaust Pressure Differential Sensor Replacement

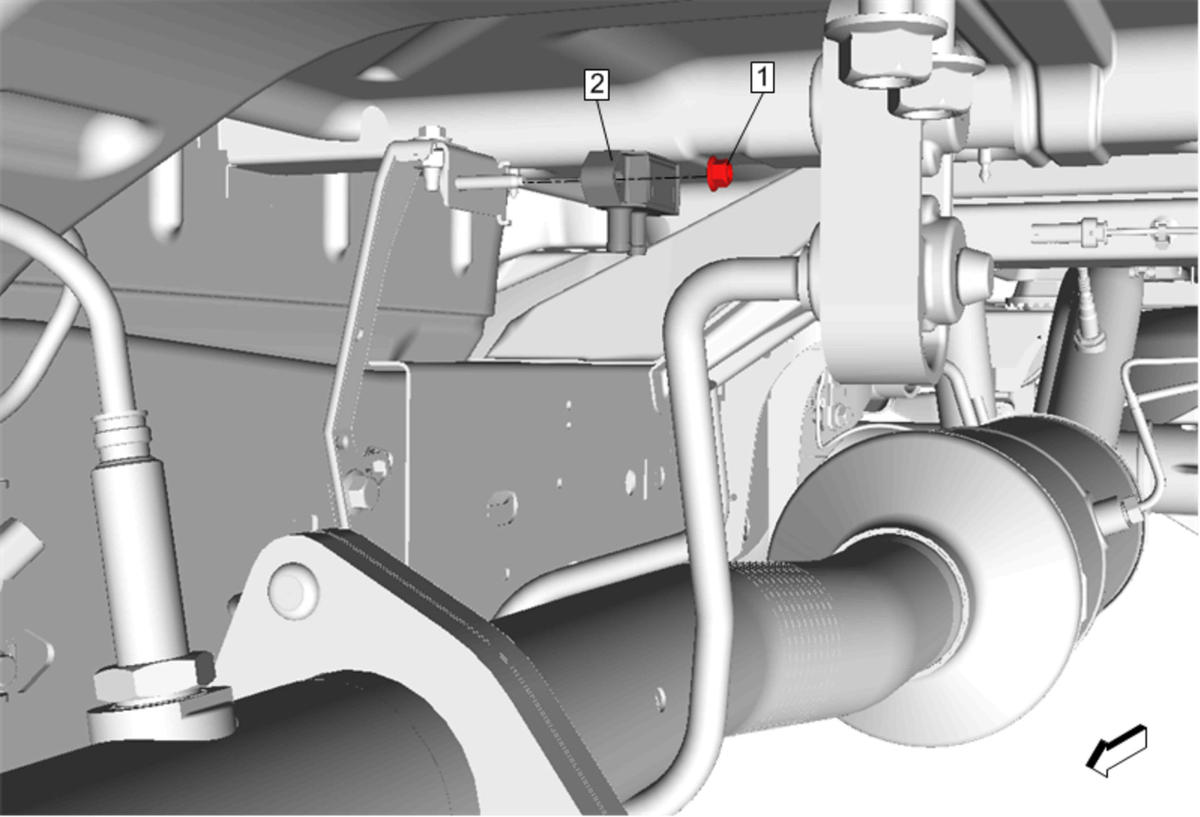

GM4626926Courtesy of
Callout Component Name
Preliminary Procedure
Exhaust Pressure Differential Sensor Pipe@Exhaust Pressure Differential Sensor - Refer to Exhaust Pressure Differential Sensor Pipe Replacement
1 Exhaust Pressure Differential Sensor Nut
CAUTION:

Refer to Fastener Caution .


tighten
10 N.m. (89 lb in)
2 Exhaust Pressure Differential Sensor

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, perform the DPF pressure sensor reset. Refer to DPF Pressure Sensor Reset
