Installation Procedure

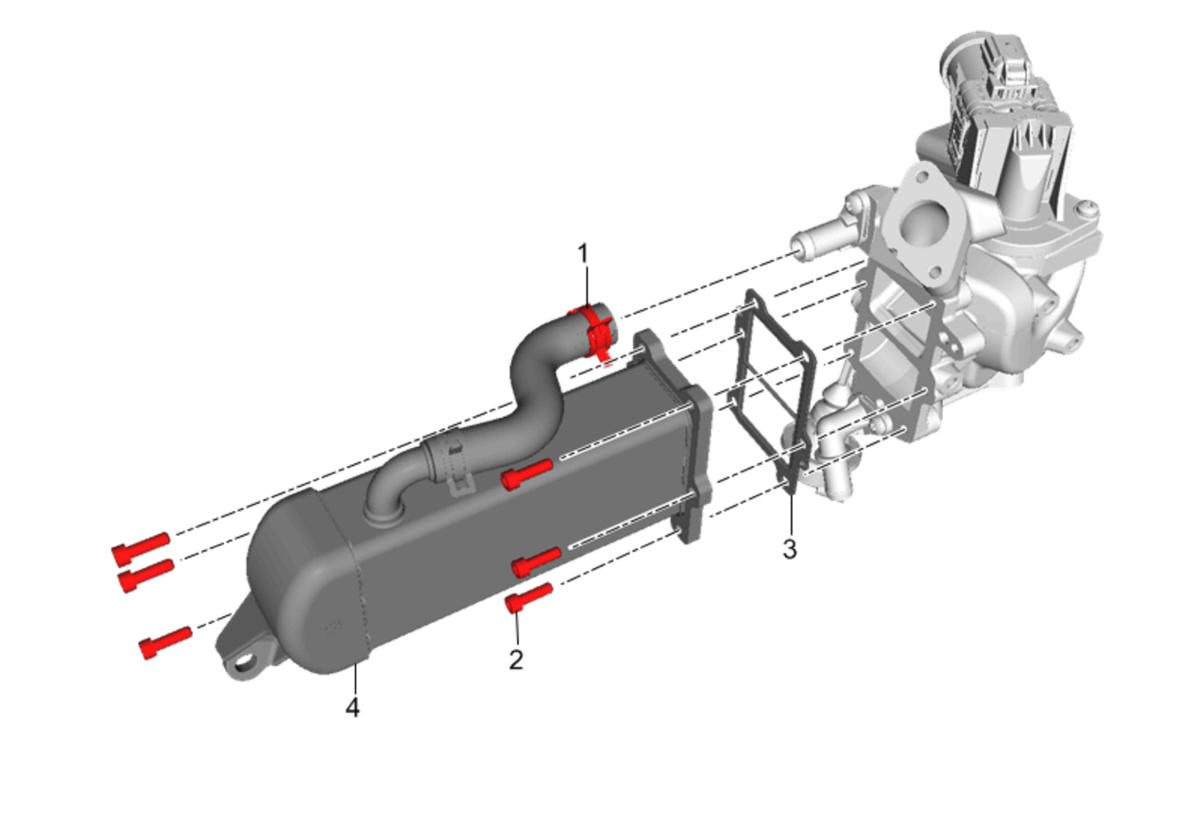

Install Exhaust Gas Recirculation Cooler. Refer to Exhaust Gas Recirculation Cooler Replacement

Courtesy of

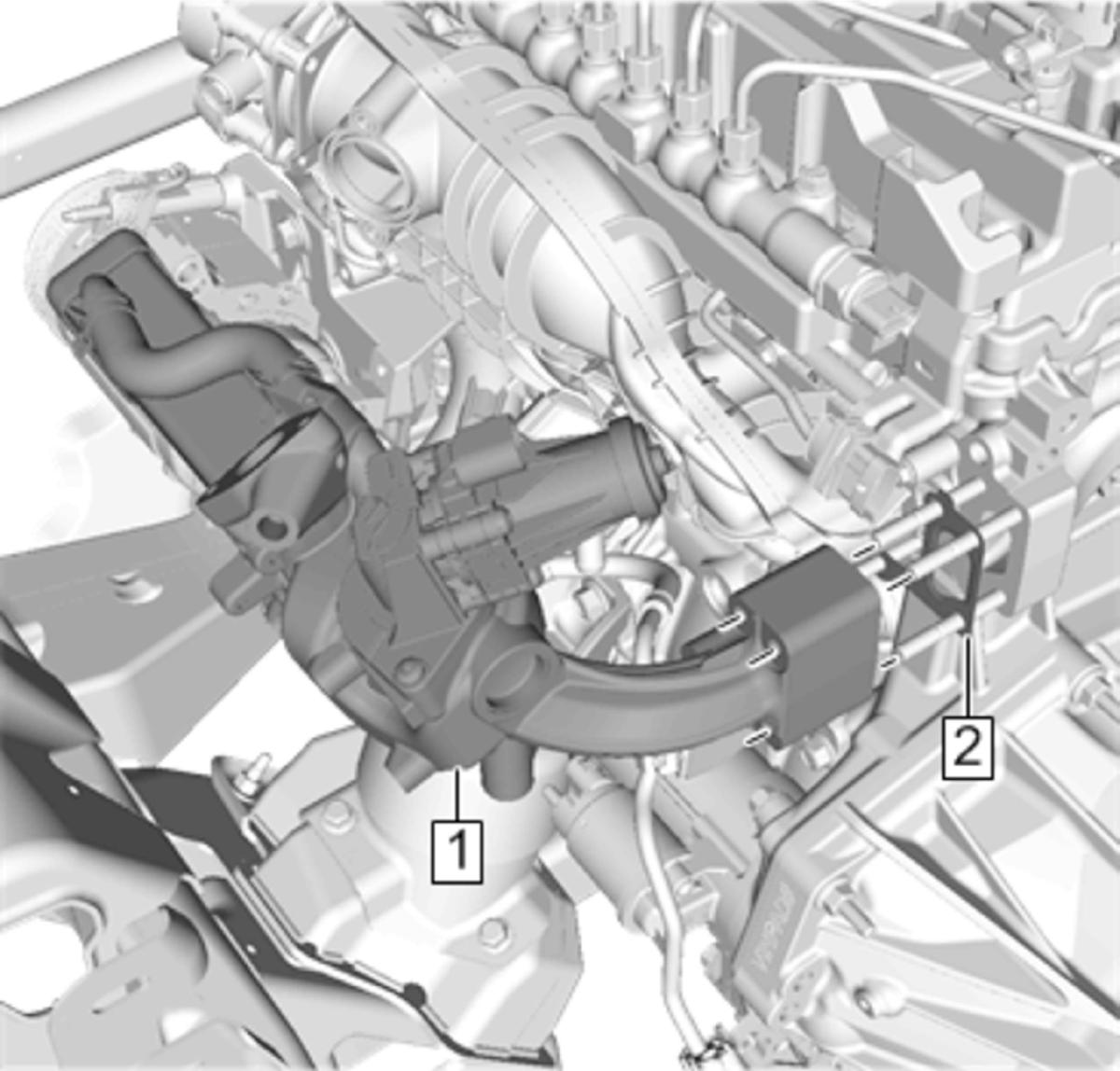

Install Exhaust Gas Recirculation Valve Gasket

Courtesy of

NOTE:
Install a NEW gasket.
Install Exhaust Gas Recirculation Valve
NOTE:
Connect the exhaust gas recirculation coolant feed hose and clamp to the exhaust gas recirculation valve during installation.

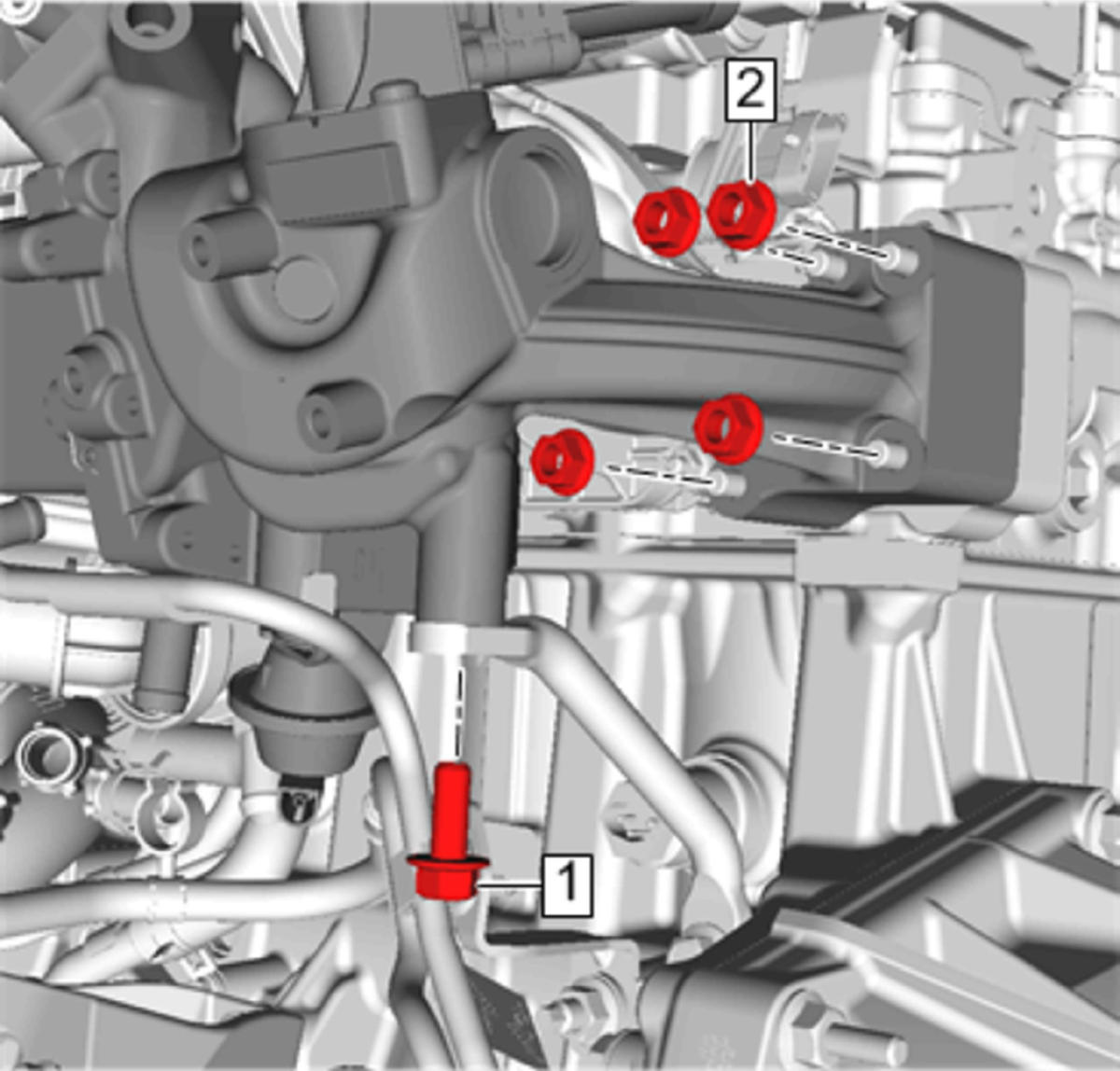

Install Exhaust Gas Recirculation Valve Nut and tighten 25 N.m. (18 lb ft)

Courtesy of

CAUTION:
Refer to Fastener Caution .

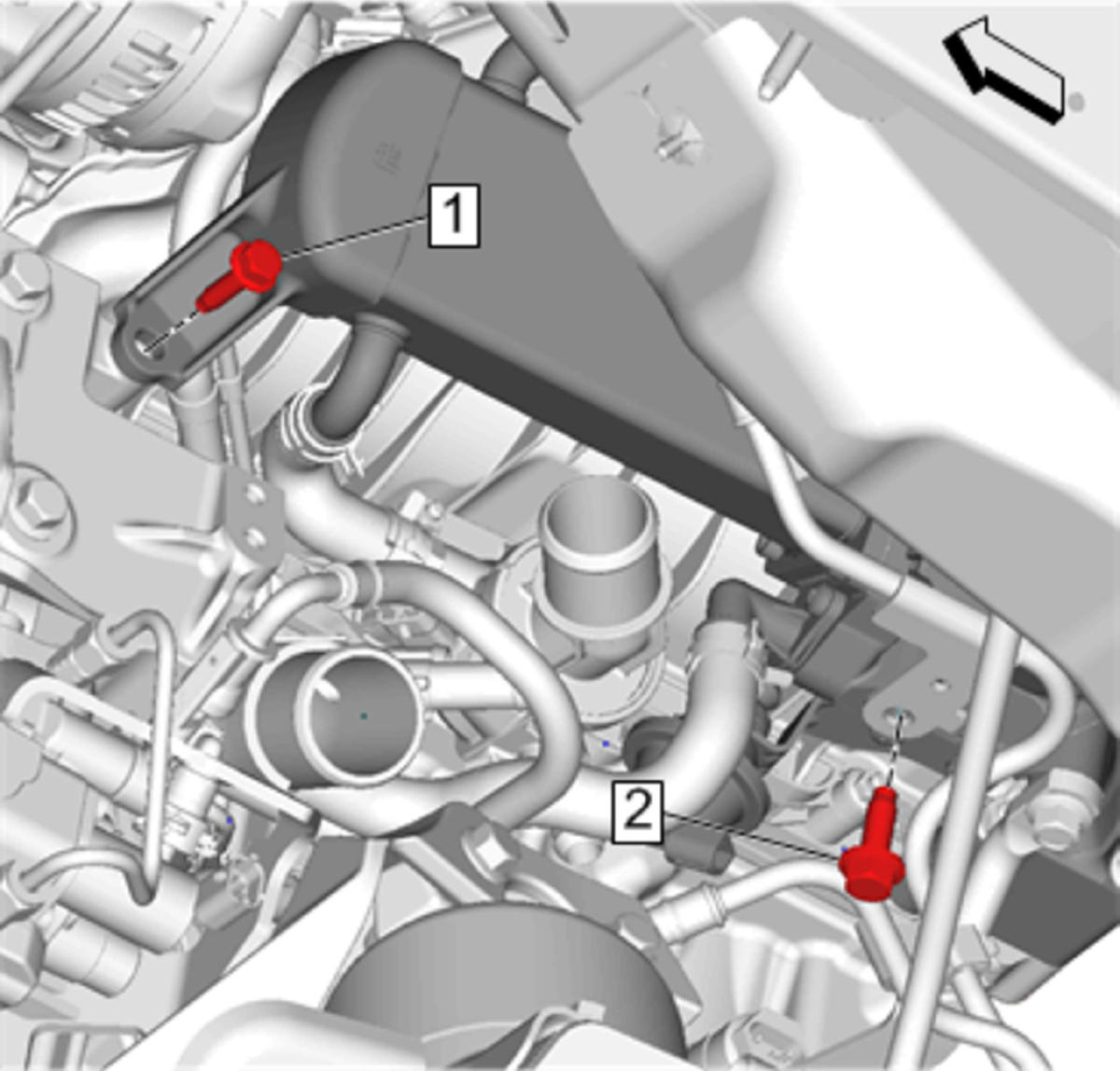

Install Exhaust Gas Recirculation Valve Brace Bracket Bolt and tighten 58 N.m. (43 lb ft)
Install Exhaust Gas Recirculation Cooler Bolt and tighten 25 N.m. (18 lb ft)

Courtesy of
Install Fuel Injection Fuel Rail Stop Bolt and tighten - Refer to Fuel Pump Fuel Return Hose Replacement

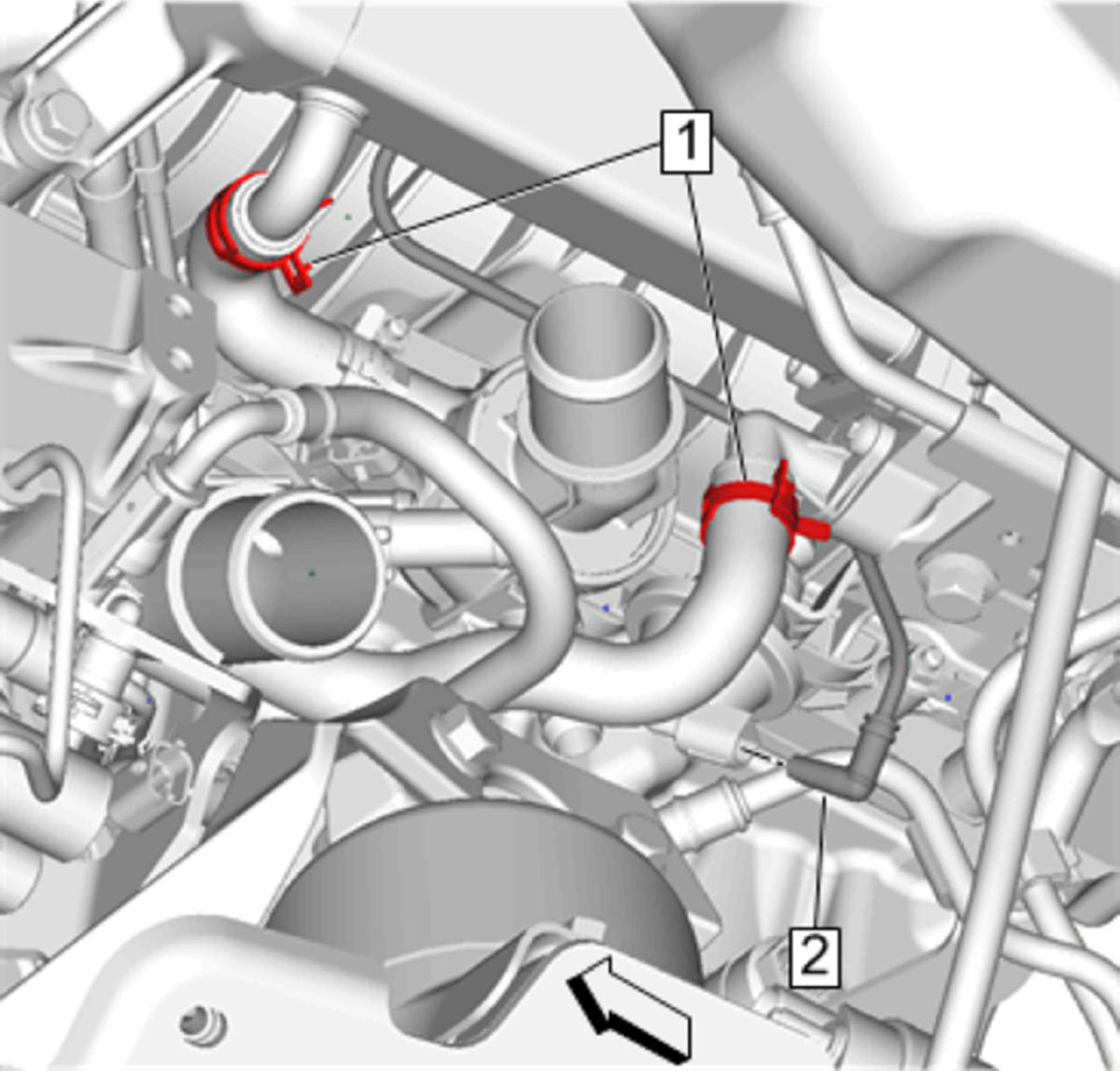

Connect Exhaust Gas Recirculation Valve Vacuum Pipe

Courtesy of

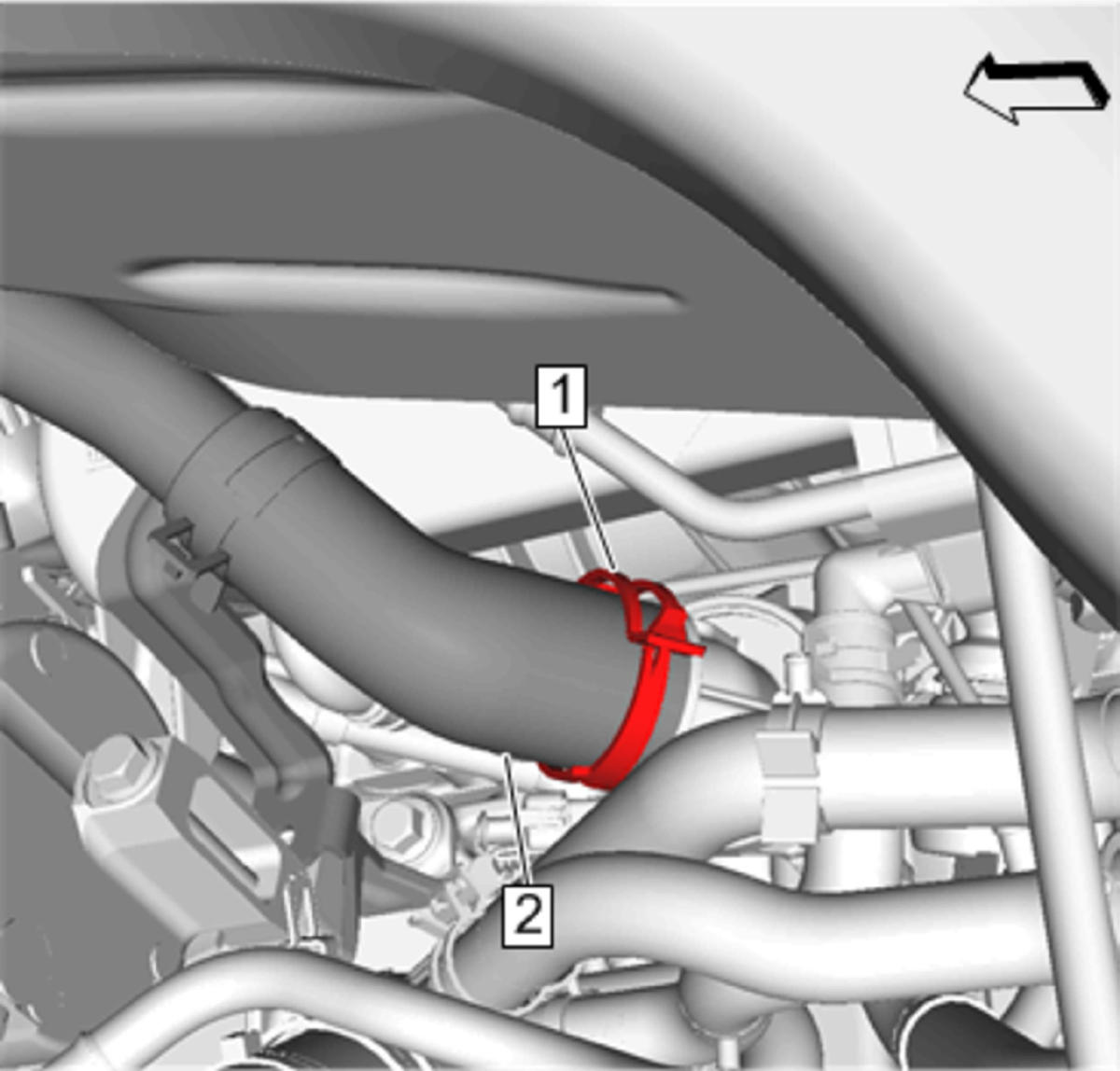

Engage Exhaust Gas Recirculation Cooler Hose Clamp Refer to Hose Clamp Replacement Guidelines - Spring Type
Install Oil Level Indicator and Tube Refer to Oil Level Indicator Tube Replacement

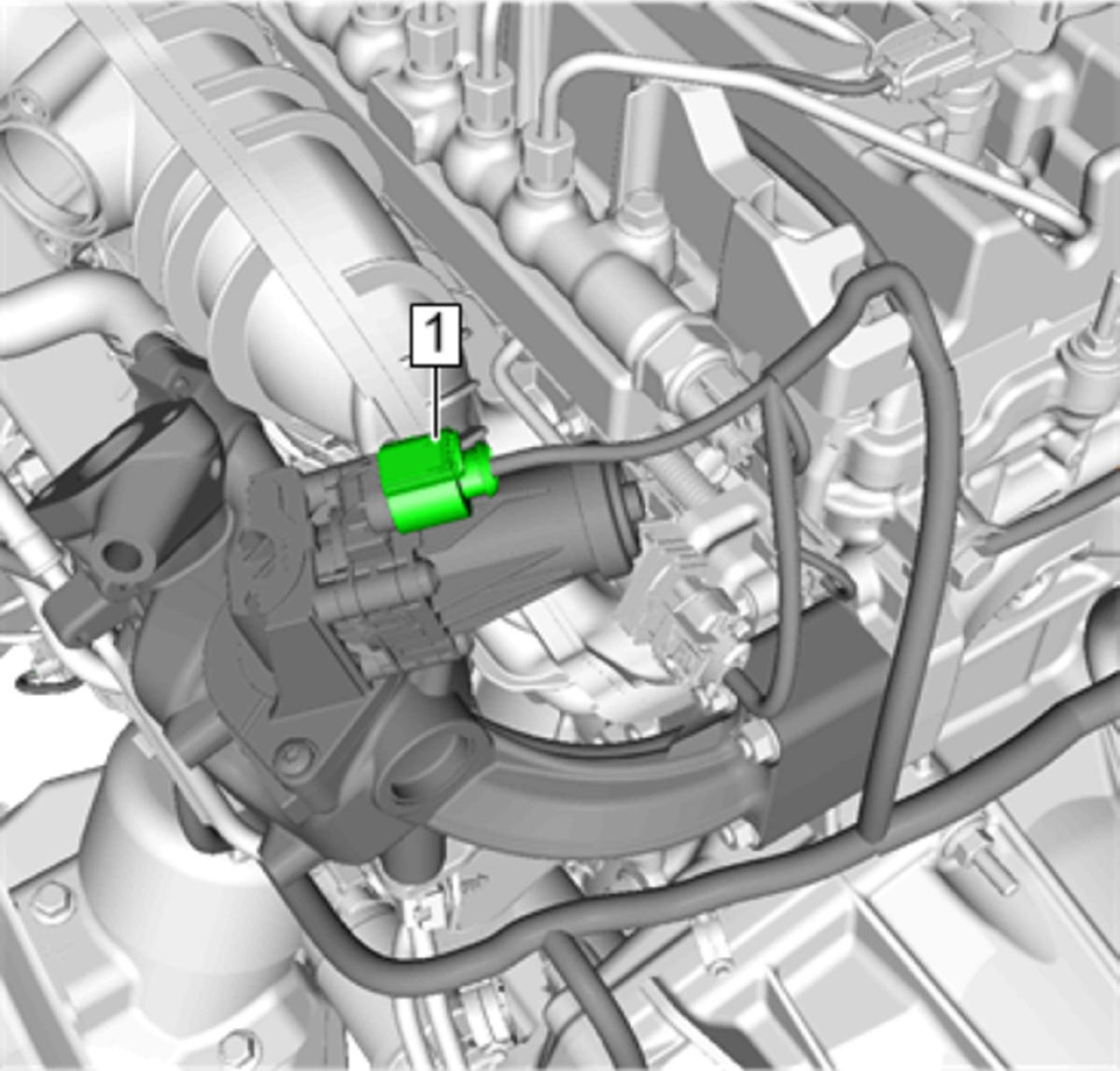

Connect Exhaust Gas Recirculation Valve Electrical Connector

Courtesy of

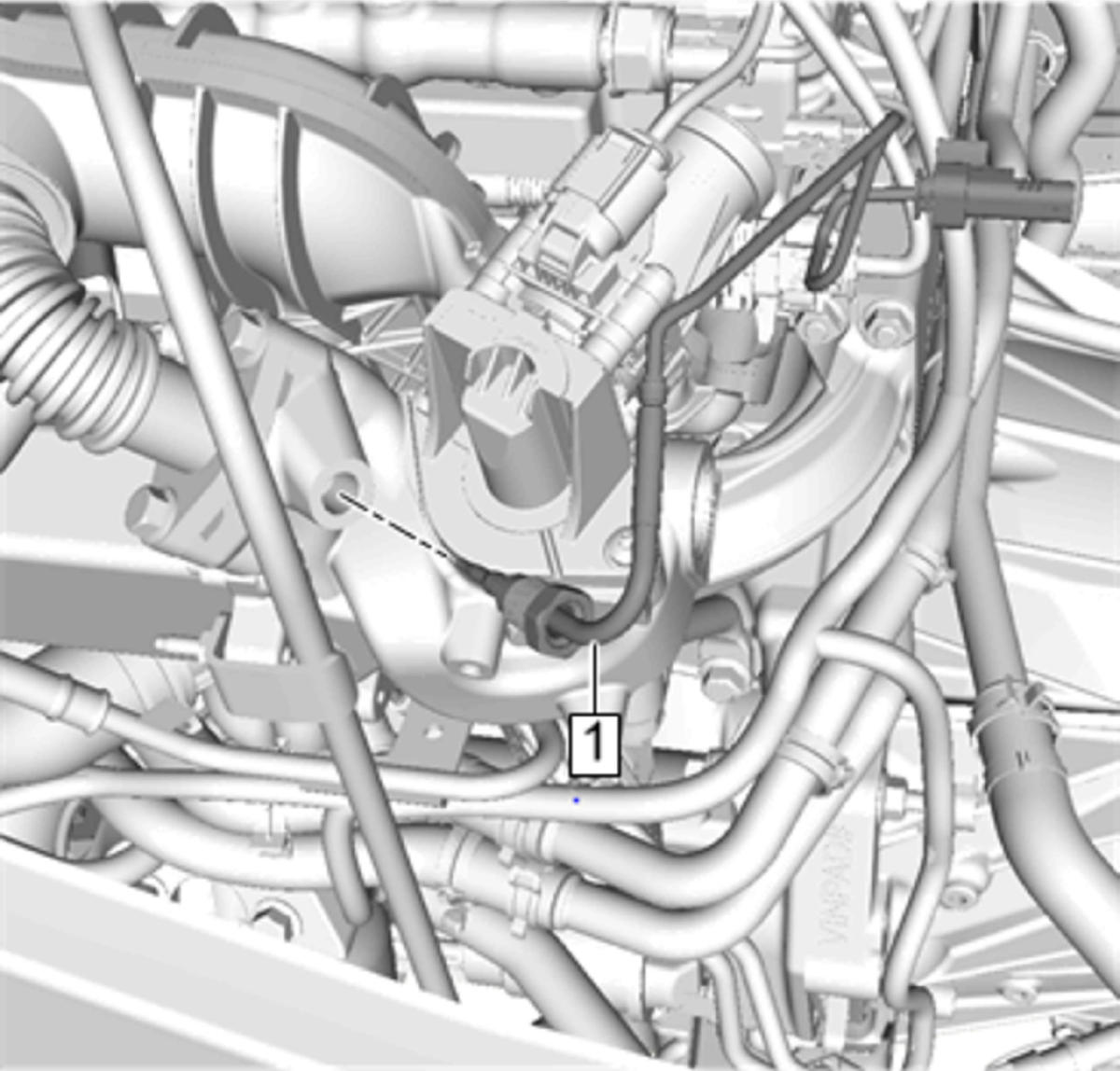

Install Exhaust Gas Recirculation Cooler Temperature Sensor-Position 2 Refer to Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 2

Courtesy of
Install Exhaust Gas Recirculation Pipe Refer to Exhaust Gas Recirculation Pipe Replacement

Courtesy of
Install Radiator Inlet Hose Refer to Radiator Inlet Hose Replacement (LWN)

Courtesy of
