Installation Procedure

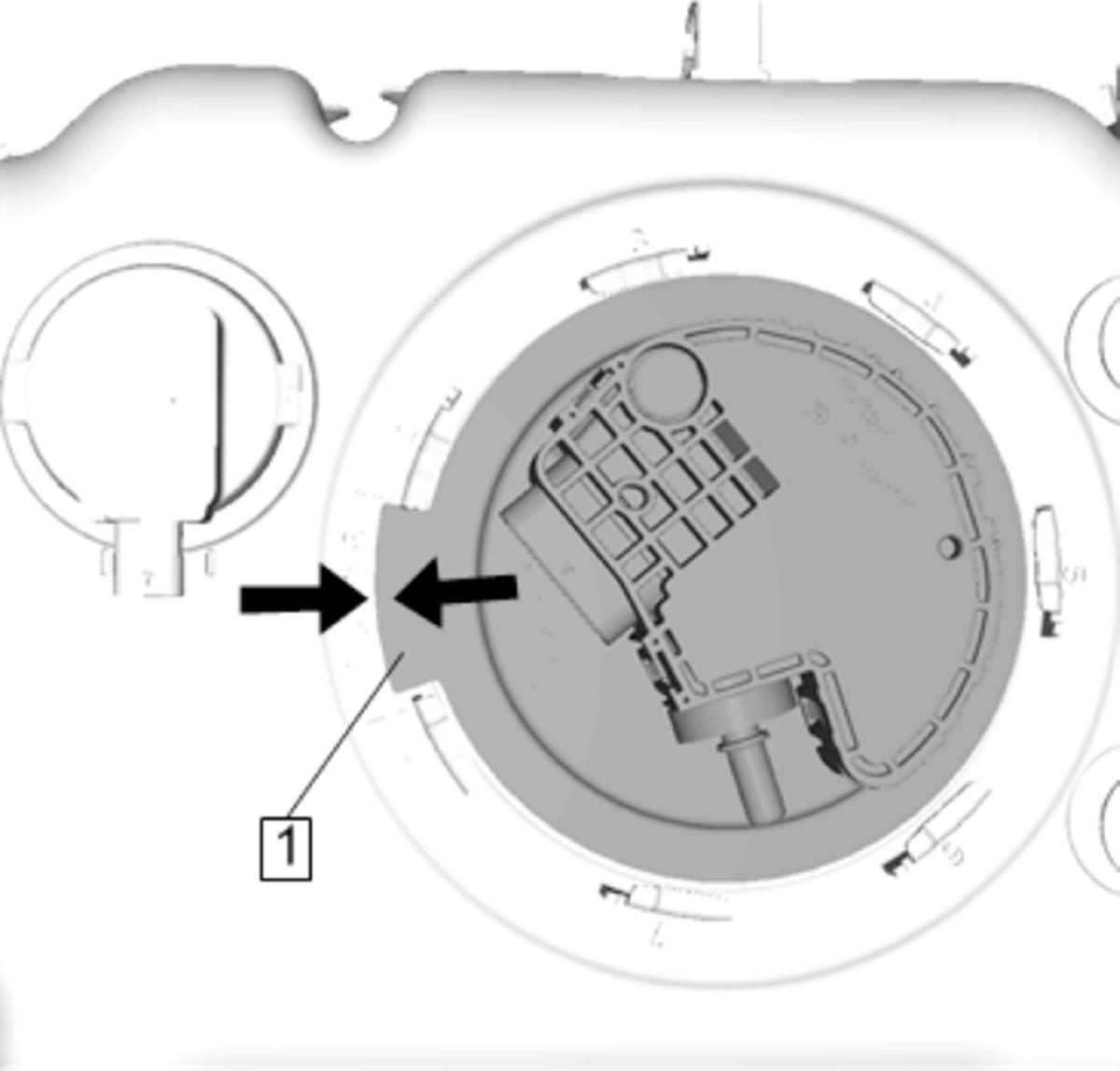

Line up the emission reduction fluid supply pump module at the arrows.

Courtesy of

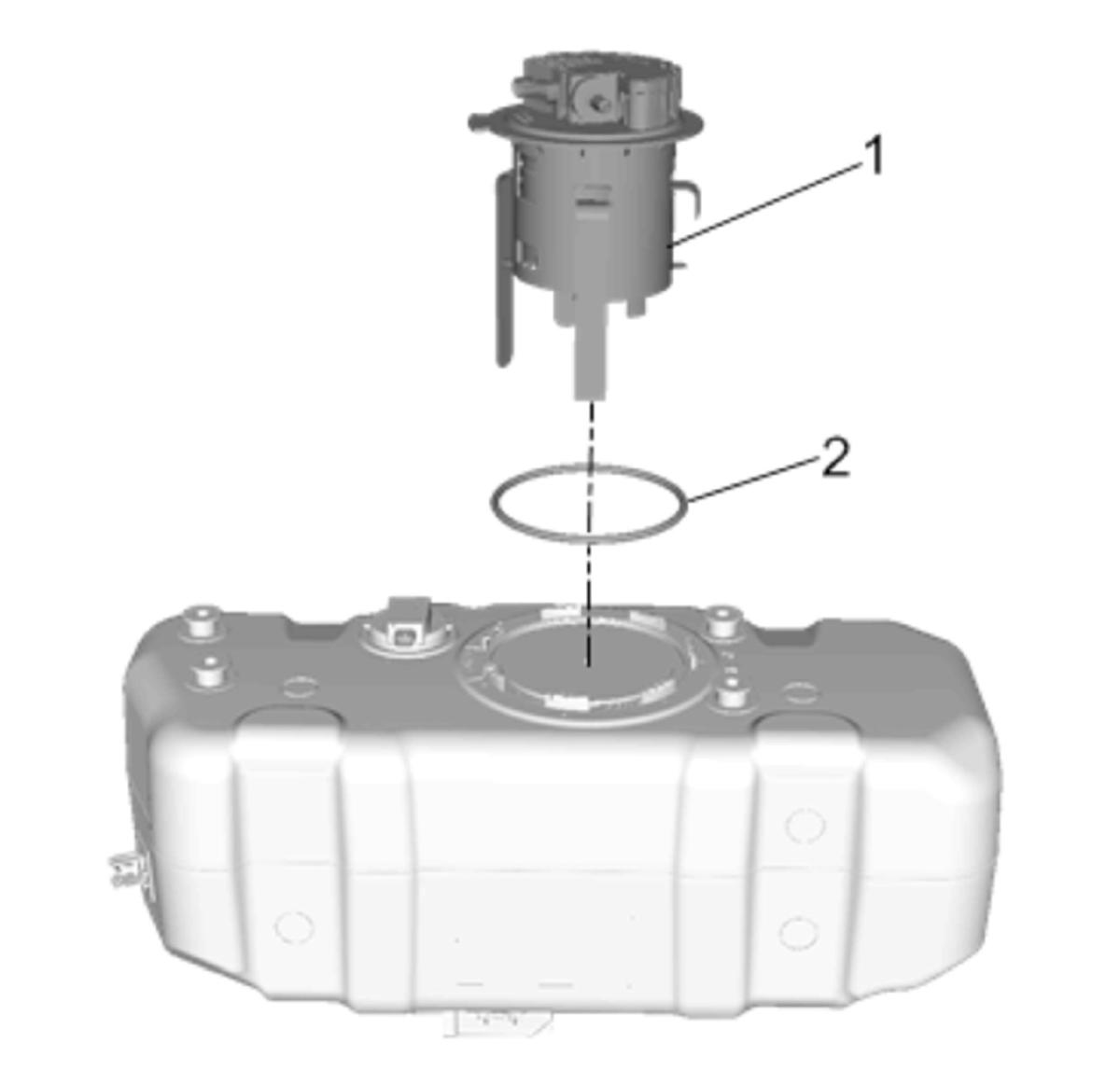

Install NEW O-Ring

Courtesy of
Install Emission Reduction Fluid Supply Pump Module

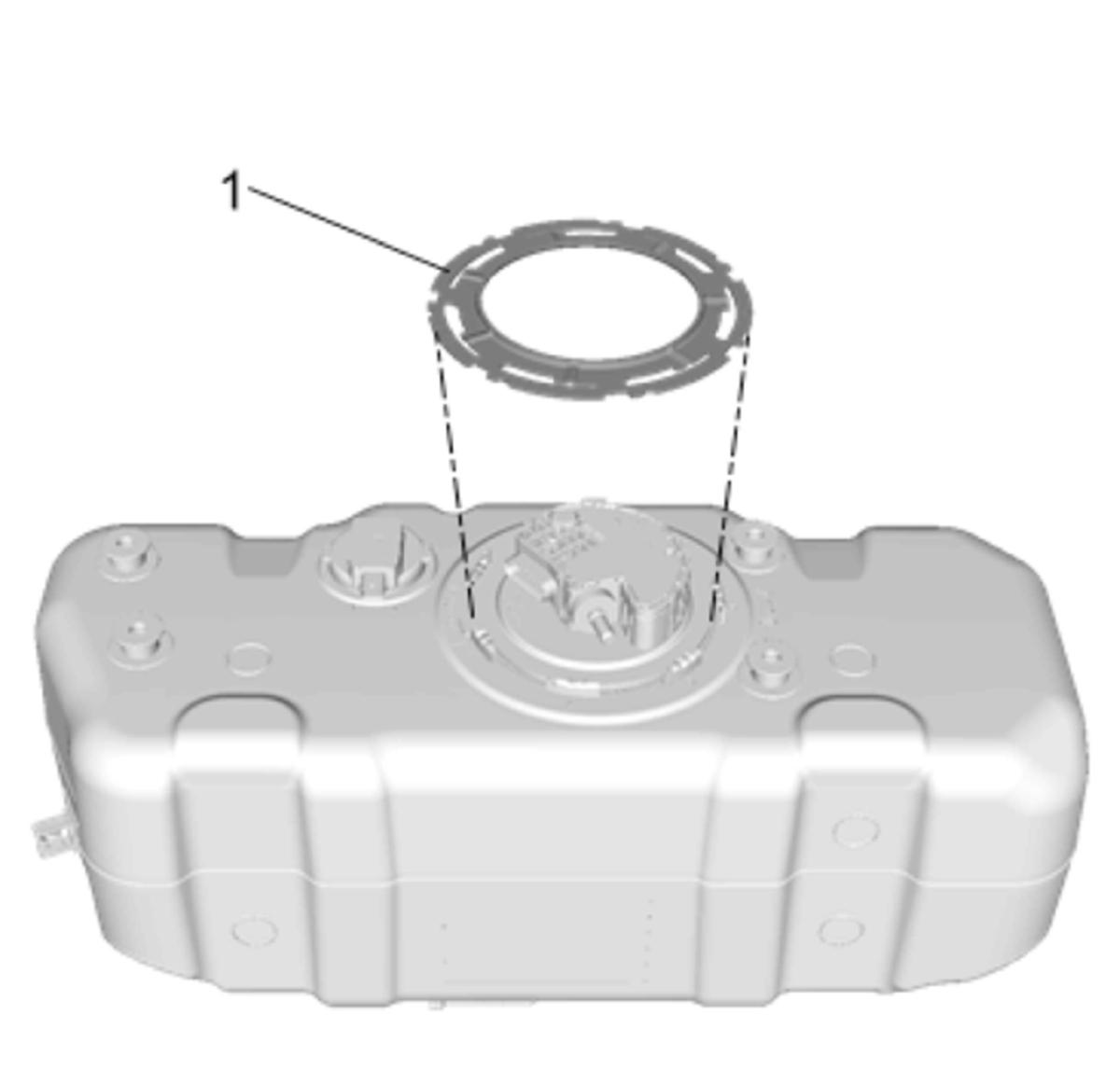

Install Lock Ring - use CH 45722 Fuel Sender Lock Ring Wrench

Courtesy of

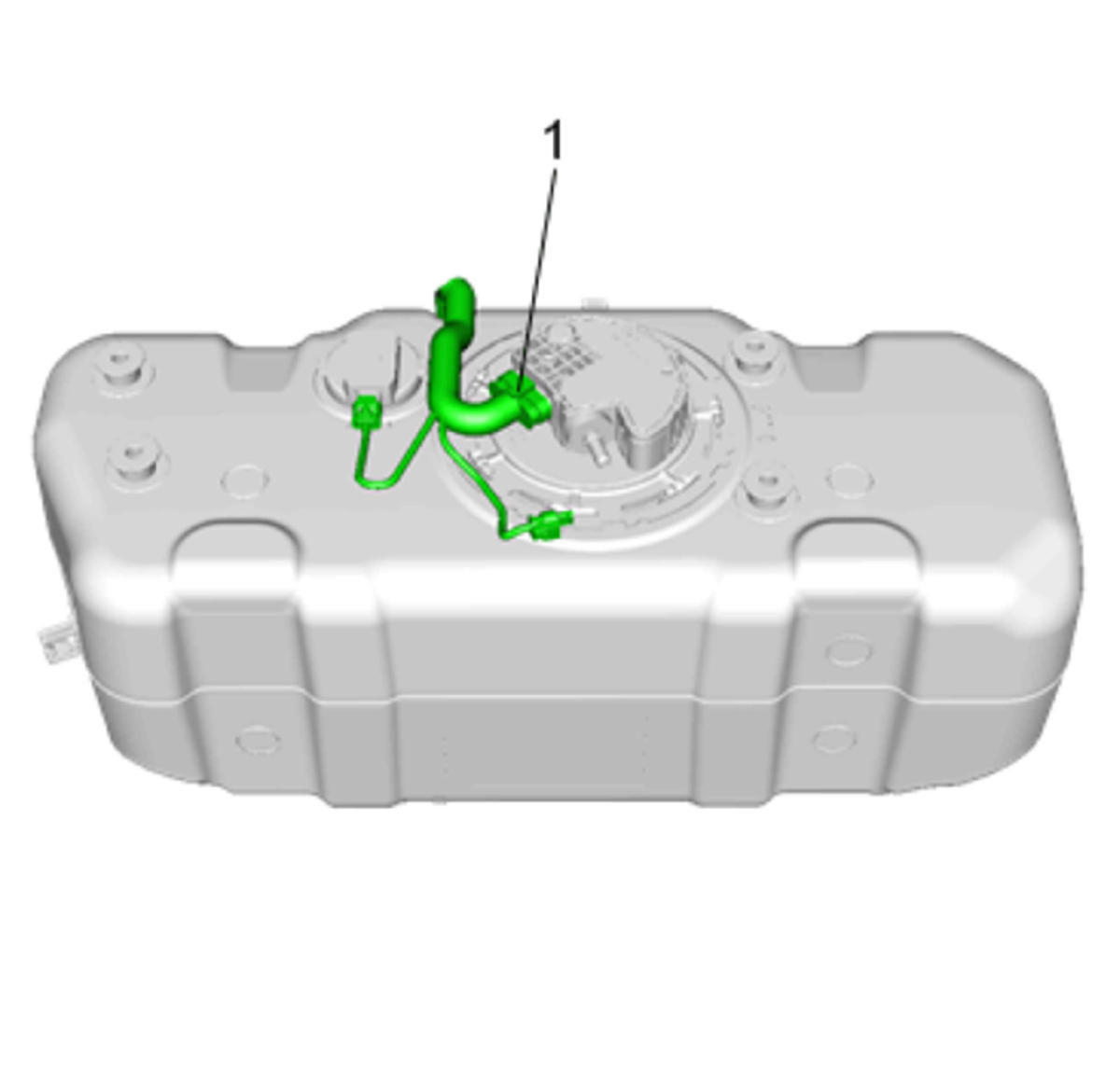

Connect Emission Reduction Fluid Pump Module Wiring Harness

Courtesy of
Install Emission Reduction Fluid Tank - Refer to Emission Reduction Fluid Tank Replacement (Short Wheel Base) or Emission Reduction Fluid Tank Replacement (Long Wheel Base)
