Installation Procedure

  1. Install Emission Reduction Fluid Pump Module Wiring Harness

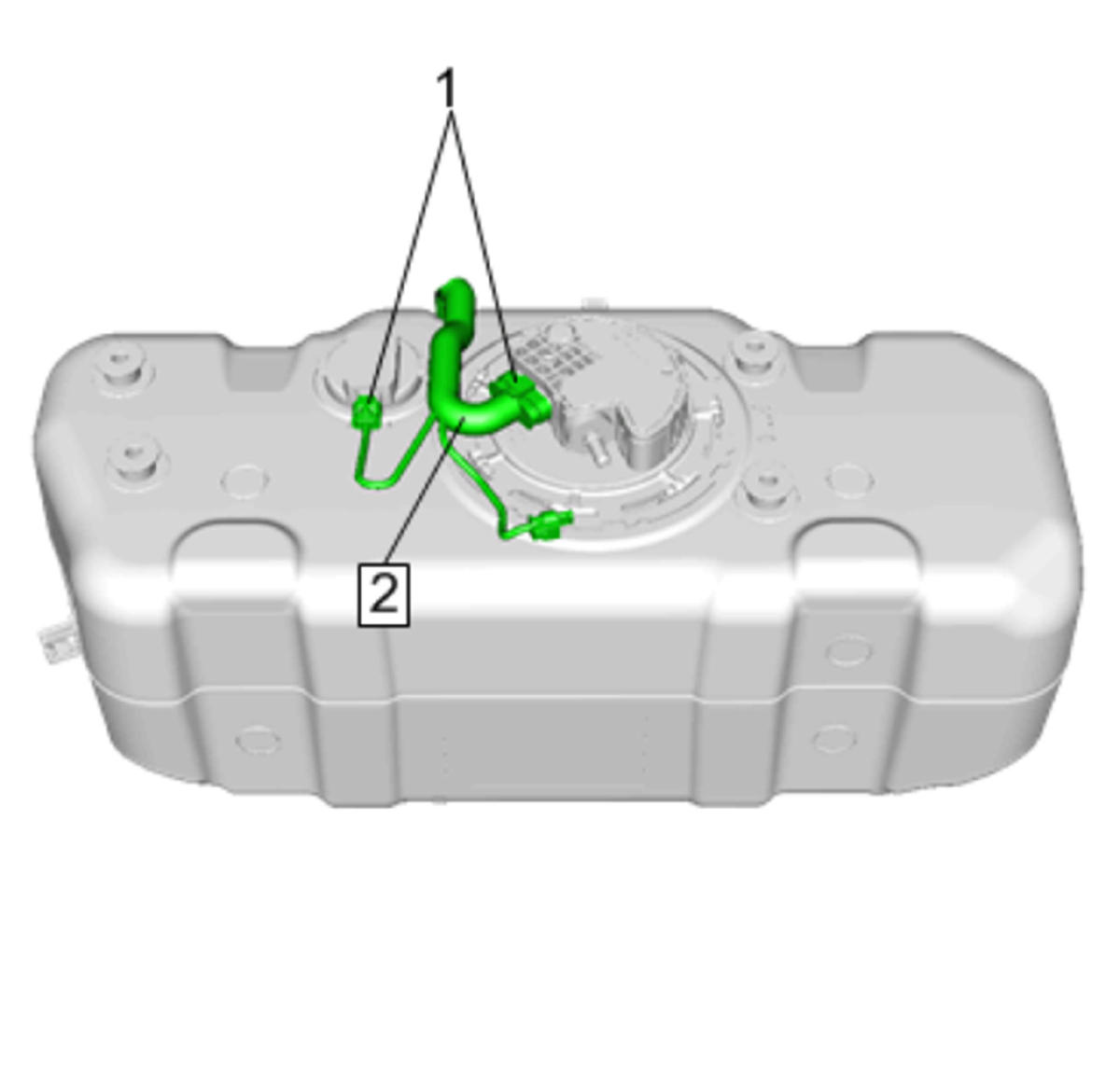

    GM4603817Courtesy of
  2. Connect Emission Reduction Fluid Pump Module Wiring Harness Connector [2x]
  3. Install Emission Reduction Fluid Pump Module Wiring Harness

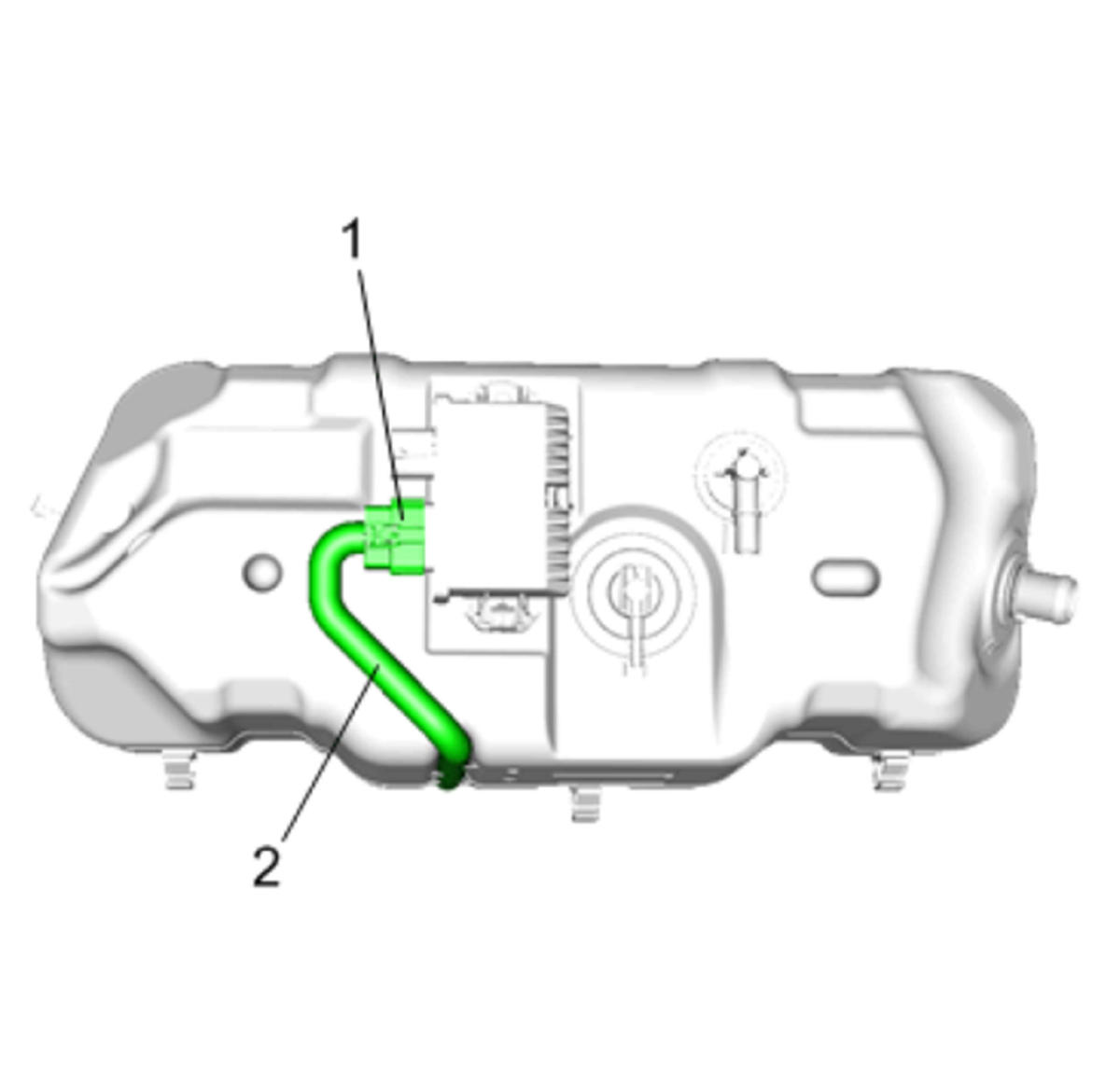

    GM4603811Courtesy of
  4. Connect Emission Reduction Fluid Pump Module Wiring Harness Connector
  5. Install Emission Reduction Fluid Tank - Refer to Emission Reduction Fluid Tank Replacement (Short Wheel Base)  or Emission Reduction Fluid Tank Replacement (Long Wheel Base)
