Air Cleaner Element Replacement

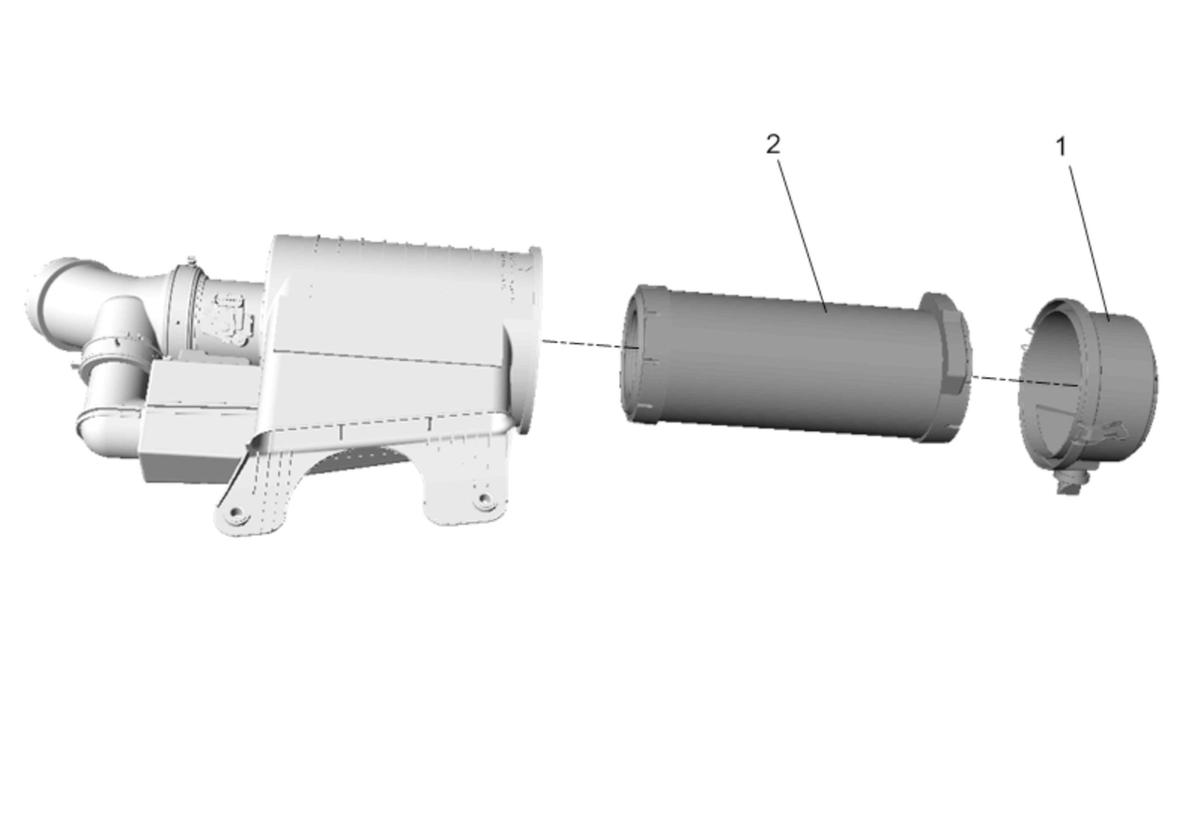

Fig 1: Air Cleaner Element
GM4601470Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Refer to Air Cleaner Assembly Replacement
1 Air Cleaner Housing Cover
2 Air Cleaner Element
