Air Cleaner Assembly Replacement

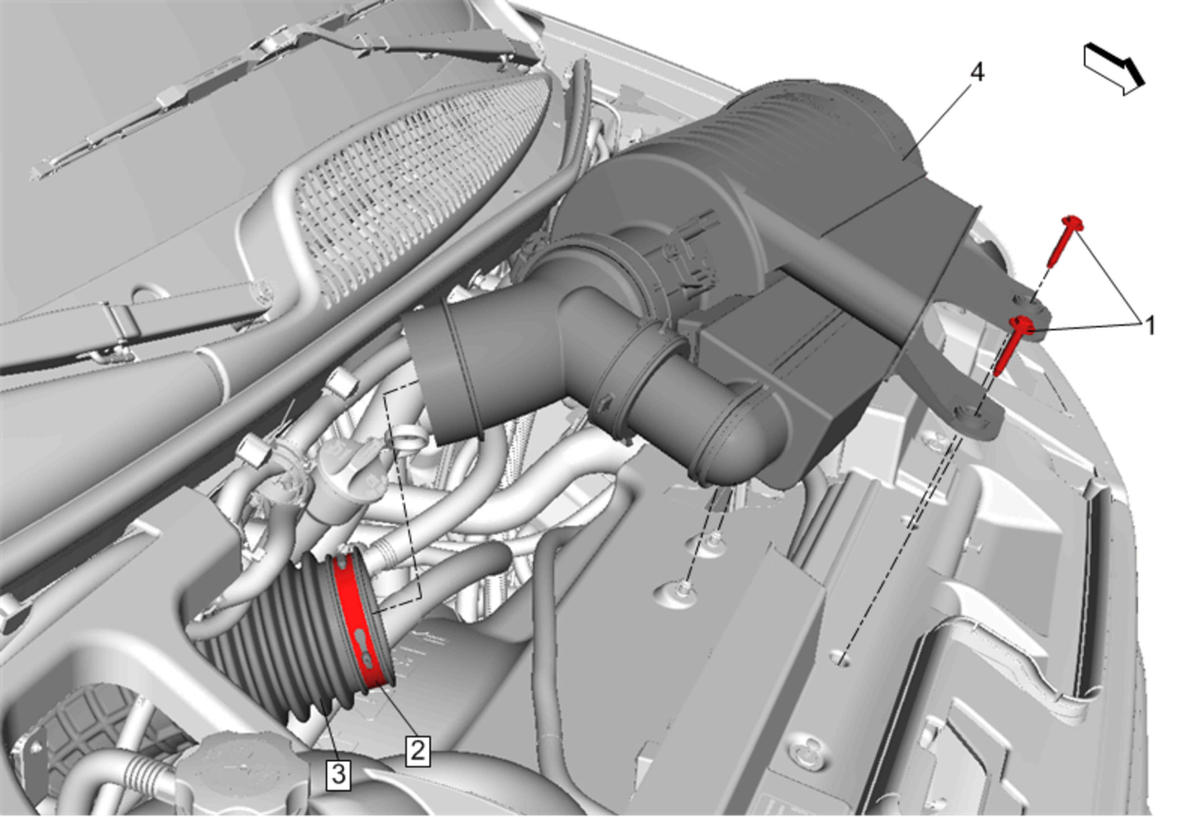

Fig 1: Air Cleaner Assembly
GM4601468Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Bolt [2x]
CAUTION:

Refer to Fastener Caution .


tighten
9 N.m. (80 lb in)
2 Air Cleaner Outlet Duct Clamp
tighten
4 N.m. (35 lb in)
3 Air Cleaner Outlet Duct
4 Air Cleaner Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Remove the air cleaner housing from the retainers.
  3. Transfer parts as necessary.
