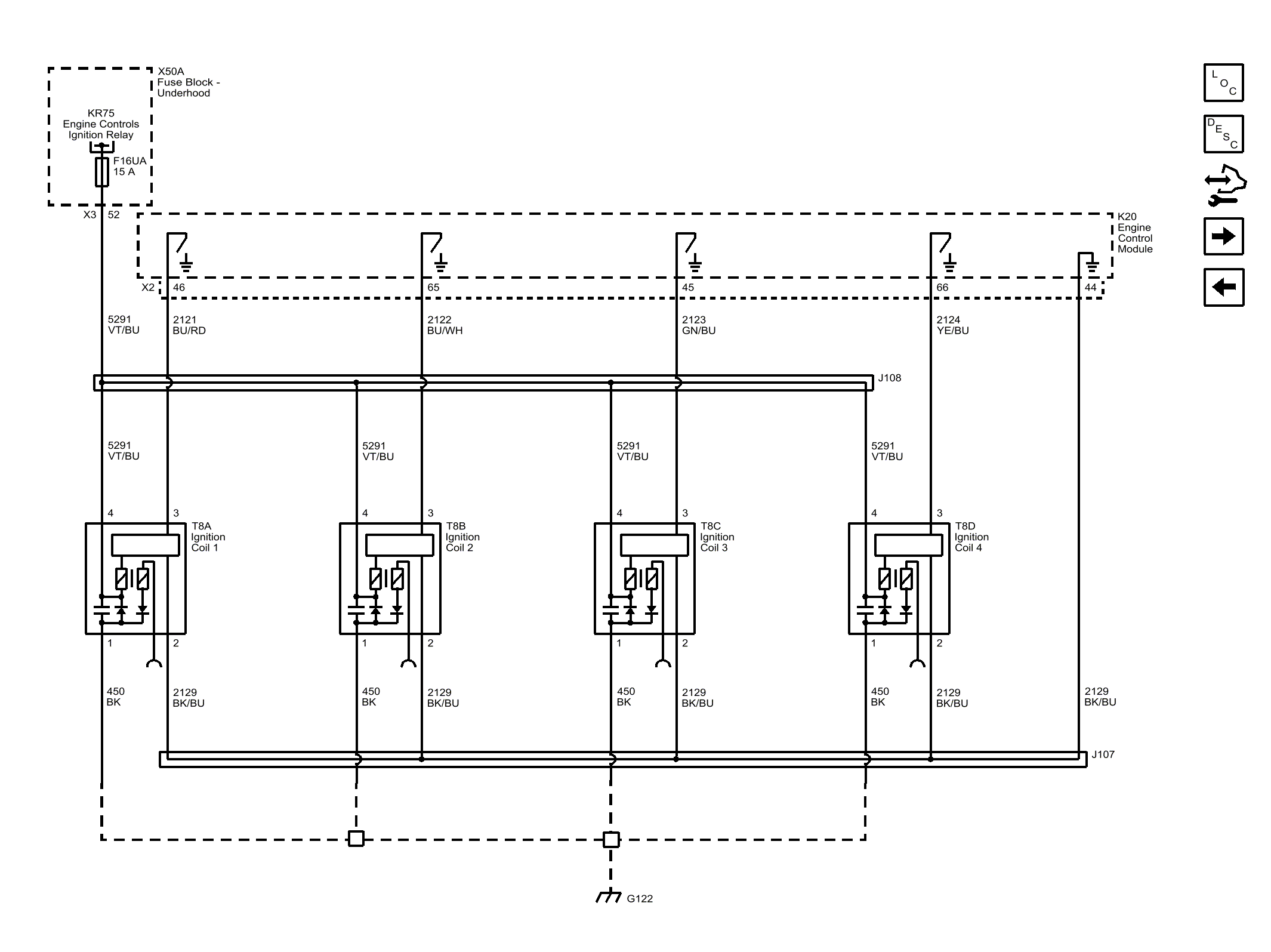

Home >> Chevrolet >> 2017 >> Cruze LS, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 1.4L (LE2) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Ignition Controls - Ignition System
