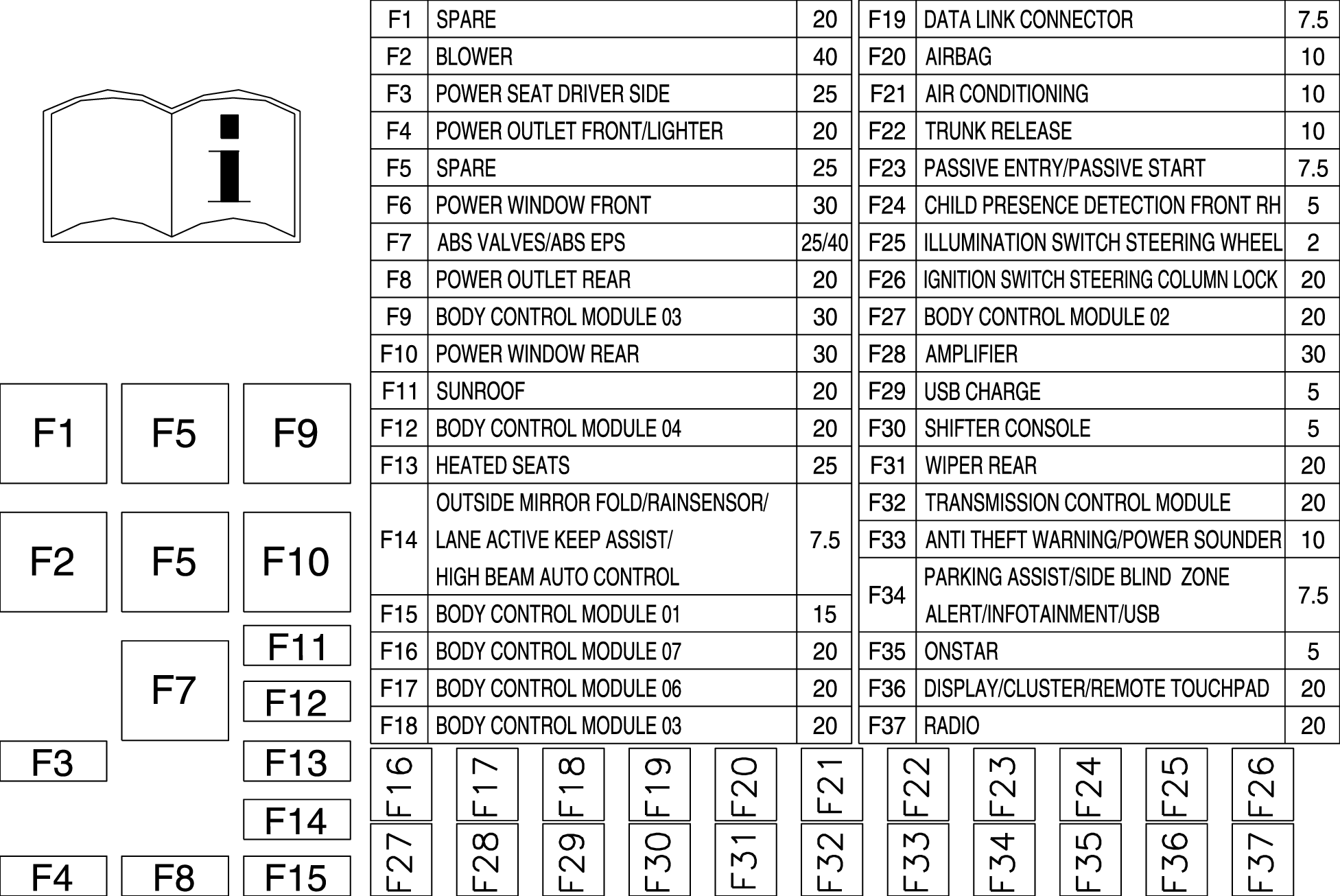

X51A Fuse Block - Instrument Panel Label

Fig 1: X51A Fuse Block - Instrument Panel Label

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	F1	F1DA	30A	S79RR Window - Switch Right Rear
2	F2	F2DA	40A	K8 Blower Motor Control Module
3	F3	F3DA Circuit Breaker	-	S64D Seat Adjuster Switch - Driver
4	F4	F4DA	20A	X80 Accessory Power Receptacle
5	F5	F5DA	25A	S79P Window Switch - Passenger
6	F6	F6DA	25A	M74D Window Motor - Driver (AXG) S79D Window Switch - Driver (AEC)
7	F7	F7DA	25A	K17 Electronic Brake Control Module
8	F8	F8DA	5A	K56 Serial Data Gateway Module
9	F9	F9DA	15A	K9 Body Control Module
10	F10	F10DA	20A	S79LR Window Switch - Left Rear
11	F11	F11DA	20A	M69 Sunroof Motor (CF5)
12	F12	F12DA	20A	K9 Body Control Module
13	F13	F13DA	25A	K29 Seat Heating Control Module
14	F14	F14DA	7.5A	S52 Outside Rearview Mirror Switch K109 Frontview Camera Module
15	F15	F15DA	15A	K9 Body Control Module
16	F16	F16DA	20A	K9 Body Control Module
17	F17	F17DA	20A	K9 Body Control Module
18	F18	F18DA	20A	K9 Body Control Module
19	F19	F19DA	7.5A	X84 Data Link Connector
20	F20	F20DA	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
21	F21	F21DA	10A	K33 HVAC Control Module
22	F22	F22DA	10A	KR95B Rear Compartment Lid Unlatch Relay
23	F23	F23DA	7.5A	K84 Keyless Entry Control Module
24	F24	F24DA	5A	K85 Passenger Presence Module
25	F25	F25DA	2A	S70L Steering Wheel Controls Switch - Left S70R Steering Wheel Controls Switch - Right
26	F26	F26DA	2A	S39 Ignition Switch
27	F27	F27DA	20A	K9 Body Control Module
28	F28	F28DA	30A	T3 Audio Amplifier
29	F29	F29DA	5A	X92B USB Receptacle - Rear Seat
30	F30	F30DA	5A	S3 Transmission Shift Lever
31	F31	F31DA	20A	M45 Rear Wiper Motor
32	F32	F32DA	20A	Q8 Control Solenoid Valve Assembly (MNU)
33	F33	F33DA	10A	T22 Mobile Device Wireless Charger Module X81 Accessory Power Receptacle - 110V AC
34	F34	F34DA	7.5A	K41 Front and Rear Parking Assist Control Module K74 Human Machine Interface Control Module B218L Side Object Sensor Module - Left B218R Side Object Sensor Module - Right
35	F35	F35DA	5A	K73 Telematics Communication Interface Control Module
36	F36	F36DA	10A	A26 HVAC Controls P16 Instrument Cluster P17 Info Display Module
37	F37	F37DA	20A	A11 Radio
Relays
KR168 Relay Assembly - Instrument Panel Fuse Block
Note: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the KR168 Relay Assembly - Instrument Panel Fuse Block
-	-	KR76 Retained Accessory Power Relay	-	Cigarette Lighter Receptacle Accessory Power Receptacle
-	-	KR95B Rear Compartment Lid Unlatch Relay	-	Rear Compartment Lid Latch
