Controlled/Monitored Subsystem References

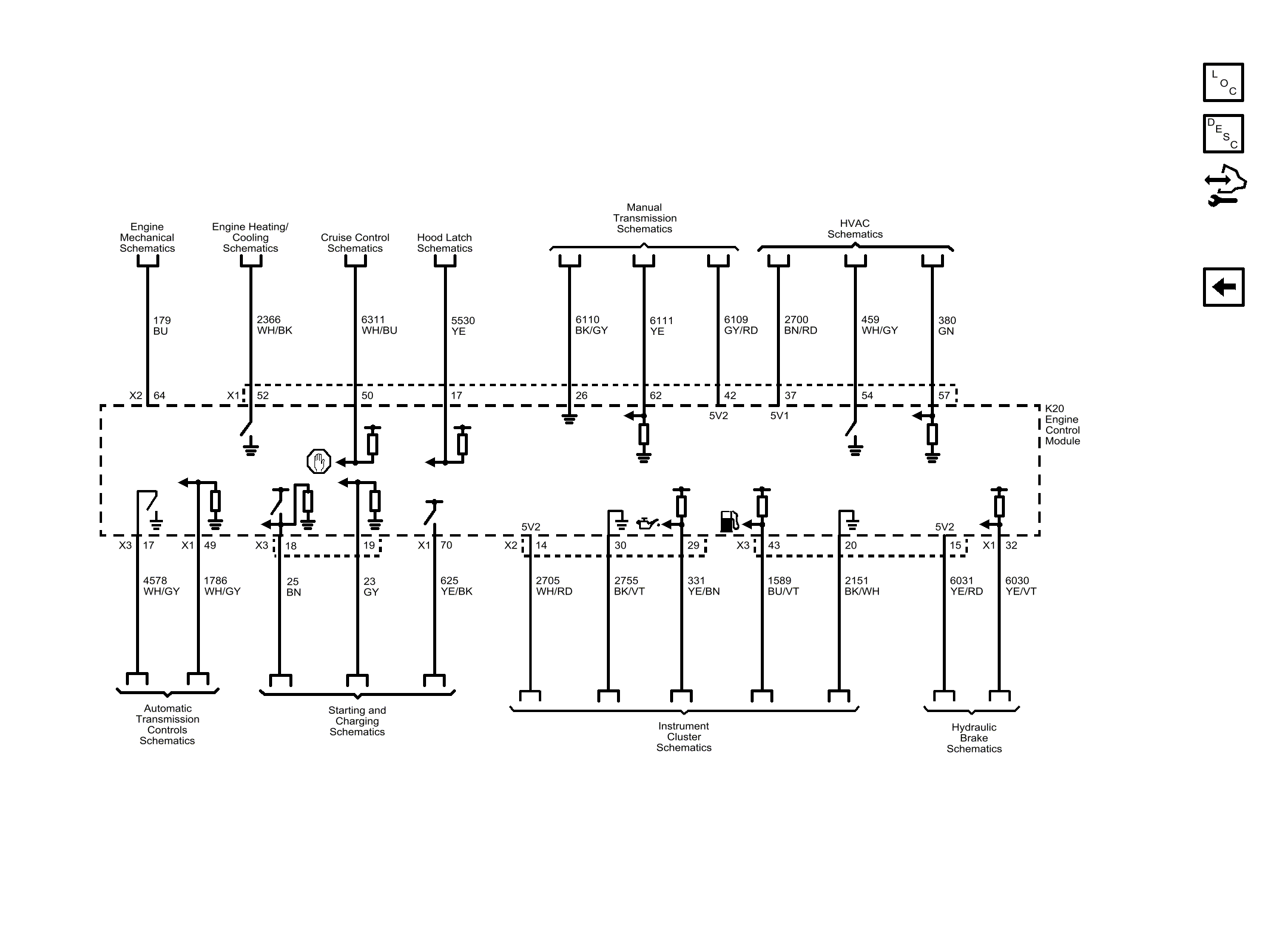

Fig 1: Controlled/Monitored Subsystem References

GM4334945

Courtesy of GENERAL MOTORS COMPANY
