Installation Procedure

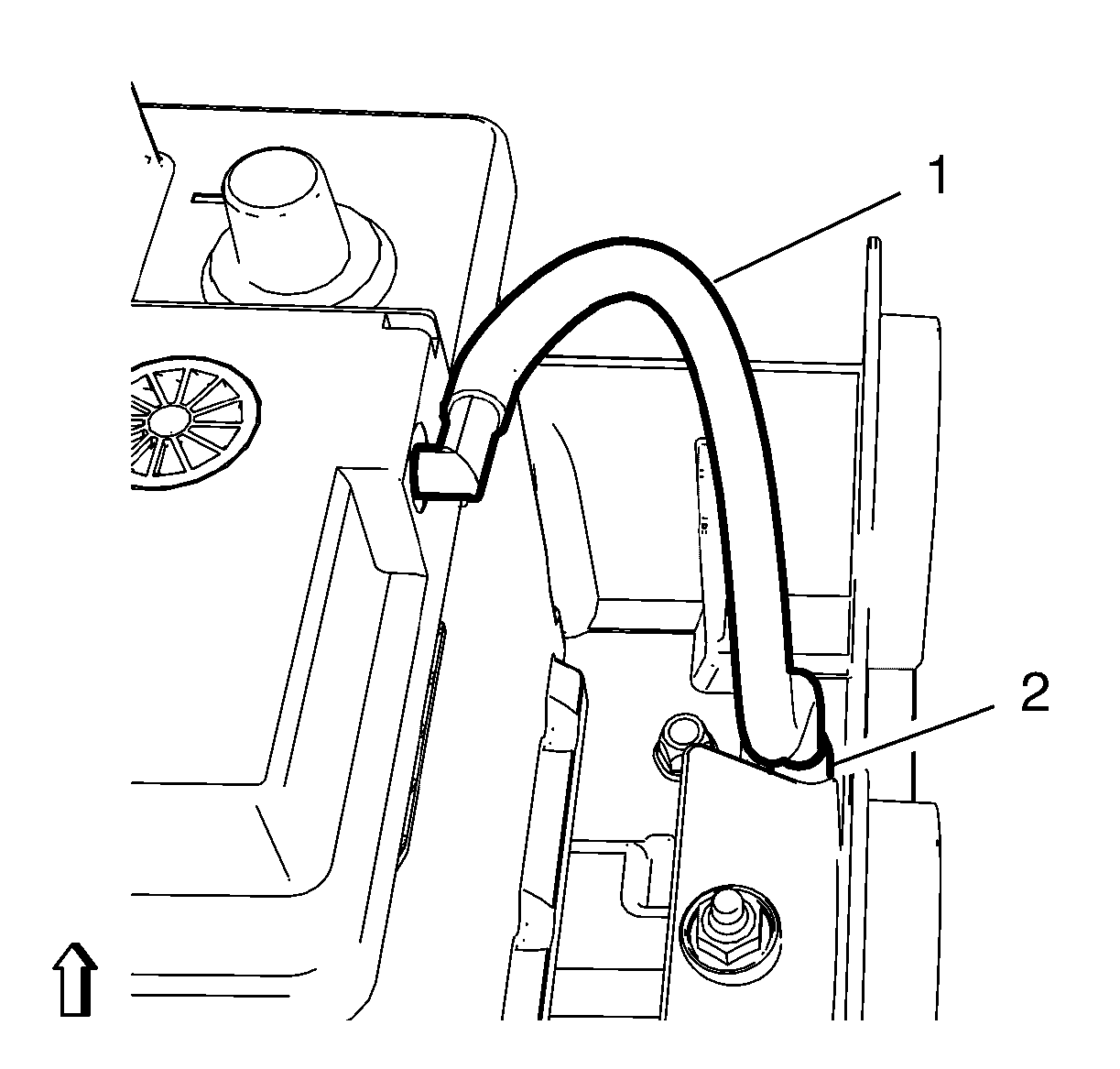

    Fig 1: Battery Vent Tube
    GM3684429Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery vent tube along with the grommet (2) to the battery tray.
  2. Install the battery tray along with the vent tube. Refer to:Battery Tray Replacement .
  3. Install the battery vent tube (1) to the battery.
  4. Install Battery Negative Cable Disconnection and Connection
