Front Compartment Splash Shield Replacement

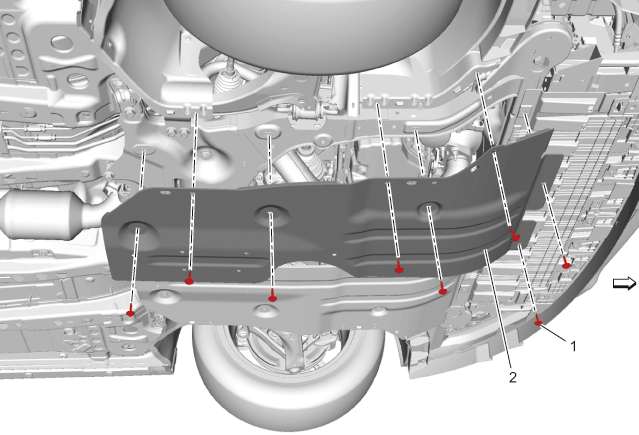

Fig 1: Front Compartment Splash Shield
GM4297791Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Compartment Splash Shield Bolt (Qty: 8)
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Compartment Splash Shield
